SC826 JBOD Chassis Manual
4-8
4-5 Installing Hard Drives
The SC826 JBOD chassis supports twelve hot-swappable 3.5" hard drives,
which may be removed without powering-down the system. The drives are mounted
in drive carriers to simplify their installation and removal from the chassis. These

Removing a Hard Drive Carrier
Removing Hard Drive Carriers
1. Press the release button on the drive tray. This extends the drive bay handle.
2. Use the handle to pull the drive out of the chassis.

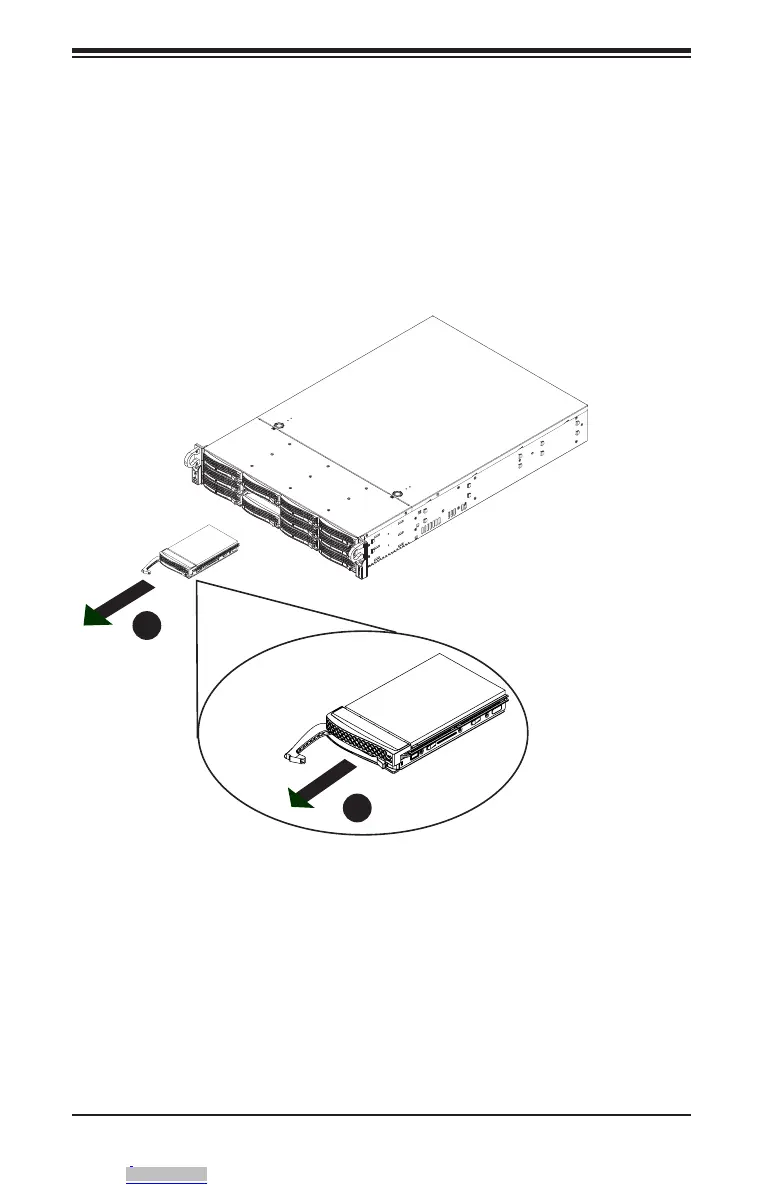

Figure 4-4. Removing a Hard Drive Carrier
