Chapter 4: Chassis Setup and Maintenance
4-4 Removing the Chassis Cover
Removing the Chassis Cover
1.
stable surface and remove the chassis cover.
2. Remove the two screws from the sides of the chassis cover.
3. Press the release tabs to remove the cover from the locked position. Press both
tabs at the same time.
4. Once the top cover is released from the locked position, slide the cover toward
the rear of the chassis.
5.
Caution: Except for short periods of time, do not operate the system without the
prevent overheating.

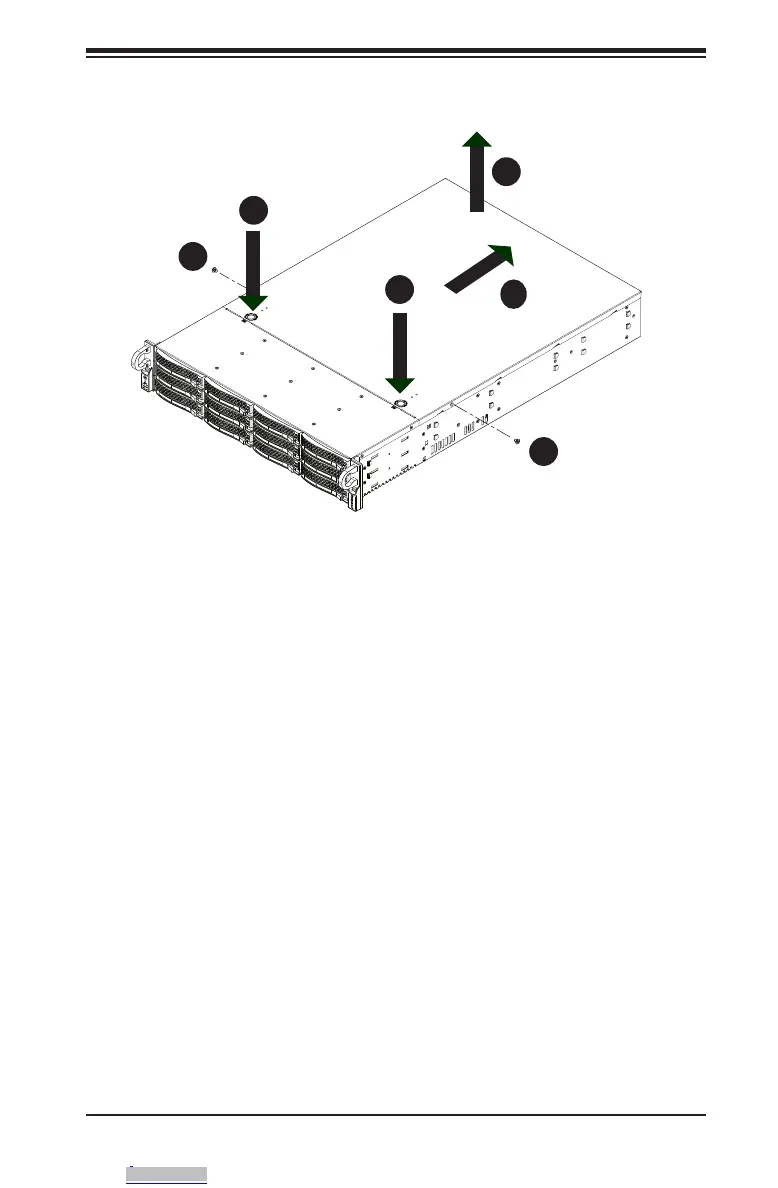

Figure 4-3. Removing the Chassis Cover
1
2
1
3
1
3
5
4
2
