SC826 JBOD Chassis Manual
Installing the Inner Rails on the Chassis
Installing the Inner Rails
1. Identify the left and right inner rails. They are labeled.
2. 
the side of the chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the quick release
bracket snaps into place, securing the rail to the chassis.
4. Optionally, you can further secure the inner rail to the chassis with a screw.
5. Repeat for the other inner rail.

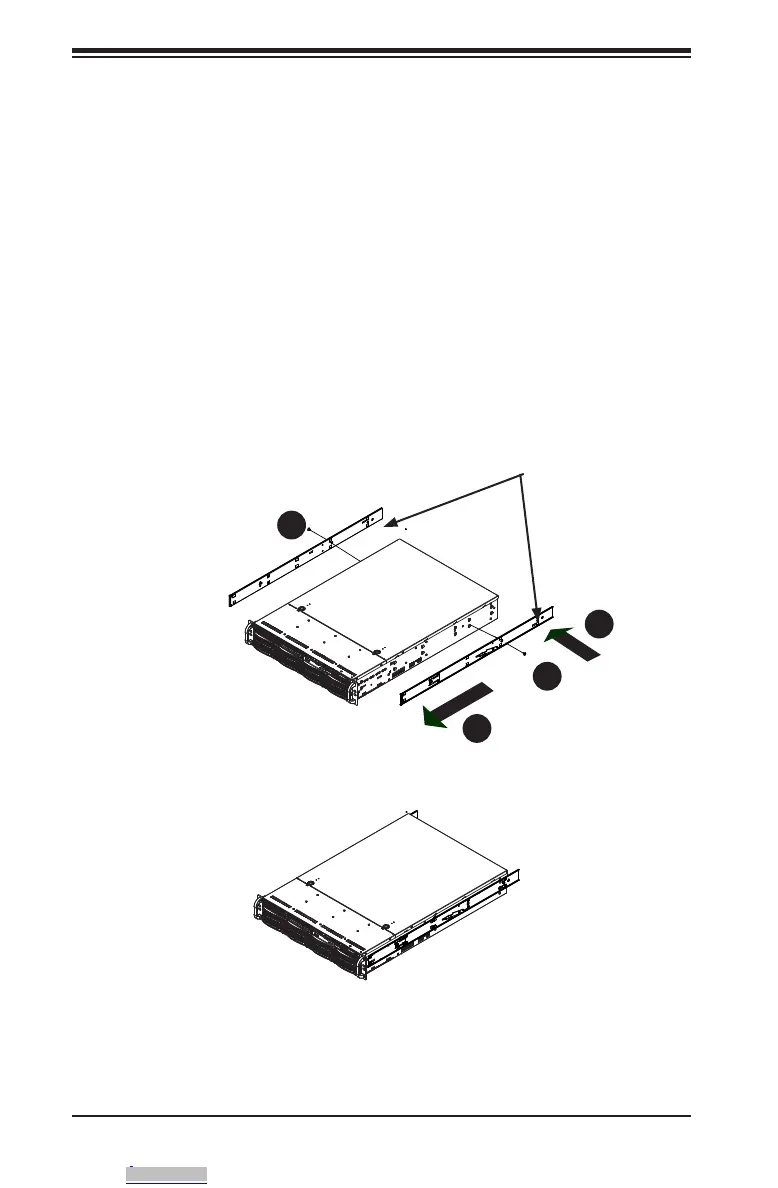

Figure 5-3. Installing the Inner Rails
Figure 5-4. Inner Rails Installed on the Chassis
1
3
1
4
1
4
1
2
Inner Rails
