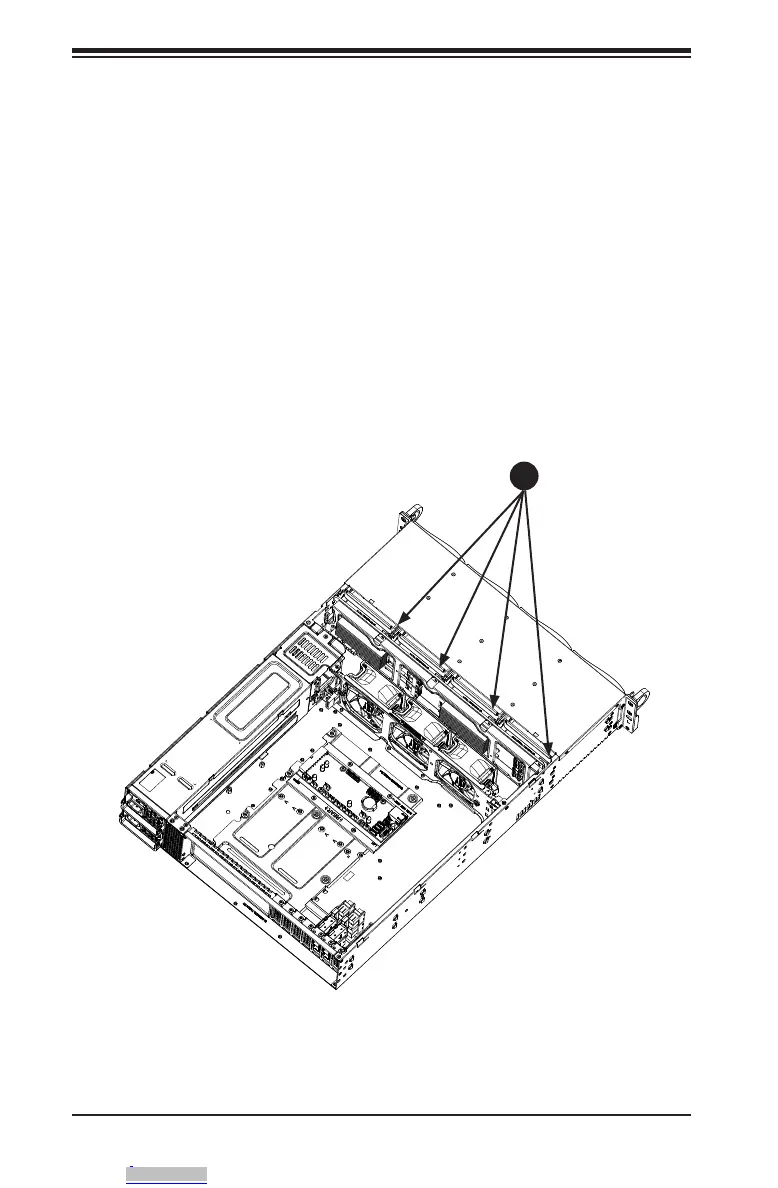

Figure 4-13. Removing the Screws at the Top of the Backplane
4-9 Backplane
The backplane is located behind the hard drives and in front of the front system
fans. In order to change jumper settings on the backplane, it may be necessary to
remove the backplane from the chassis.
Removing the Backplane from the Chassis
1. Power down the system as described in Section 4-2 and open the chassis cover.
2. Disconnect the cabling to the backplane.
3. Remove all of the hard drive trays from the front of the chassis.
4. Remove the four upper screws at the top of the backplane, indicated by the
arrows below.
4
