SC826 JBOD Chassis Manual
4-10
Installing a Hard Disk Drive
1. Remove the two screws connecting the dummy drive to the carrier.
2. Remove the dummy dirve from the carrier.
3.
work bench.
4. Slide the hard drive into the carrier with the printed circuit board side facing down.
5. Carefully align the mounting holes in the hard drive and the carrier. Make sure
6. Secure the hard drive using all six screws.
7. Replace the drive carrier into the chassis. Make sure to close the drive tray
using the drive carrier handle.
Hard Drive
Carrier
SAS/SATA
Hard Drive

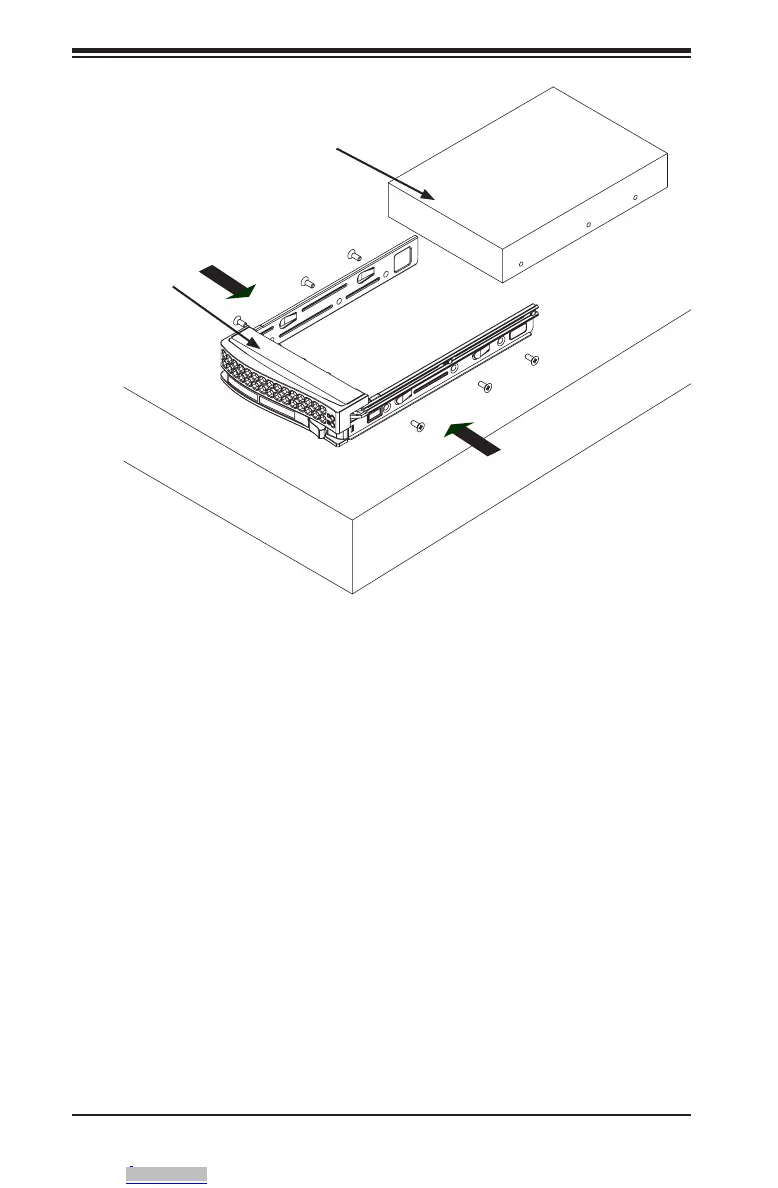

Figure 4-7. Installing a Drive into the Carrier
Use a hard, stable
surface when installing
the hard drive
