Supermicro Superserver - Installing the Outer Rails Onto the Rack

SuperServer 1029P-WTRT User's Manual
20
Warning: do not pick up the server with the front handles. They are designed to pull
the system from a rack only.
Installing the Outer Rails onto the Rack

holes. If you have an older rack with round holes, these brackets must be removed, and you
must use screws to secure the rail to the rack.
Outer Rail Installation
1. Align the square pegs on the front end of the rail with the square holes on the front of
the rack (C). Push the rail into the rack until the quick release bracket snaps into place,
securing the rail to the rack. Keep the rail horizontal.
2. 
3. Align the square pegs on the rear end of the rail to the holes on the rack (D) and push
the rail into the rack until the quick release bracket snaps into place, securing the rail to
the rack.
4. Repeat the procedure for the other outer rail assembly.

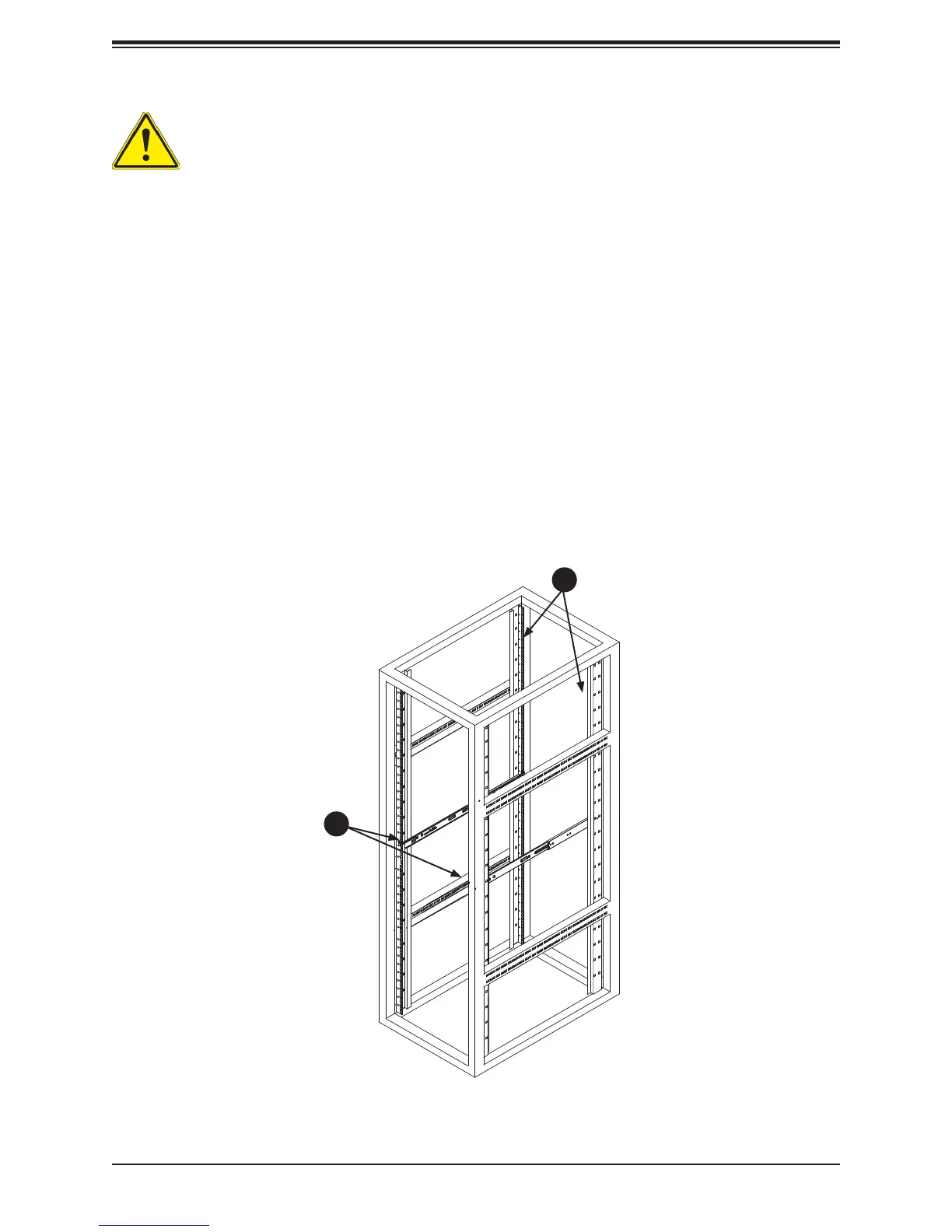

Figure 2-2. Installing the Outer Rails to the Rack
C
D
Note:

