SuperServer 1029P-WTRT User's Manual
29
Installing the Processor Heatsink Module (PHM)
1. Locate the triangle (pin 1) on the CPU socket, and locate the triangle (pin 1) at the

PHM upside down. With the underside of the CPU facing up, you can see the hollow
triangle located next to a screw at the corner. Turn the PHM right side up, and you will
see a triangle marked on the processor clip at the same corner as hollow triangle.)
2. Align pin 1 (the triangle) on the the PHM over pin 1 (the triangle) on the CPU socket.
3. Align the two holes at diagonal corners of the PHM onto the two guide posts on the
socket bracket and carefully drop the PHM onto the socket.
4. Use a T30 Torx-bit screwdriver to install four screws into the mounting holes on the
socket to securely attach the PHM onto the motherboard in the sequence of 1, 2, 3, and
4, as marked on the heatsink label. Gradually tighten each to assure even pressure.
Note: Use only 12 foot-pounds of torque when tightening the screws to avoid damaging
the processor or the socket.
Note: Wait for the heatsink to cool down before removing it.

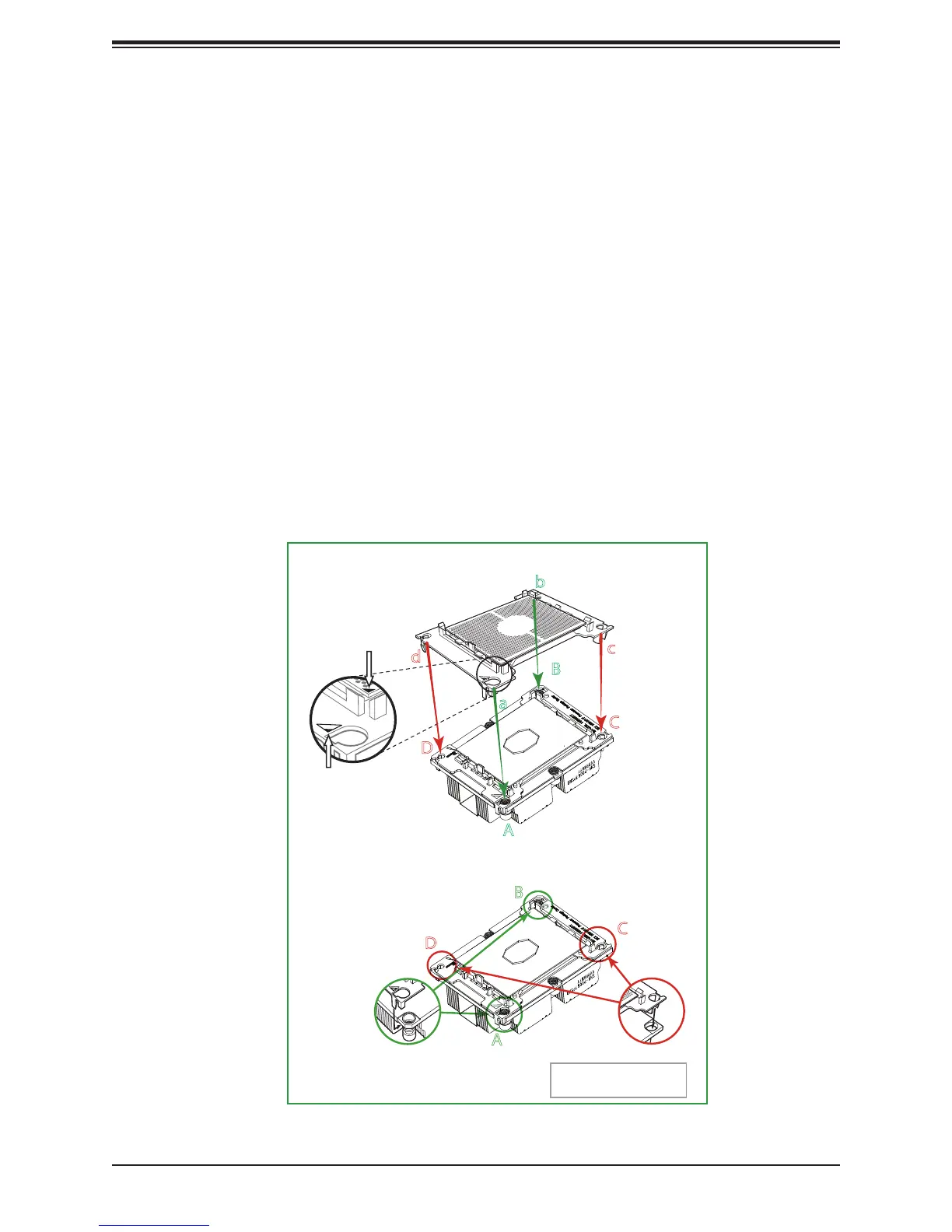

Heatsink
(Upside Down)
C
D
d
c
a
b
A
B
At locations C and D, the notches
snap onto the heat sink’s
mounting holes
At locations A and B, the notches
snap onto the heatsink’s sides
A
B
D
C
Make sure the mounting
notches snap into place
Triangle on the CPU
Triangle on the
Processor Clip
Non-Fabric CPU and Processor Clip
(Upside Down)
