Chapter 3: Maintenance and Component Installation

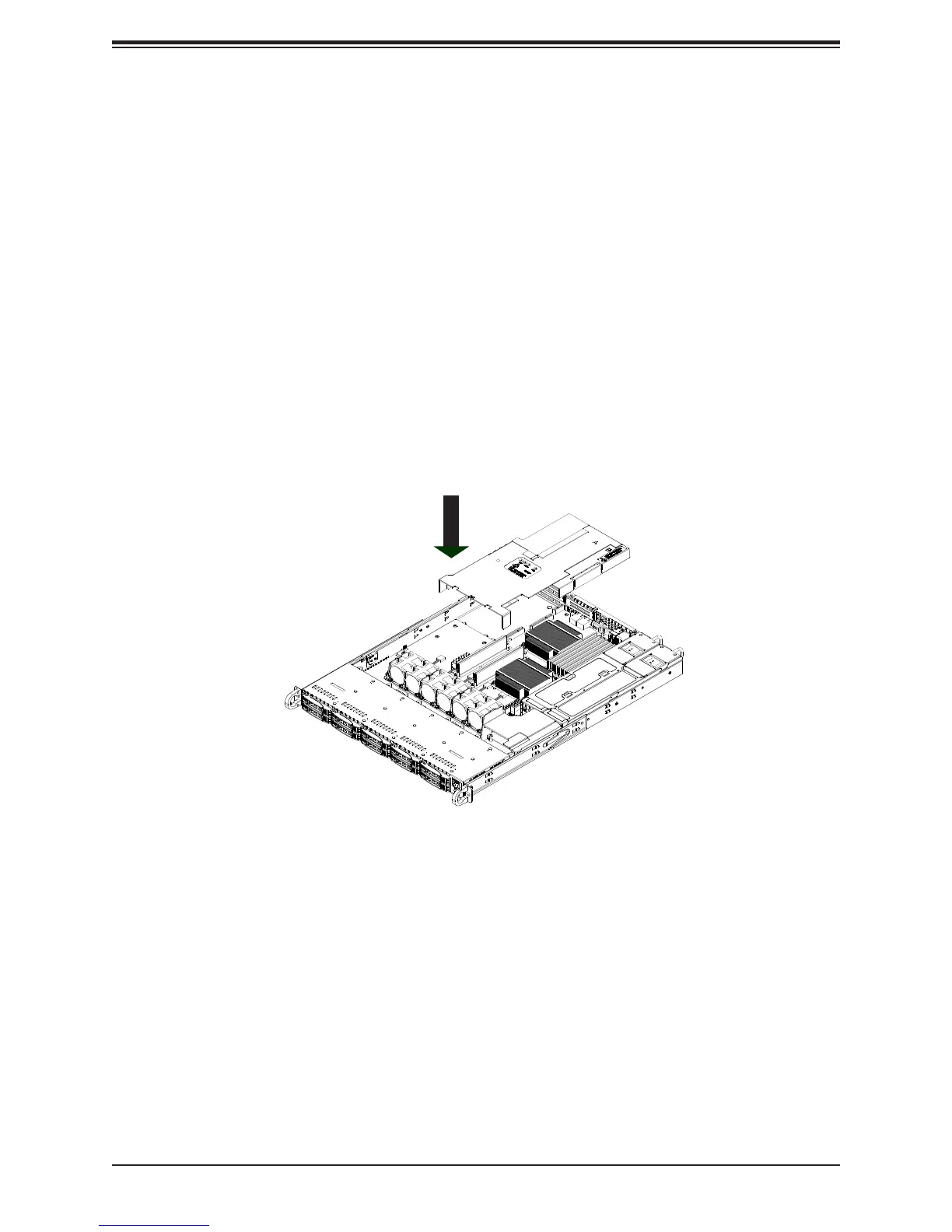

Figure 3-8. Installing the Air Shroud
Air Shroud

does not require screws to set up.
Air Shroud Installation
1. Begin by removing power from the system as described in Section 3.1. Remove the
chassis cover as described in Section 3.2.
2. Position the air shroud in alignment with the CPU, memory card and fan locations.
3. Check the air shroud and serverboard components, removing the break-away pieces
from the side of the air shroud if required.
4. Place the air shroud into the chassis.
5. Replace the chassis cover, plug the power cords into the rear of the power supply and
power up the system.
Checking the Airow
Check the Airow
1. 
2. Do not operate the server without hard drives or drive carriers in the drive bays. Use
only recommended server parts.
3. 

4. The control panel LEDs inform you of system status. See the Control Panel in Section
1.4 for details on the LEDs and the control panel buttons.
