SuperServer 1029P-WTRT User's Manual
35

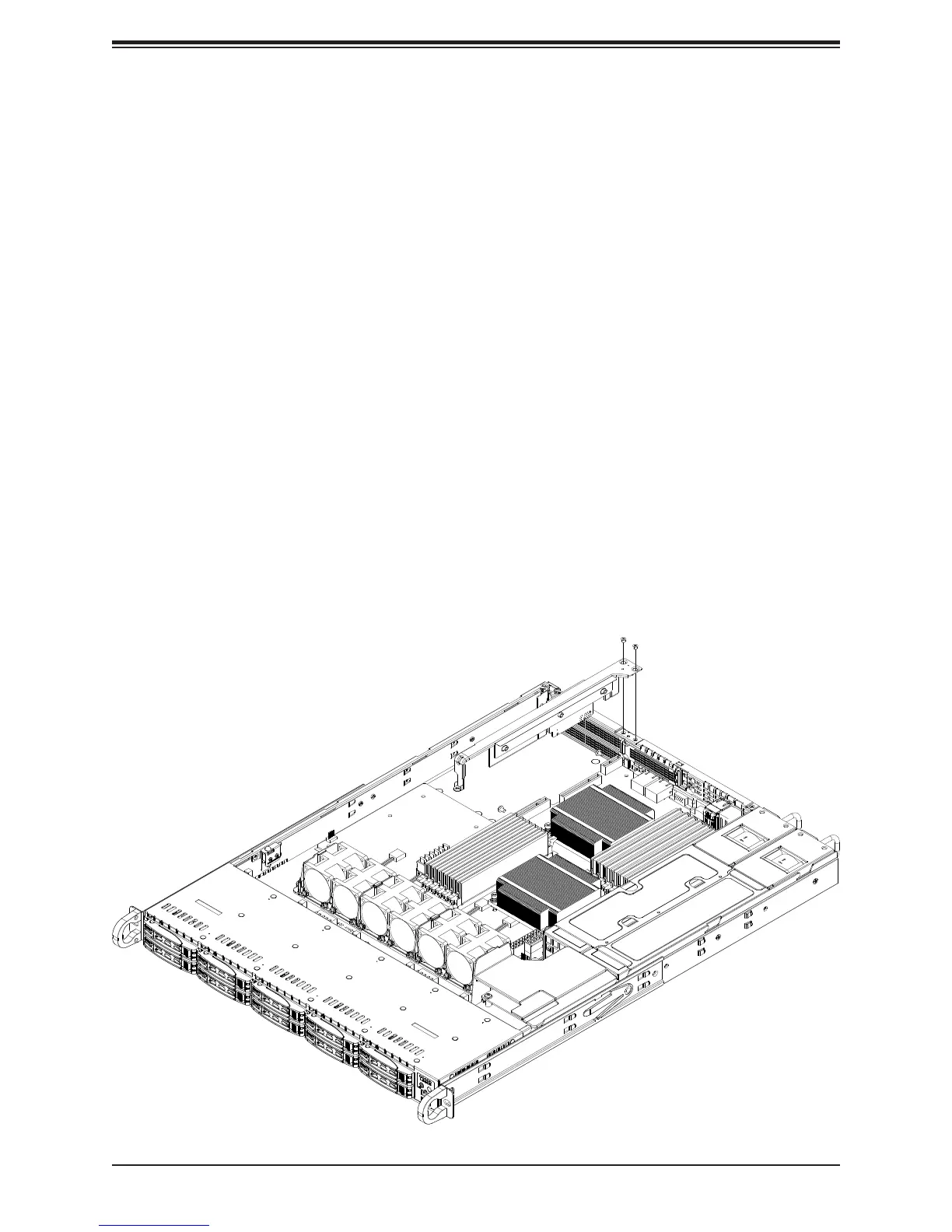

Figure 3-3. Removing the Riser Bracket
PCI Expansion Card Installation
The system includes two pre-installed riser cards: RSC-R1UW-E8R, for a standard size PCI-E
x8 card, and RSC-R1UW-2E16, which supports two standard size PCI-E x16 cards. Riser

chassis.
Installing PCI Expansion Cards
The riser card has already been pre-installed into the motherboard. Perform the following
steps to install an add-on card:
1. Remove the riser card bracket from the chassis by unscrewing the screws indicated in
Figure 3-3.
2. Lift the riser card bracket from the chassis.
3. Install the riser card on the bracket using the two screws provided.
4. Open the latch on the end of the bracket.
5. Install the expansion card by sliding the card into the appropriate slot in the riser card,
and then close the bracket latch over the end of it.
6. Install the entire assembly into the appropriate slot on the serverboard while aligning the
bracket in the rear of the chassis.
