Supermicro X7SLM+ - Ethernet Ports

2-12
X7SLM/X7SLM+ User's Manual

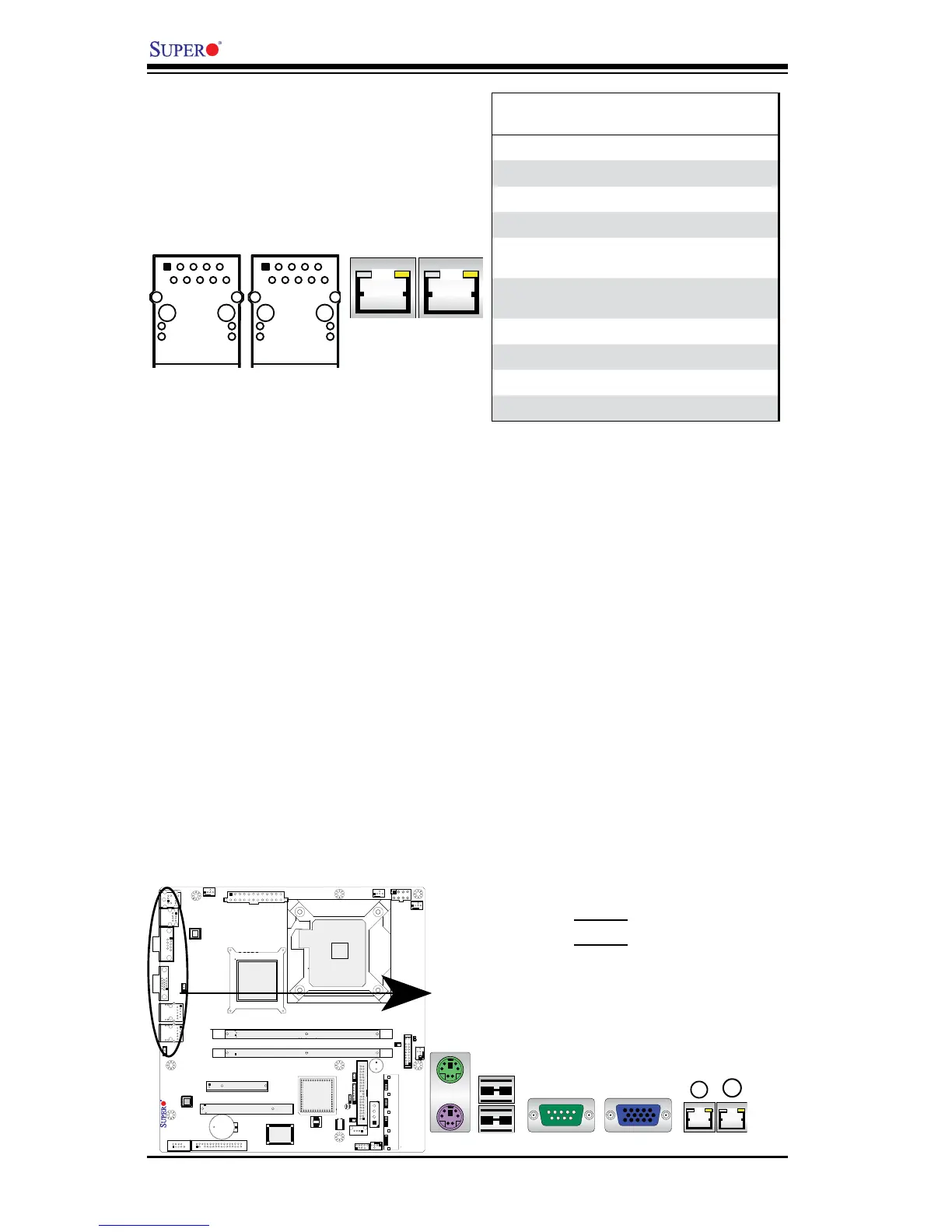

Ethernet Ports
Two Ethernet ports are located at on
the IO backplane. This ports accept
RJ45 type cables. (Note: Please refer
to the LED Indicator Section for LAN
LED information.)
LAN Ports
PinDenition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Yellow, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
X7SLM/X7SLM+
1
1. LAN1
2. LAN2
2
