Supermicro X7SLM+ - IDE Connector

2-28
X7SLM/X7SLM+ User's Manual
X7SLM/X7SLM+
KB/Mouse
USB 0/1
COM1
VGA
JPL1
LAN1
LAN2
JPL2
LAN
CTRL
Fan4
LAN
CTRL
COM2 Floppy
Battery
Super I/O
SPI BIOS
TPM CTRL
USB2
J45
J46
USB3/4
Fan3
JL1
JBT1
JPT1
JWD
JD1
IDE
PWR Extension
JP3
I-SATA0
I-SATA1
I-SATA2
I-SATA3
Fan2
LE1
FP CTRL
Speaker
SP1
JOH1
Fan1
8-pin PWR
J41
Fan5
CPU Fan
24-pin PWR
JPW1
Intel 945GC
MCH
CPU
DIMM 1A
DIMM 1B
DDR2 Unbuffered Non-ECC 667/533/400 MHz
Slot6 PCI-E x8
Slot5 PCI 33 MHz
Intel ICH 7
JF1

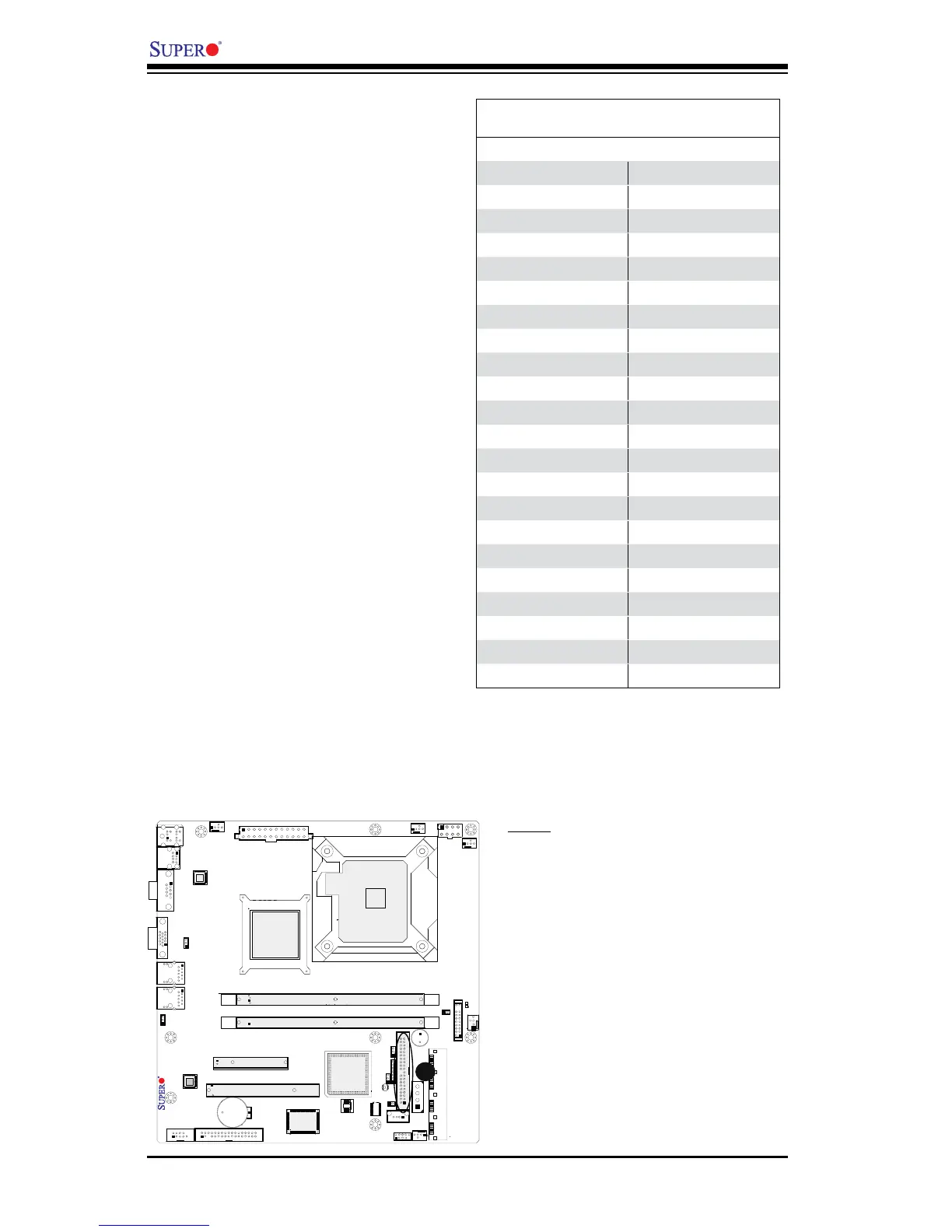

IDE Drive Connectors
PinDenitions
Pin# Denition Pin # Denition
1 Reset IDE 2 Ground
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 Ground 20 Key
21 DRQ3 22 Ground
23 I/O Write 24 Ground
25 I/O Read 26 Ground
27 SIORDY 28 (PD)
29 SDDACK# 30 Ground
31 IRQ15 32 (NC)
33 Addr1 34 SHDD66DET
35 Addr0 36 Addr2
37 SDCS1# 38 SDCS3#
39 SHDDLED# 40 Ground
41 +5V 42 +5V
43 Ground 44 (NC)
A
A. IDE
IDE Connector
An IDE Connector is located above
USB Connector 2 on the motherboard.
This 44-pin connector provides support
for 2.5" hard drive disks. See the table
on the right for pin denitions.
