Supero C7Z270-CG-L User Manual

4-36
Supermicro C7Z270-CG-L Motherboard User’s Manual

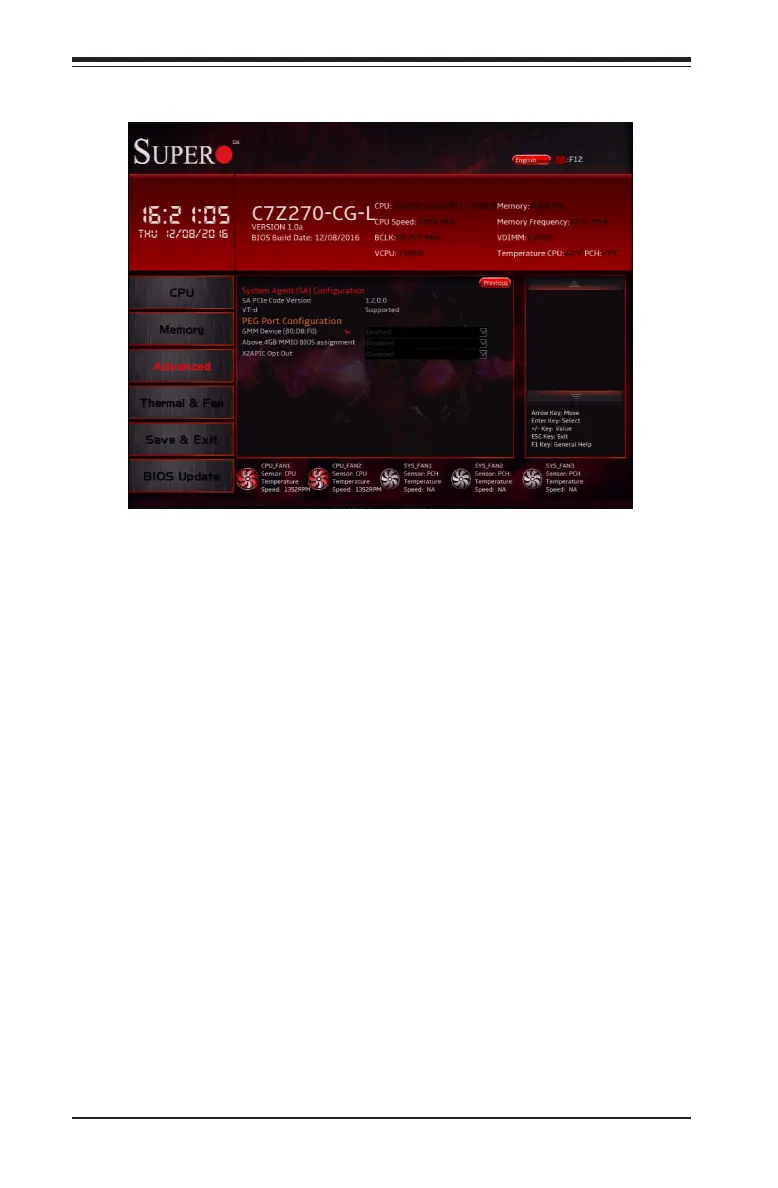

System Agent (SA) Configuration
The following will be displayed:
• SA PCIe Code Version
• VT-d Capability
PEG Port Conguration
PEG 0:1:0
Enable Root Port
Select Enable to activate the Root Port. The options are Disabled,
Enabled, and Auto.
Max Link Speed
Select Auto, Gen1, Gen2, or Gen3 to set the PEG Max Link Speed.
PEG0 Slot Power Limit Value
This option sets the upper limit of the power supplied by the slot (in
Watts). It is calculated by multiplying this value by the Slot Power
Limit Scale. Valid range is from 0-255.
PEG0 Slot Power Limit Scale
This option sets the scale of the Slot Power Limit Value (above). The
options are 1.0x, 0.1x, 0.01x, and 0.001x.
