Supermicro C7Z270-CG-L Motherboard User’s Manual
COM1
RST
PWR
ON
OH/FF X
X
NIC
1
HDD LED
PWR LED
JF1
TPM/PORT80
JTPM1:
JTPM1JL1
TH1
USB 12/13(3.0)
JSTBY1:
USB 4/5USB 2/3JBR1
J9701
JI2C1
J9702
JI2C2
ON :ENABLE
OFF:DISABLE
JI2C1/JI2C2
AUDIO FP
1-2:RST
2-3:NMI
JWD1:
JL1:
CHASSIS
INTRUSION
2-3:BIOS RECOVERY
1-2:NORMAL
WATCH DOG
5V STBY POWER
JBR1
LED4
JWD1
PCH SLOT1 PCI-E 3.0 X4
JD1:SPEAKER:1-4
RESET
PCIE M.2 CONNECTOR 2
1-2:NORMAL
2-3:ME MANUFACTURING MODE
JPME2:
CLEAR
BUTTON
CMOS
JSD1:SATA DOM PWR
JSD1
POWER
PCH SLOT2 PCI-E 3.0 X1
JPME2
CPU SLOT3 PCI-E 3.0 X8 (IN X16)
BUTTON
JD1
JBT1
JBT1:CMOS CLEAR
I-SATA4
I-SATA5
PCH SLOT4 PCI-E 3.0 X1
I-SATA2
I-SATA3
JSPDIF_OUT
PCH SLOT5 PCI-E 3.0 X1
I-SATA1
I-SATA0
CPU SLOT6 PCI-E 3.0 X16
PCIE M.2 CONNECTOR 1
SYS_FAN3
SYS_FAN2
HD AUDIO
USB 10(3.1)
LAN
USB 11(3.1)
CPU
USB 6/7/8/9(3.0)
JPW1
DVI
JPUSB1:USB0/1 WAKE UP
2-3 DISABLE
1-2 ENABLE
HDMI/DP
DIMMB2
DIMMA2
DIMMB1
DIMMA1
CPU_FAN2 CPU_FAN1
JVR1
SYS_FAN1
JPW2
JPUSB1
KB/MOUSE USB 0/1
C7Z270-CG-L
DESIGNED IN USA
BIOS LICENSE
REV: 1.01
BAR CODE
MAC CODE
+
A
C
LED1
22110
2280
2260
22110
2280
2260

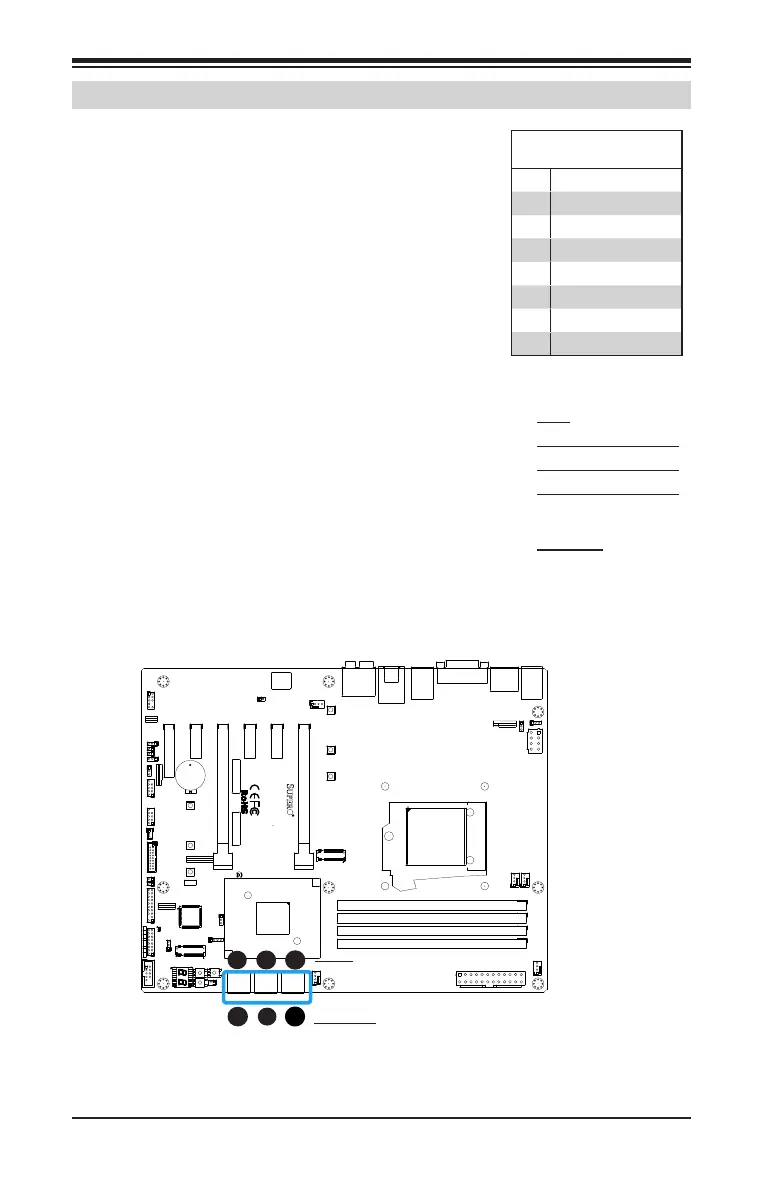

2-10 Hard Drive Connections
SATA Connections (I-SATA0~I-SATA5)
Six Serial ATA (SATA) 3.0 connectors (I-SATA
0~5) are supported on the board. These I-
SATA 3.0 ports are supported by the Intel
Z270 PCH chip (supports RAID 0,1,5,10). See
the table below for pin denitions.
SATA 2.0/3.0 Connectors
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
Top
A. I-SATA 3.0 #4
B. I-SATA 3.0 #2
C. I-SATA 3.0 #0
Bottom
D. I-SATA 3.0 #5
E. I-SATA 3.0 #3
F. I-SATA 3.0 #1
D
C
A
B
E
F
(Top)
(Bottom)
