4-56
Supermicro C7Z270-CG-L Motherboard User’s Manual

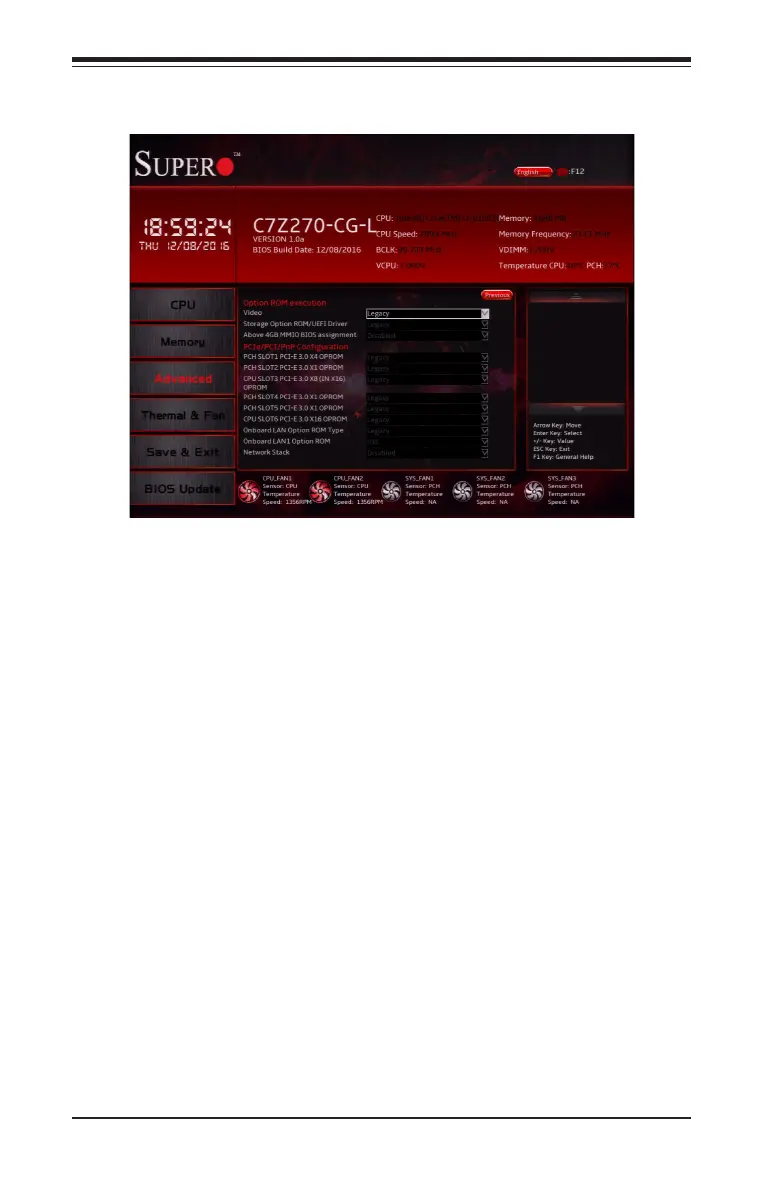

PCIe/PCI/PnP Configuration
Option ROM Execution
Video
This feature controls which option ROM to execute for the Video device.
The options are Do Not Launch, UEFI, and Legacy.
Storage Option ROM/UEFI Driver
This feature controls which option ROM to execute for the storage
device. The options are Do Not Launch, UEFI, and Legacy.
Above 4GB MMIO BIOS Assignment
Select Enable for remapping of BIOS above 4GB. The options are
Enabled and Disabled.
PCIe/PCI/PnP Conguration
PCH SLOT1 PCI-E 3.0 X4 OPROM,
PCH SLOT2 PCI-E 3.0 X1 OPROM
CPU SLOT3 PCI-E 3.0 X8 (IN X16) OPROM,
PCH SLOT4 PCI-E 3.0 X1 OPROM,
PCH SLOT5 PCI-E 3.0 X1 OPROM,
CPU SLOT6 PCI-E 3.0 X16 OPROM
Select Disabled to deactivate the selected slot, Legacy to activate the
slot in legacy mode and EFI to activate the slot in EFI mode. The op-
tions are Disabled, Legacy, and EFI.
