Supero C7Z270-CG-L User Manual

Chapter 2: Installation
2-15
COM1
RST
PWR
ON
OH/FF X
X
NIC
1
HDD LED
PWR LED
JF1
TPM/PORT80
JTPM1:
JTPM1JL1
TH1
USB 12/13(3.0)
JSTBY1:
USB 4/5USB 2/3JBR1
J9701
JI2C1
J9702
JI2C2
ON :ENABLE
OFF:DISABLE
JI2C1/JI2C2
AUDIO FP
1-2:RST
2-3:NMI
JWD1:
JL1:
CHASSIS
INTRUSION
2-3:BIOS RECOVERY
1-2:NORMAL
WATCH DOG
5V STBY POWER
JBR1
LED4
JWD1
PCH SLOT1 PCI-E 3.0 X4
JD1:SPEAKER:1-4
RESET
PCIE M.2 CONNECTOR 2
1-2:NORMAL
2-3:ME MANUFACTURING MODE
JPME2:
CLEAR
BUTTON
CMOS
JSD1:SATA DOM PWR
JSD1
POWER
PCH SLOT2 PCI-E 3.0 X1
JPME2
CPU SLOT3 PCI-E 3.0 X8 (IN X16)
BUTTON
JD1
JBT1
JBT1:CMOS CLEAR
I-SATA4
I-SATA5
PCH SLOT4 PCI-E 3.0 X1
I-SATA2
I-SATA3
JSPDIF_OUT
PCH SLOT5 PCI-E 3.0 X1
I-SATA1
I-SATA0
CPU SLOT6 PCI-E 3.0 X16
PCIE M.2 CONNECTOR 1
SYS_FAN3
SYS_FAN2
HD AUDIO
USB 10(3.1)
LAN
USB 11(3.1)
CPU
USB 6/7/8/9(3.0)
JPW1
DVI
JPUSB1:USB0/1 WAKE UP
2-3 DISABLE
1-2 ENABLE
HDMI/DP
DIMMB2
DIMMA2
DIMMB1
DIMMA1
CPU_FAN2 CPU_FAN1
JVR1
SYS_FAN1
JPW2
JPUSB1
KB/MOUSE USB 0/1
C7Z270-CG-L
DESIGNED IN USA
BIOS LICENSE
REV: 1.01
BAR CODE
MAC CODE
+
A
C
LED1
22110
2280
2260
22110
2280
2260
A. Back panel USB 2.0 #0
B. Back panel USB 2.0 #1
C. Back panel USB 3.0 #6
D. Back panel USB 3.0 #7
E. Back panel USB 3.0 #8
F. Back panel USB 3.0 #9
G. Back panel USB 3.1 #10
H. Back panel USB 3.1 #11
I. USB 2.0 Header #2/3
J. USB 2.0 Header #4/5
K. USB 3.0 Header #12/13

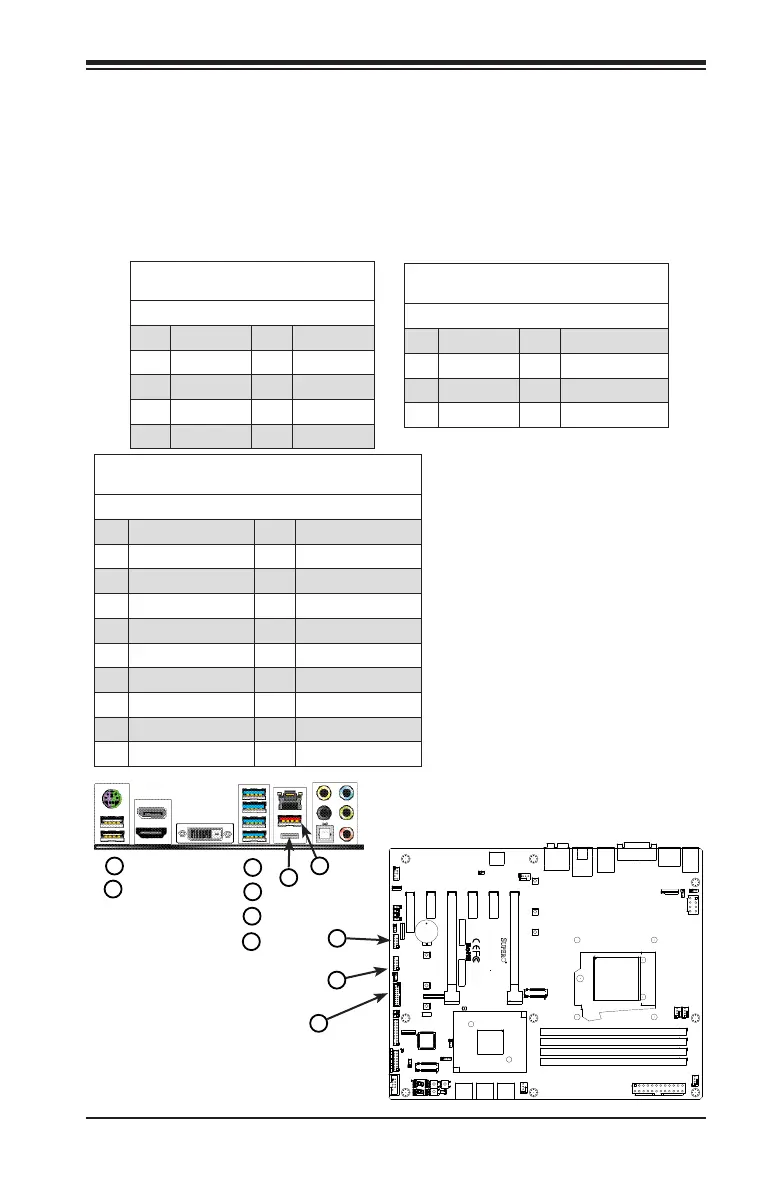

Universal Serial Bus (USB)
Four Universal Serial Bus 3.0 ports (#6,7,8,9) and two USB 3.1 'type
C' port (#10/11) and two (2) USB 2.0 ports (#0, 1) are located on the
I/O back panel. In addition, one USB 3.0 header (two ports: #12/13),
and two USB 2.0 headers (four ports: #2/3, 4/5) are also located on
the motherboard to provide front chassis access using USB cables (not
included). See the tables below for pin denitions.
Back Panel USB (2.0) , USB (3.0) Pin
Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB (2.0) Header
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
G
H
I
J
A
B
C
D
E
F
K
Front Panel USB (3.0/2..0)
Pin Denitions
Pin# Denition Pin# Denition
1 VBUS 11 IntA_P2_D+
2 IntA_P1_SSRX- 12 IntA_P2_D-
3 IntA_P1_SSRX+ 13 GND
4 GND 14 IntA_P2_SSTX-
5 IntA_P1_SSTX- 15 IntA_P2_SSTX+
6 IntA_P1_SSTX+ 16 GND
7 GND 17 IntA_P2_SSRX+
8 IntA_P1_D- 18 IntA_P2_SSRX+
9 IntA_P1_D- 19 USB_PP0
10 Ground 20 Ground
