4-52
Supermicro C7Z270-CG-L Motherboard User’s Manual

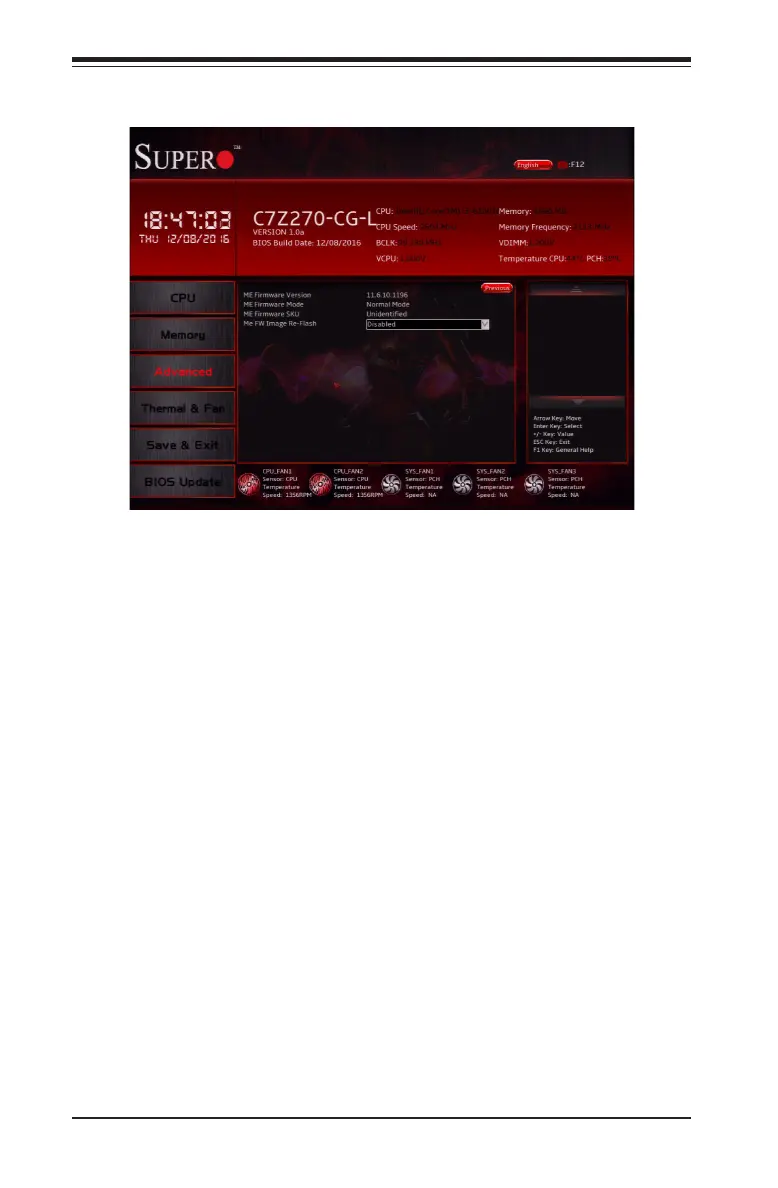

PCH FW Configuration
The following information for the PCH Firmw
are.
•
ME Firmware Version
•
ME Firmware Mode
•
ME Firmware SKU
ME FW Image Re-Flash
This item will update the PCH Firmware fr
om an omage in a USB Flash
-
drive attached to a USB port. The options ar
e Enabled and
Disabled
.
121
