Supero C7Z270-CG-L User Manual

Chapter 2: Installation
2-27
COM1
RST
PWR
ON
OH/FF X
X
NIC
1
HDD LED
PWR LED
JF1
TPM/PORT80
JTPM1:
JTPM1JL1
TH1
USB 12/13(3.0)
JSTBY1:
USB 4/5USB 2/3JBR1
J9701
JI2C1
J9702
JI2C2
ON :ENABLE
OFF:DISABLE
JI2C1/JI2C2
AUDIO FP
1-2:RST
2-3:NMI
JWD1:
JL1:
CHASSIS
INTRUSION
2-3:BIOS RECOVERY
1-2:NORMAL
WATCH DOG
5V STBY POWER
JBR1
LED4
JWD1
PCH SLOT1 PCI-E 3.0 X4
JD1:SPEAKER:1-4
RESET
PCIE M.2 CONNECTOR 2
1-2:NORMAL
2-3:ME MANUFACTURING MODE
JPME2:
CLEAR
BUTTON
CMOS
JSD1:SATA DOM PWR
JSD1
POWER
PCH SLOT2 PCI-E 3.0 X1
JPME2
CPU SLOT3 PCI-E 3.0 X8 (IN X16)
BUTTON
JD1
JBT1
JBT1:CMOS CLEAR
I-SATA4
I-SATA5
PCH SLOT4 PCI-E 3.0 X1
I-SATA2
I-SATA3
JSPDIF_OUT
PCH SLOT5 PCI-E 3.0 X1
I-SATA1
I-SATA0
CPU SLOT6 PCI-E 3.0 X16
PCIE M.2 CONNECTOR 1
SYS_FAN3
SYS_FAN2
HD AUDIO
USB 10(3.1)
LAN
USB 11(3.1)
CPU
USB 6/7/8/9(3.0)
JPW1
DVI
JPUSB1:USB0/1 WAKE UP
2-3 DISABLE
1-2 ENABLE
HDMI/DP
DIMMB2
DIMMA2
DIMMB1
DIMMA1
CPU_FAN2 CPU_FAN1
JVR1
SYS_FAN1
JPW2
JPUSB1
KB/MOUSE USB 0/1
C7Z270-CG-L
DESIGNED IN USA
BIOS LICENSE
REV: 1.01
BAR CODE
MAC CODE
+
A
C
LED1
22110
2280
2260
22110
2280
2260

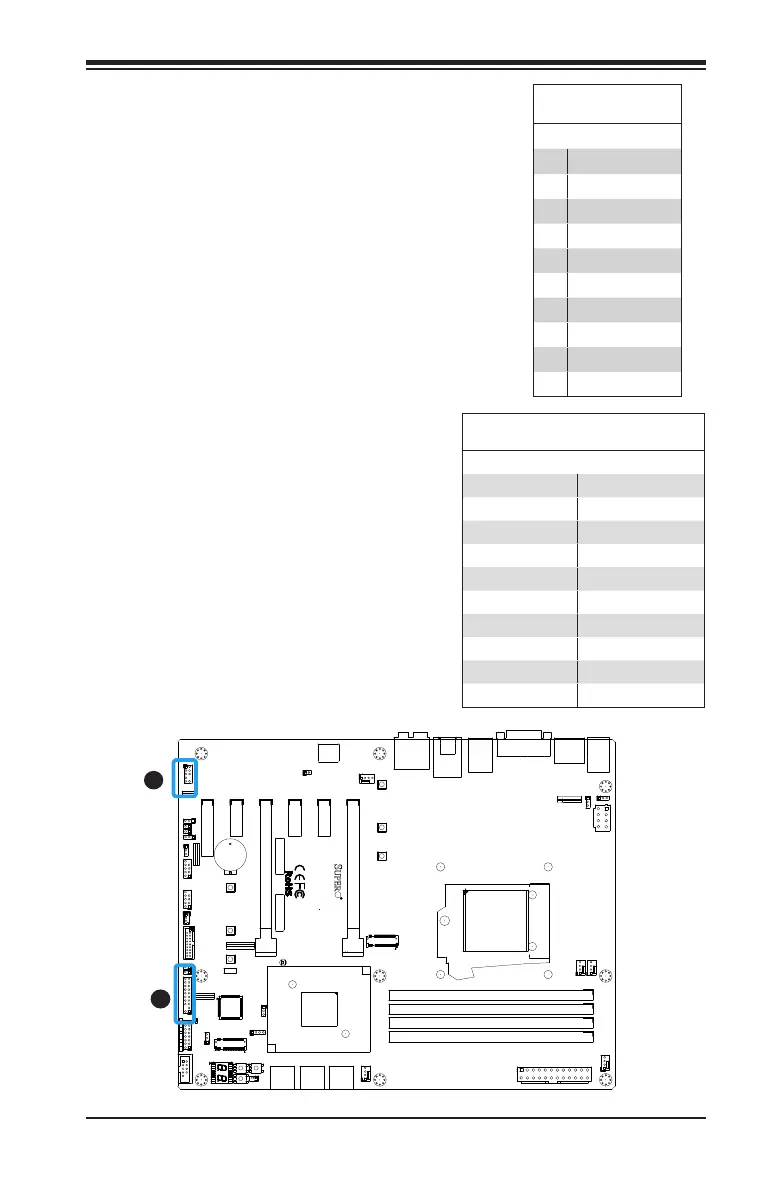

A. AUDIO FP
B.TPM Header
A
Front Panel Audio Header (AUDIO
FP)
A 10-pin Audio header is supported on
the motherboard. This header allows you
to connect the motherboard to a front
panel audio control panet, if needed.
Connect an audio cable to the audio
header to use this feature (not supplied).
See the table at right for pin denitions
for the header.
10-in Audio
Pin Denitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground
B
TPM Header/Port 80
A Trusted Platform Module/Port 80 head-
er is located at JTPM1 to provide TPM
support and Port 80 connection. Use this
header to enhance system performance
and data security. See the table on the
right for pin denitions.
TPM/Port 80 Header
Pin Denitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 +5V (X)
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK4 14 SMB_DAT4
15 +3V_DUAL 16 SERIRQ
17 GND 18 CLKRUN# (X)
19 LPCPD# 20 LDRQ# (X)
