Chapter 2: Installation
2-21
COM1
RST
PWR
ON
OH/FF X
X
NIC
1
HDD
LED
PWR
LED
JF1
TPM/PORT80
JTPM1:
TH1
JSTBY1:
J9701
JI2C1
J9702
JI2C2
ON :ENABLE
OFF:DISABLE
JI2C1/JI2C2
1-2:RST
2-3:NMI
JWD1:
JL1:
CHASSIS
INTRUSION
2-3:BIOS RECOVERY
1-2:NORMAL
WATCH DOG
5V STBY POWER
JBR1
LED4
JWD1
PCH SLOT1 PCI-E 3.0 X4
JD1:SPEAKER:1-4
RESET
PCIE M.2 CONNECTOR 2
1-2:NORMAL
2-3:ME MANUFACTURING MODE
JPME2:
CLEAR
BUTTON
CMOS
JSD1:SATA DOM PWR
JSD1
POWER
PCH SLOT2 PCI-E 3.0 X1
JPME2
CPU SLOT3 PCI-E 3.0 X8 (IN X16)
BUTTON
JD1
JBT1
JBT1:CMOS CLEAR
I-SATA4
I-SATA5
PCH SLOT4 PCI-E 3.0 X1
I-SATA2
I-SATA3
JSPDIF_OUT
PCH SLOT5 PCI-E 3.0 X1
I-SATA1
I-SATA0
CPU SLOT6 PCI-E 3.0 X16
PCIE M.2 CONNECTOR 1
SYS_FAN3
SYS_FAN2
HD AUDIO
USB 10(3.1)
LAN
USB 11(3.1)
CPU
USB 6/7/8/9(3.0)
JPW1
DVI
JPUSB1:USB0/1 WAKE UP
2-3 DISABLE
1-2 ENABLE
HDMI/DP
DIMMB2
DIMMA2
DIMMB1
DIMMA1
CPU_FAN2
CPU_FAN1
JVR1
SYS_FAN1
JPW2
JPUSB1
KB/MOUSE USB 0/1
C7Z270-CG-L
DESIGNED IN USA
BIOS LICENSE
REV: 1.01
BAR CODE
MAC CODE
+
A
C
LED1
22110
2280
2260
22110
2280
2260

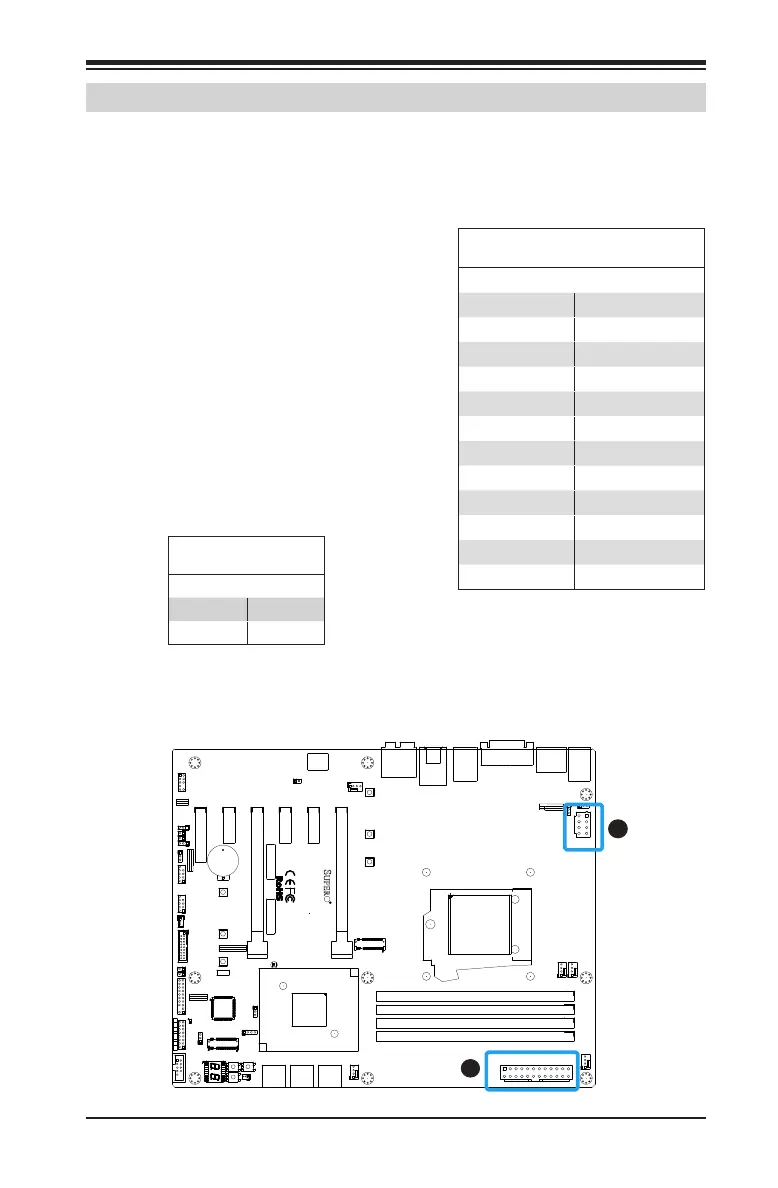

2-7 Connecting Cables
This section provides brief descriptions and pin-out denitions for on-
board headers and connectors. Be sure to use the correct cable for each
header or connector.
A. 24-Pin ATX Main PWR
B. 8-Pin PWR
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR
Connectors (JPW1 & JPW2)
The 24-pin main power connector (JPW1)
is used to provide power to the moth-
erboard. The 8-pin CPU PWR connector
(JPW2) is also required for the processor.
These power connectors meet the SSI
EPS 12V specication. See the table on
the right for pin denitions.
A
B
