Chapter 2: Installation
2-17
ATX PS/2 Keyboard/Mouse Ports
The ATX PS/2 keyboard and PS/2 mouse are located above Back Panel
USB Ports 0/1 on the motherboard.

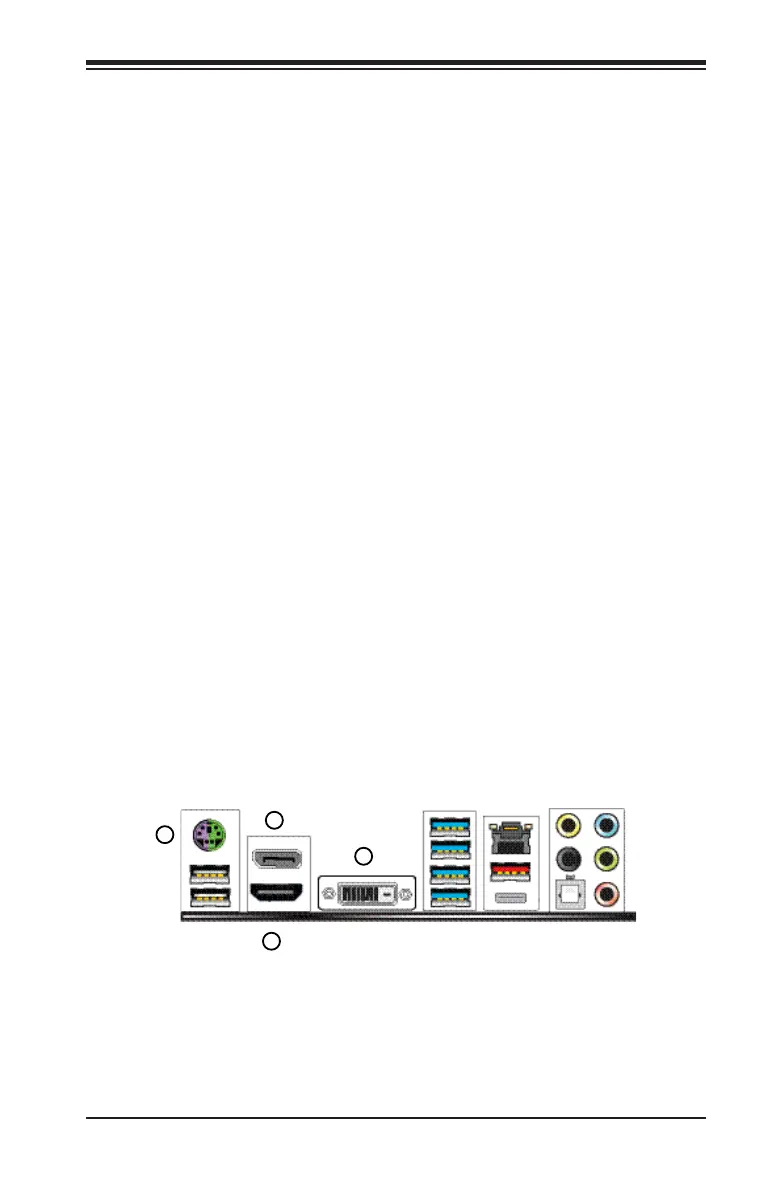

A. PS/2 Keyboard/Mouse Port
B. VESA Display Port
C. HDMI Port
D. DVI Port
HDMI Port
One HDMI (High-Denition Multimedia Interface) is located on the I/O
backpanel. This connector is used to display both high denition video
and digital sound through an HDMI capable display, using a single HDMI
cable (not included).
DVI Port
A DVI port is located on the I/O backpanel. Use this port to connect to
a compatible DVI (Digital Visual Interface) display.
VESA® DisplayPort™
DisplayPort, develped by the VESA consortium, delivers digital display at
a fast refresh rate. It can connect to virtually any display device using a
DisplayPort adapter for devices such as VGA, DVI or HDMI.
A
B
C
D
