Chapter 2: Installation
2-7

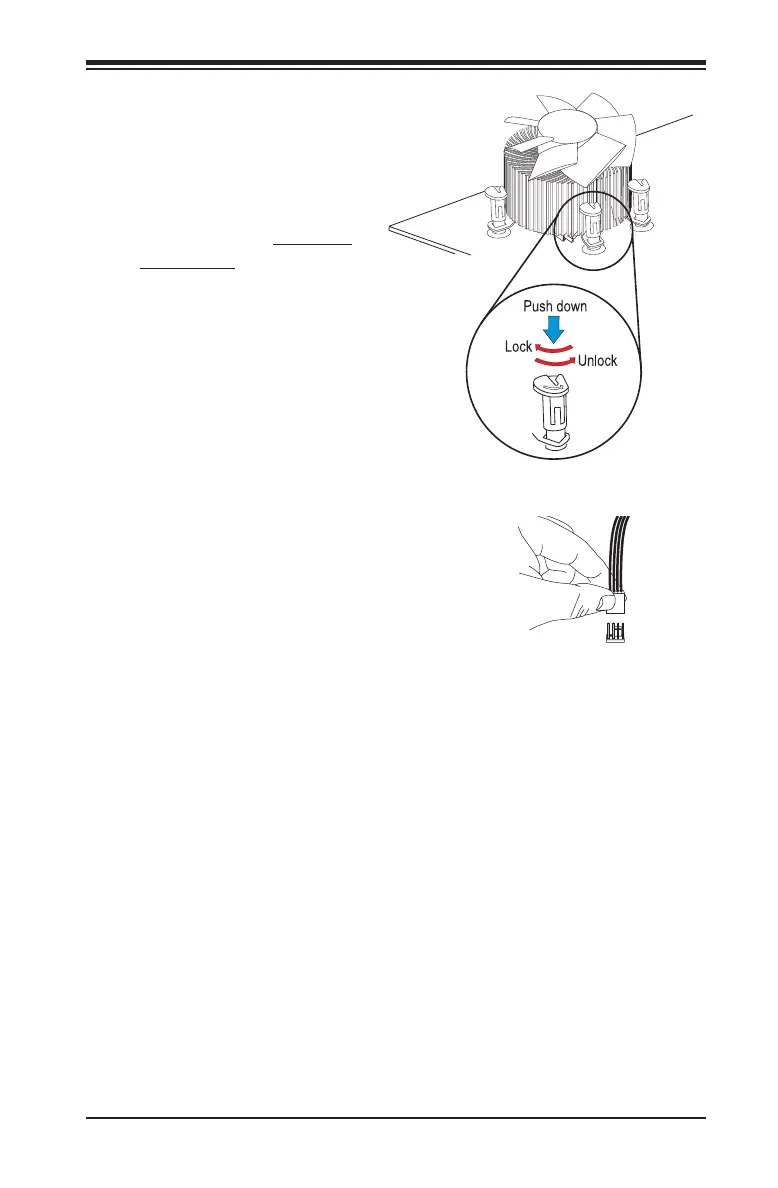

7. Align the four heatsink
fasteners with the mounting
holes on the motherboard.
Gently push the pairs of
diagonal fasteners (#1 &
#2, and #3 & #4) into the
mounting holes until you
hear a click. Also, make sure
to orient each fastener so
that the narrow end of the
groove is pointing outward.
8. Repeat Step 7 to insert all
four heatsink fasteners into
the mounting holes.
9. Once all four fasteners are
securely inserted into the
mounting holes, and the
heatsink is properly installed
on the motherboard, connect
the heatsink fan wires to the
CPU Fan connector.
