A
B
C

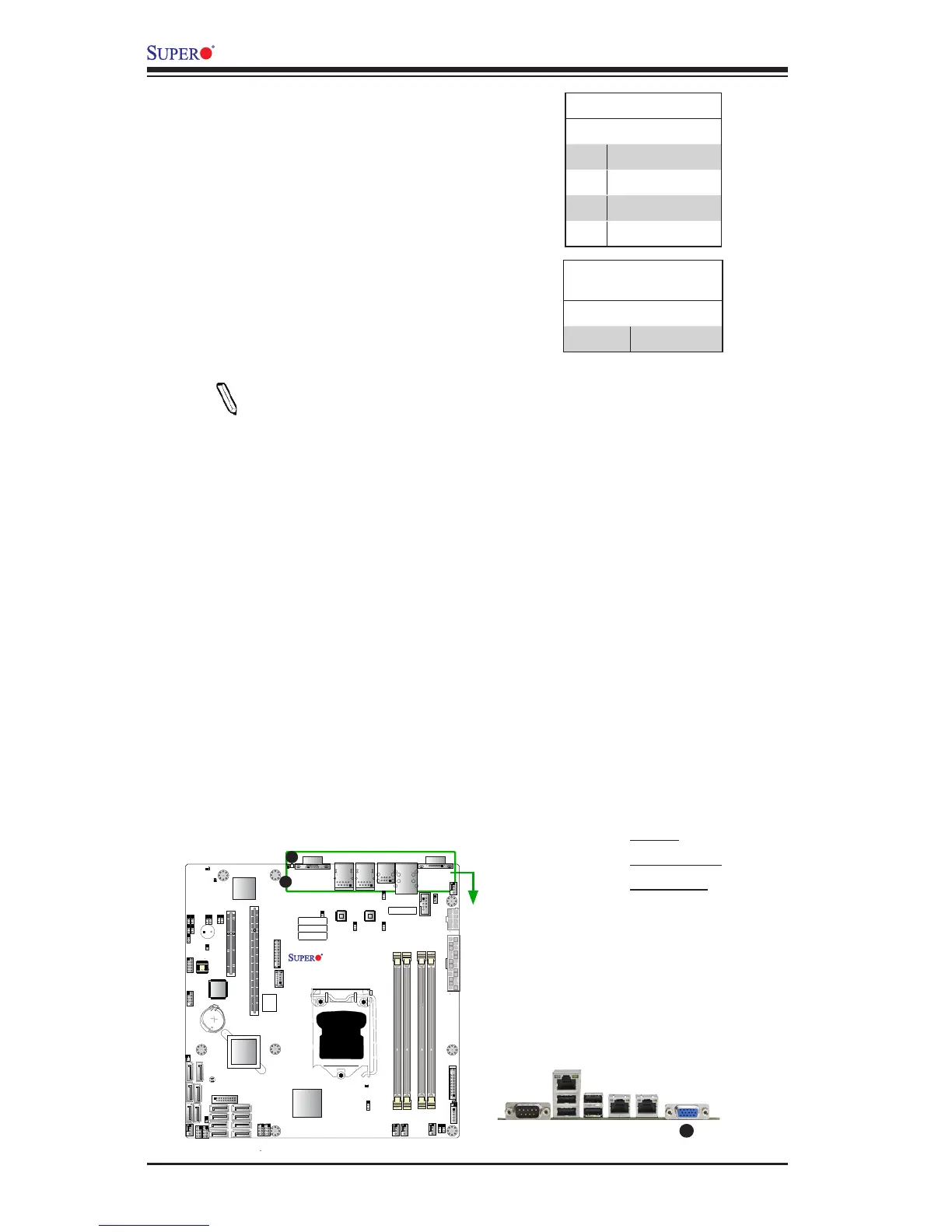

Unit Identier Switch/UID LED Indicator
A Unit Identier (UID) switch and an LED
Indicator are located on the motherboard.
The UID switch is located next to the VGA
port on the backplane. The UID LED (LE4)
is located next to the UID switch. When you
press the UID switch, the UID LED will be
turned on. Press the UID switch again to
turn off the LED indicator. The UID Indicator
provides easy identication of a system unit
that may be in need of service.
Note: UID can also be triggered via
IPMI on the motherboard. For more
information on IPMI, please refer to
the IPMI User's Guide posted on
our website @http://www.super-
micro.com.
UID Switch
Pin# Denition
1 Ground
2 Ground
3 Button In
4 Ground
UID LED
Status
Color/State Status
Blue: On Unit Identied
VGA Port
The onboard VGA port is located next to
LAN Ports 1/2 on the I/O backpanel. Use
the connection for VGA display.
