X10SL7-F User’s Manual
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED

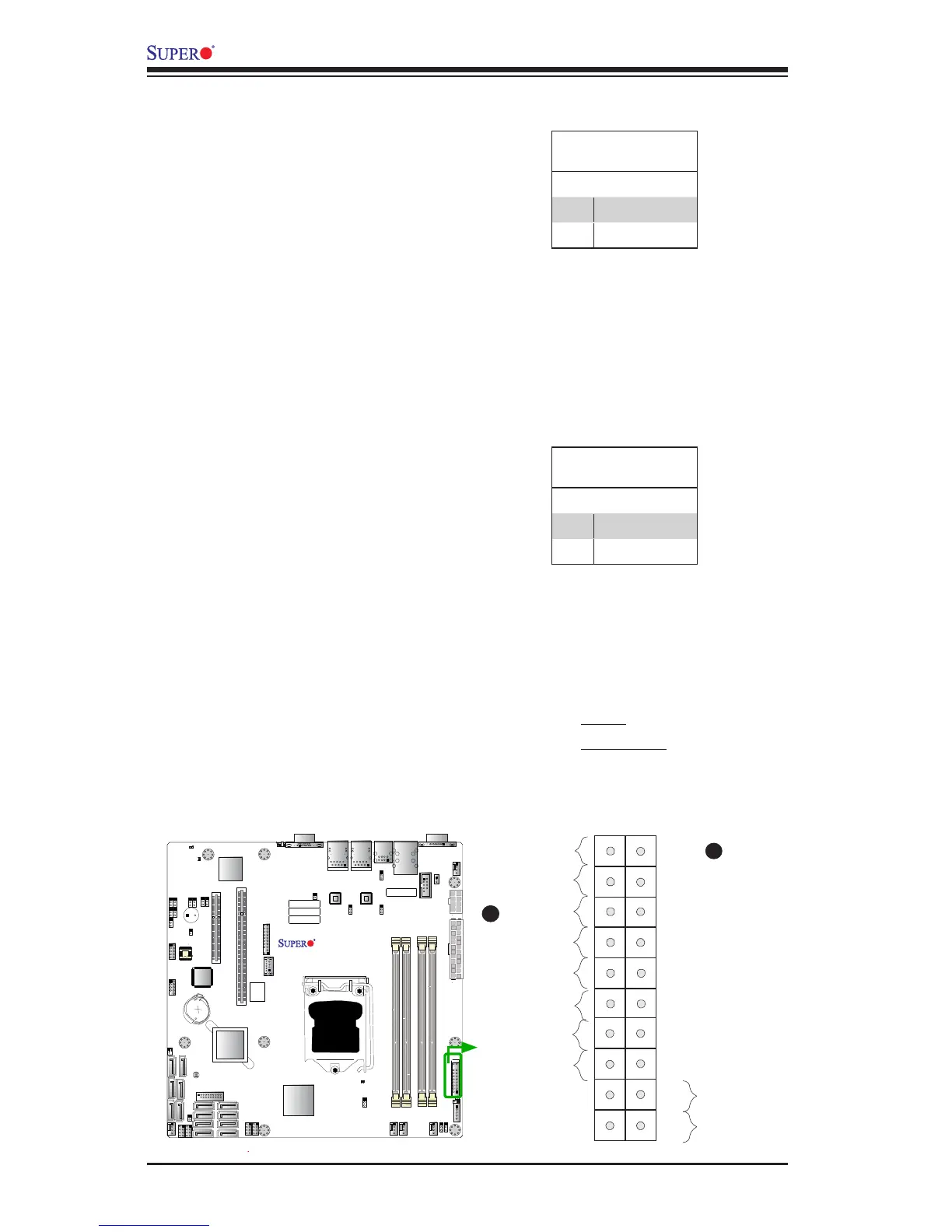

Front Control Panel Pin Denitions
A. NMI
B. PWR LED
A
B
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin denitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin denitions.
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 Control
20 Ground
Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 PWR LED
IPMI CODE
SAS CODE
BIOS LICENSE
BAR CODE
MAC CODE
FAN2
FAN3
FAN1
FAN4
FANA
JBR1
JPL2
JPS1
JPUSB1
JPL1
JWD1
JLED1
JPB1
JPG1
JPME1
JPME2
J19
J18
LE3
LE5
LE4
JPW1
JPW2
J21
JI2C1
JI2C2
J3
L-SAS0 L-SAS1
L-SAS2 L-SAS3
L-SAS4
L-SAS5
L-SAS6
JPI2C1
JTPM1
6-SGPIO1
T-SGPIO1
T-SGPIO2
JSD1
SPKR1
JBT1
SW1
CPU SLOT6 PCI-E 3.0 X8 (IN X 16)
USB1 (3.0)
USB0 (3.0)
COM2
USB8/9
_LAN
IPMI
VGA
COM1
LAN2
JL1
LAN1
DIMMB2
DIMMA2
USB4/5
CPU
JF1
USB2/3
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
PCH SLOT5 PCI-E 2.0 X4 (IN X 8)
DIMMB1
DIMMA1
JSTBY1
L-SAS7
6-SGPIO2
Battery
PCH
SAS
CTRL
LAN
CTRL
LAN
CTRL
BMC
X10SL7-F
Rev. 1.01
BIOS
Front Panel CTRL
JOH1
LEDS2
LE6
