Supero X10SL7-F User Manual

2-38
X10SL7-F User’s Manual
IPMI CODE
SAS CODE
BIOS LICENSE
BAR CODE
MAC CODE
FAN2
FAN3
FAN1
FAN4
FANA
JBR1
JPL2
JPS1
JPUSB1
JPL1
JWD1
JLED1
JPB1
JPG1
JPME1
JPME2
J19
J18
LE3
LE5
LE4
JPW1
JPW2
J21
JI2C1
JI2C2
J3
L-SAS0 L-SAS1
L-SAS2 L-SAS3
L-SAS4
L-SAS5
L-SAS6
JPI2C1
JTPM1
6-SGPIO1
T-SGPIO1
T-SGPIO2
JSD1
SPKR1
JBT1
SW1
CPU SLOT6 PCI-E 3.0 X8 (IN X 16)
USB1 (3.0)
USB0 (3.0)
COM2
USB8/9
_LAN
IPMI
VGA
COM1
LAN2
JL1
LAN1
DIMMB2
DIMMA2
USB4/5
CPU
JF1
USB2/3
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
PCH SLOT5 PCI-E 2.0 X4 (IN X 8)
DIMMB1
DIMMA1
JSTBY1
L-SAS7
6-SGPIO2
Battery
PCH
SAS
CTRL
LAN
CTRL
LAN
CTRL
BMC
X10SL7-F
Rev. 1.01
BIOS
Front Panel CTRL
JOH1
LEDS2
LE6

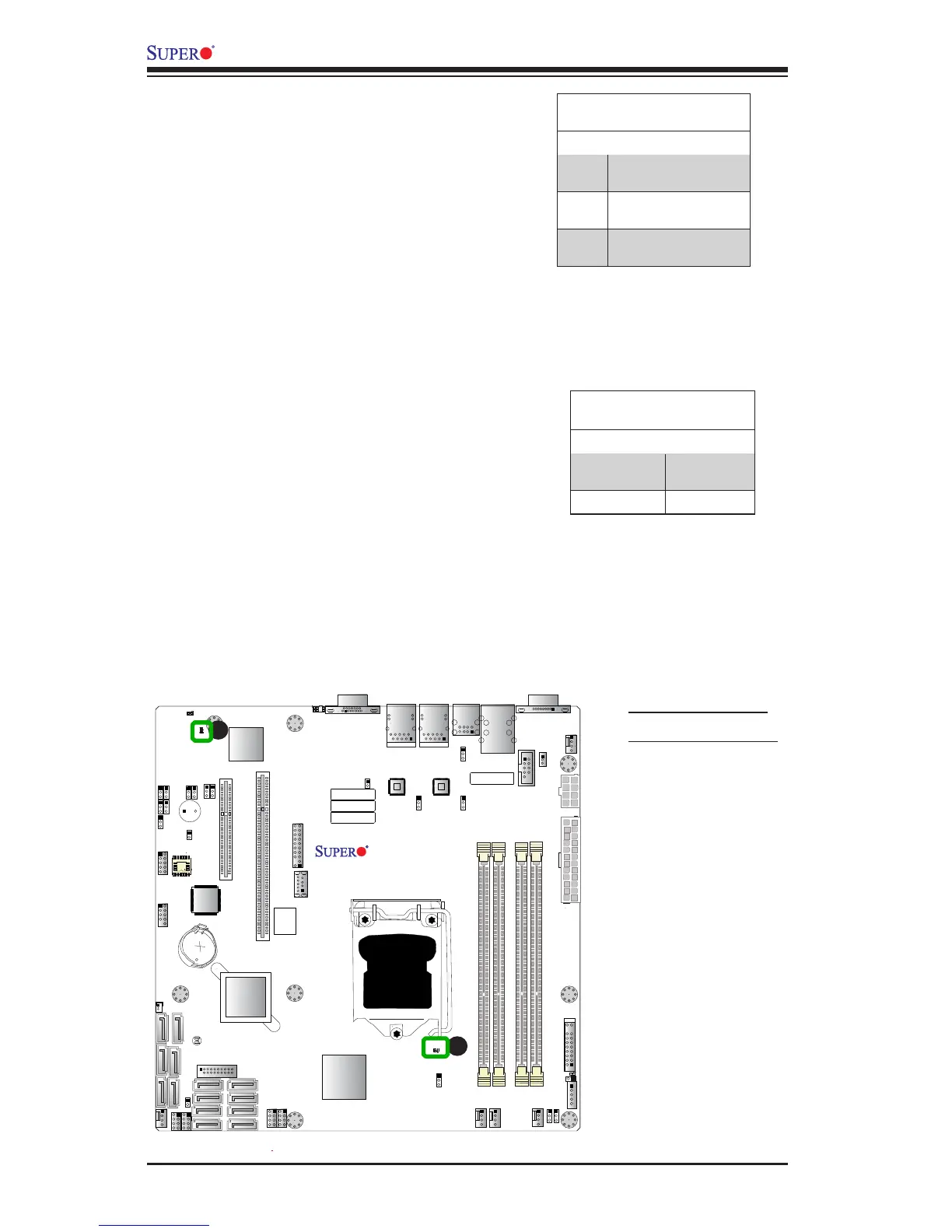

SAS Heartbeat LED Status
(LEDS2)
Color/State Denition
Green:
Blinking
SAS Active
Red: Solid On SAS Error
SAS Heartbeat LED
A SAS Heartbeat LED is Located at
LEDS2 on the motherboard. See the
table at right for more information.
A. Power Status LED
B. SAS Heartbeat LED
A
Power Status LED (LE6)
Color Denition
Green System Power On
(Power Normal)
Yellow Standby Power Active
(System Off)
Red System Power has a
problem (Power Failure)
Power Status LED
A Power Status LED is located at LE6 on
the motherboard. When the LED indica-
tor turns to color red, power supply has a
problem. See the table at right for more
information.
B
