Supero X10SL7-F User Manual

Chapter 2: Installation
2-37
IPMI CODE
SAS CODE
BIOS LICENSE
BAR CODE
MAC CODE
FAN2
FAN3
FAN1
FAN4
FANA
JBR1
JPL2
JPS1
JPUSB1
JPL1
JWD1
JLED1
JPB1
JPG1
JPME1
JPME2
J19
J18
LE3
LE5
LE4
JPW1
JPW2
J21
JI2C1
JI2C2
J3
L-SAS0 L-SAS1
L-SAS2 L-SAS3
L-SAS4
L-SAS5
L-SAS6
JPI2C1
JTPM1
6-SGPIO1
T-SGPIO1
T-SGPIO2
JSD1
SPKR1
JBT1
SW1
CPU SLOT6 PCI-E 3.0 X8 (IN X 16)
USB1 (3.0)
USB0 (3.0)
COM2
USB8/9
_LAN
IPMI
VGA
COM1
LAN2
JL1
LAN1
DIMMB2
DIMMA2
USB4/5
CPU
JF1
USB2/3
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
PCH SLOT5 PCI-E 2.0 X4 (IN X 8)
DIMMB1
DIMMA1
JSTBY1
L-SAS7
6-SGPIO2
Battery
PCH
SAS
CTRL
LAN
CTRL
LAN
CTRL
BMC
X10SL7-F
Rev. 1.01
BIOS
Front Panel CTRL
JOH1
LEDS2
LE6
Onboard PWR LED Indicator
LED Status
Status Denition
Off System Off
On System on, or
System off and PWR
Cable Connected
Onboard Power LED (LE3)

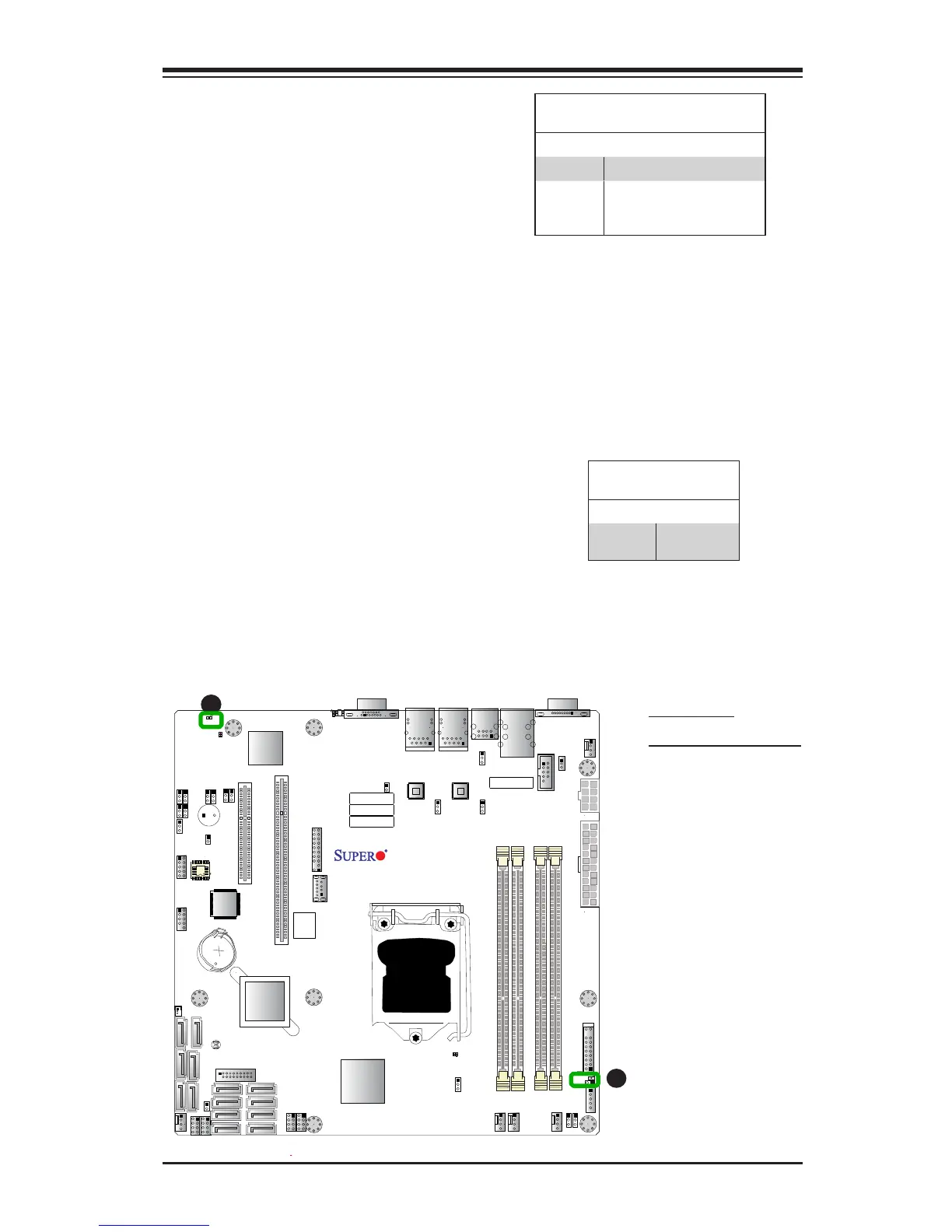

An Onboard Power LED is located
at LE3 on the motherboard. When
LE3 is on, the AC power cable is
connected. Make sure to disconnect
the power cable before removing or
installing any component. See the
layout below for the LED location.
A. PWR LED
B. BMC Heartbeat LED
A
B
BMC Heartbeat LED
Status
Color/State Denition
Green:
Blinking
BMC: Normal
BMC Heartbeat LED
A BMC Heartbeat LED is located at LE5
on the X10SL7-F. See the table at right
for more information.
