Supero X10SL7-F User Manual

2-28
X10SL7-F User’s Manual
IPMI CODE
SAS CODE
BIOS LICENSE
BAR CODE
MAC CODE
FAN2
FAN3
FAN1
FAN4
FANA
JBR1
JPL2
JPS1
JPUSB1
JPL1
JWD1
JLED1
JPB1
JPG1
JPME1
JPME2
J19
J18
LE3
LE5
LE4
JPW1
JPW2
J21
JI2C1
JI2C2
J3
L-SAS0 L-SAS1
L-SAS2 L-SAS3
L-SAS4
L-SAS5
L-SAS6
JPI2C1
JTPM1
6-SGPIO1
T-SGPIO1
T-SGPIO2
JSD1
SPKR1
JBT1
SW1
CPU SLOT6 PCI-E 3.0 X8 (IN X 16)
USB1 (3.0)
USB0 (3.0)
COM2
USB8/9
_LAN
IPMI
VGA
COM1
LAN2
JL1
LAN1
DIMMB2
DIMMA2
USB4/5
CPU
JF1
USB2/3
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
PCH SLOT5 PCI-E 2.0 X4 (IN X 8)
DIMMB1
DIMMA1
JSTBY1
L-SAS7
6-SGPIO2
Battery
PCH
SAS
CTRL
LAN
CTRL
LAN
CTRL
BMC
X10SL7-F
Rev. 1.01
BIOS
Front Panel CTRL
JOH1
LEDS2
LE6
A. T-SGPIO 1
B. T-SGPIO 2
C. 6-SGPIO 1
D. 6-SGPIO 2
E. PWR SMB
B

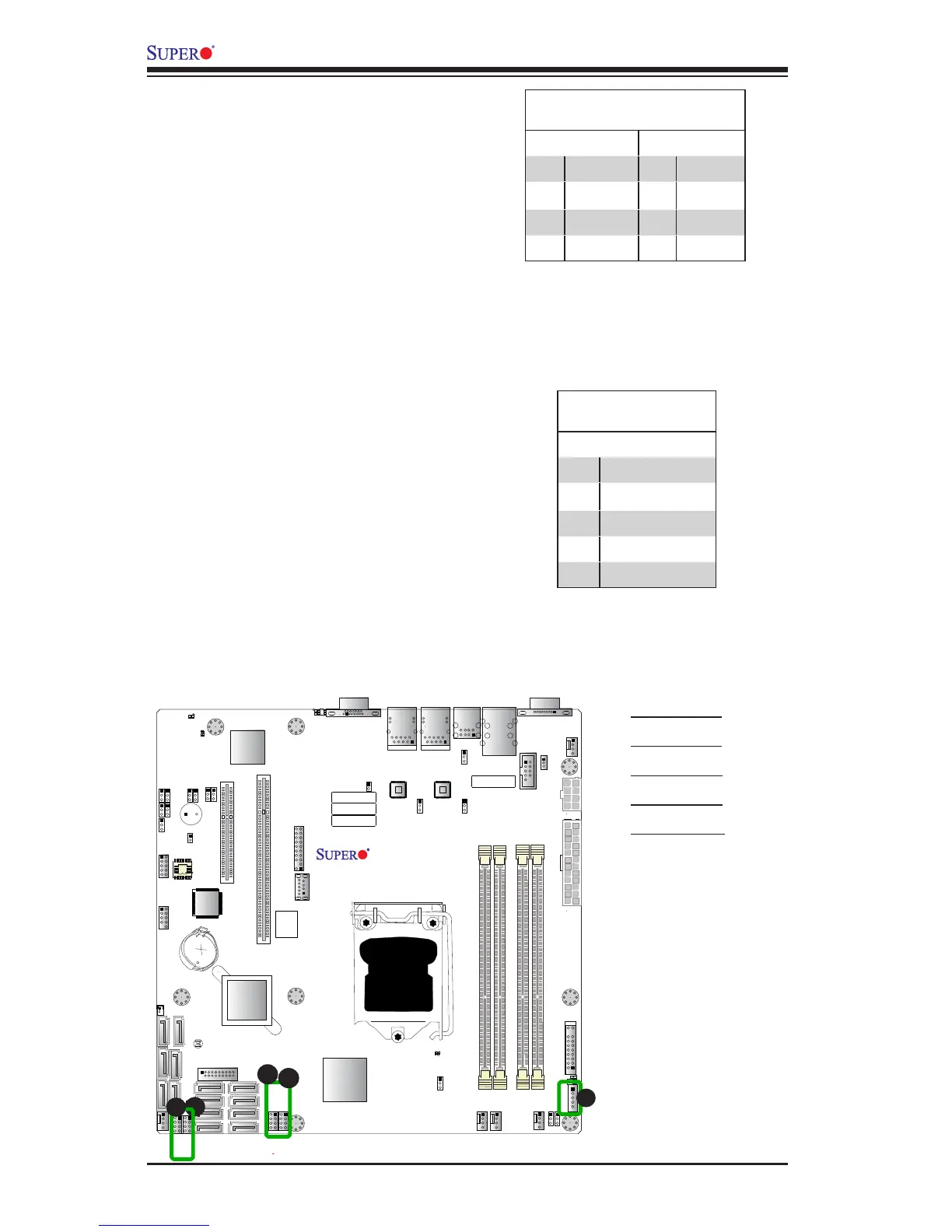

T-SGPIO 1/2 & 6-SGPIO 1/2 Headers
Four Serial-Link General Purpose In-
put/Output headers (T-SGPIO 1/2 &
6-SGPIO 1/2) are located on the moth-
erboard. T-SGPIO 1/2 support onboard
SATA interface, and 6-SGPIO 1/2 support
onboard SAS connections. See the table
on the right for pin denitions.
Note: NC= No Connection
T-SGPIO/6-SGPIO
Pin Denitions
Pin# Denition Pin Denition
2 NC 1 NC
4 Data 3 Ground
6 Ground 5 Load
8 NC 7 Clock
Power SMB (I
2
C) Connector
Power System Management Bus (I
2
C)
Connector (JPI
2
C1) monitors power sup-
ply, fan and system temperatures. See
the table on the right for pin denitions.
PWR SMB
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 PWR Fail
4 Ground
5 +3.3V
C
D
E
A
