Supero X9SKV-1125 User Manual

Chapter 2: Installation
2-11
Power Button
1
LAN5 (Link/Activity) LED
Reset Button
2
HDD LED
FP Power LED
3.3V SB
3.3V
3.3V SB
OH/Fan Fail LED
Ground
Ground
1920
Key
Ground
NMI
Key
3.3V SB
LAN6 (Link/Activity) LED
Power Fail
3.3V
3.3V
Front Control Panel Pin Denitions
Power LED
The Power LED connection is located on
pins 15 and 16 of JF1. Refer to the table
on the right for pin denitions.
Power LED
Pin Denitions (JF1)
Pin# Denition
15 +3.3V
16 Ground
POWER LED
HDD LED
LAN5
LAN6
A
B
A
HDD LED
The HDD LED connection is located on
pins 13 and 14 of JF1. Attach a hard
drive LED cable here to display disk
activity (for any hard drive activities on
the system, including Serial ATA and
IDE). See the table on the right for pin
denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 +3.3V
14 HD Active
B

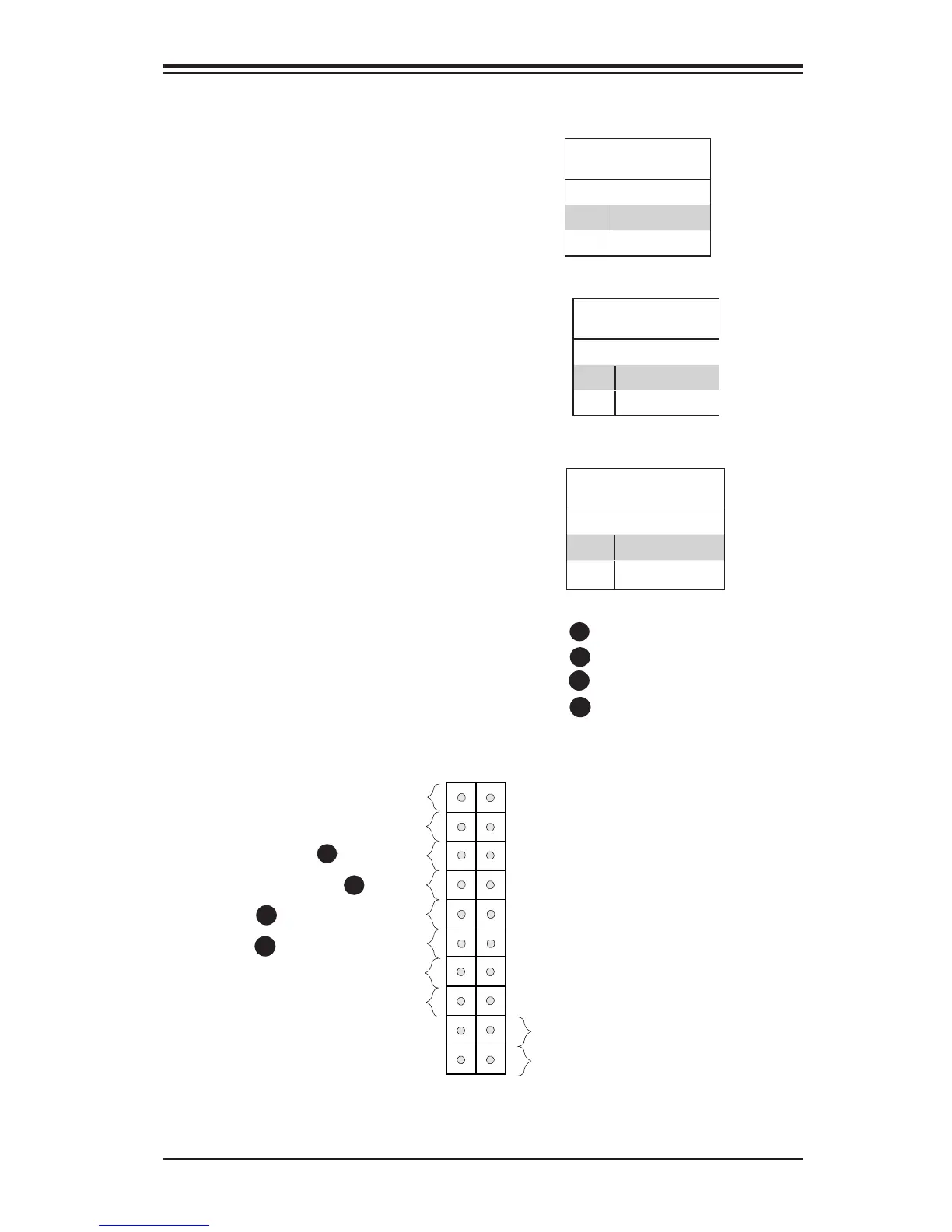

JF1 Header Pins
LAN5/LAN6 (NIC) LED Indicators
The NIC (Network Interface Controller or
Ethernet Controller) LED connection for
LAN port 5 is located on pins 11 and 12
of JF1, and the LED connection for LAN
Port 6 is on Pins 9 and 10. Attach the
LAN/NIC LED cables to display network
activity. Refer to the table on the right
for pin denitions.
NIC 1/2 LED
Pin Denitions (JF1)
Pin# Denition
11/9 Vcc
12/10 Ground
C
D
C
D
