Supero X9SPV-F - The so DIMM Socket

Chapter 2: Installation
2-5
Insert the SO DIMM
module straight down.
To Remove:
Use your thumbs to
gently push the side
clips near both ends
away from the module.
This should release
it from the slot. Pull
the SO DIMM module
upwards.

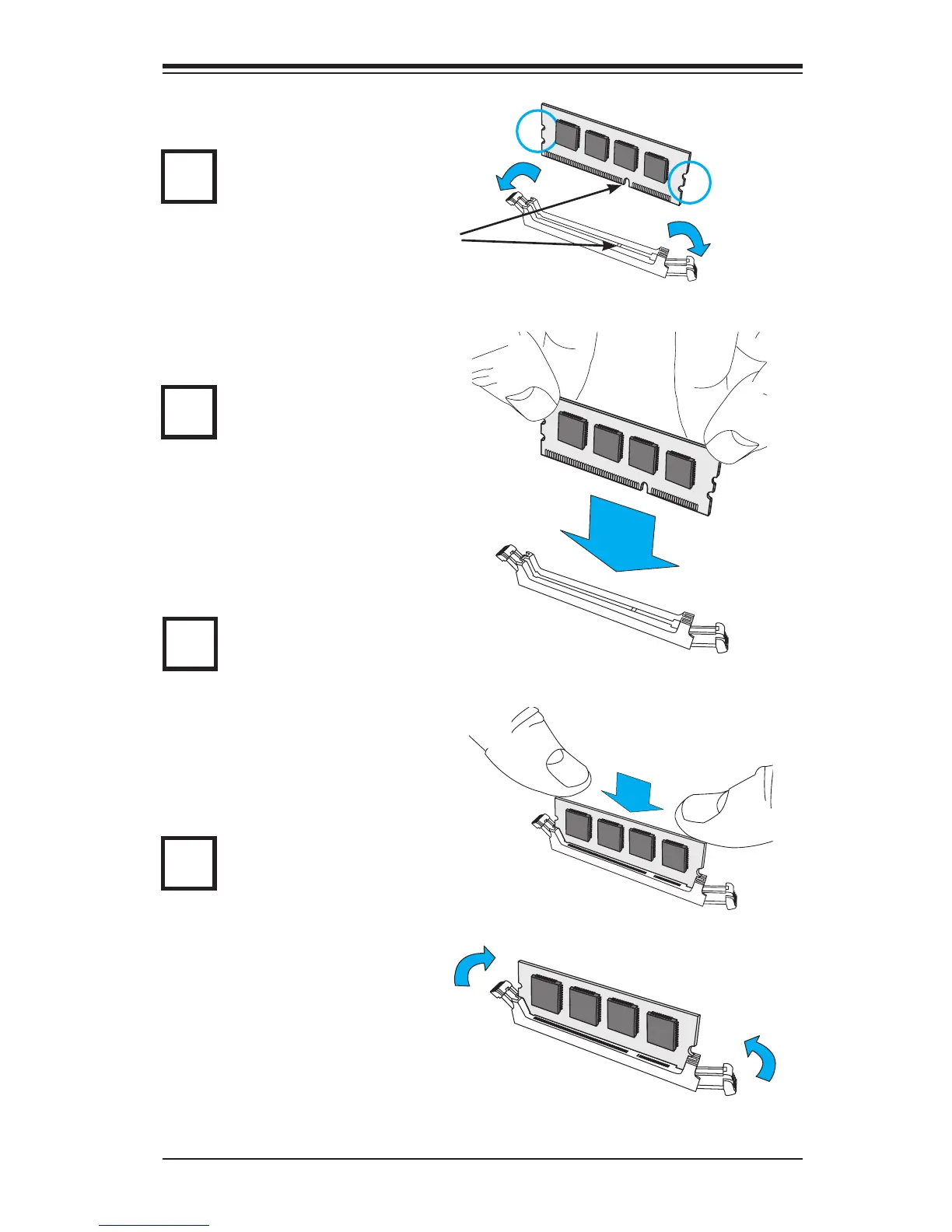

The SO DIMM Socket
Position the SO DIMM
module's bottom key
so it aligns with the
receptive point on the
slot. Take note of the
module's side notches
and the locking clips
on the socket.
Press down until the
module locks into
place. The side clips
will automatically
secure the SO DIMM
module, locking it into
place.
1
2
3
4
Align
