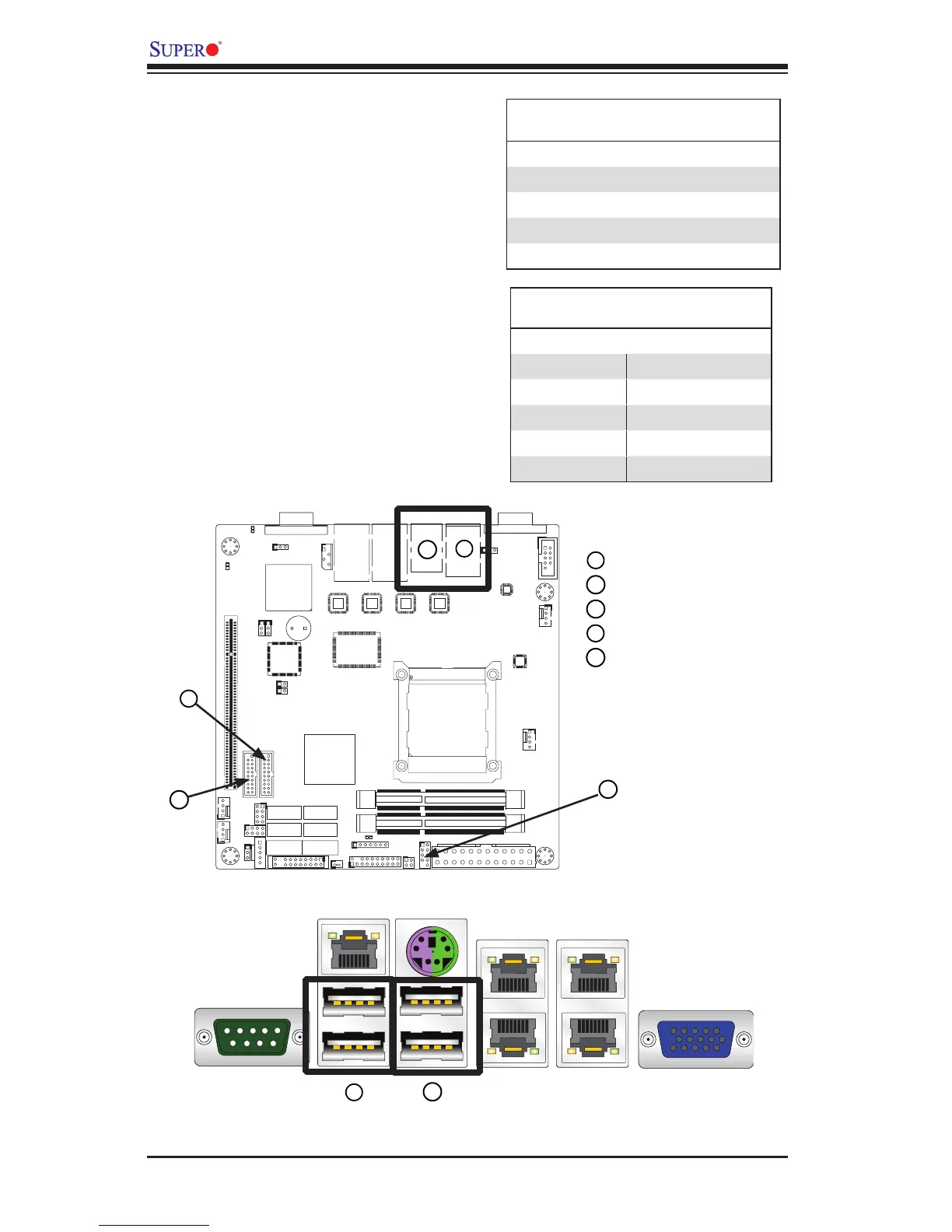

Supero X9SPV-F User Manual

2-8
X9SPV Motherboard Series User's Manual
Backpanel USB 4/5
Backpanel USB 8/9
USB 6/7 header
USB 3.0 0/1 header
USB 3.0 2/3 header
Universal Serial Bus (USB)
Four Universal Serial Bus ports (USB 4/5,
8/9) are located on the I/O backpanel.
Additionally, one USB 2.0 header (USB
6/7) and two USB 3.0 headers (USB 0/1,
2/3) are also located on the motherboard
to provide front chassis access. (Cables
are not included). See the tables on the
right for pin denitions.
Back Panel USB
Type A USB 10 Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN 6 USB_PN
3 USB_PP 7 USB_PP
4 Ground 8 Ground
Front Panel USB 2.0
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 6 +5V
2 USB_PN 7 USB_PN
3 USB_PP 8 USB_PP
4 Ground 9 Ground
5 NA 10 Key
4
3
1
2
5
1
2
1
JWD1
UID
VGA
JWP1:WRITE PROTECT
PWR I2C
U60
I-SATA0I-SATA1
JVGA1
JIPMB1
T-SGPIO2T-SGPIO1
JSD1
I-SATA5
I-SATA2
I-SATA4
I-SATA3
J1 J3
F6
JCOM2
J20USB1
SP1
LED2
LED1
LED3
U21
U7
U10
U22
U6
JDIMM1
JDIMM2
JCOM1
FAN2FAN3
FAN1
FAN4
U26
JPW1
JPI2C1
JPK1
U3
JTPM1
JLAN1JLAN2
MH7
MH6
MH2
MH4
JD1
JF1
JP1
JPUSB1
JPB1
JWP1
JL1 JOH1
MH4
U57
X9SPV-F
JTPM1:TPM/PORT80
DOM POWER
P1-DIMMB1
USB8/9
IPMI
JSD1:SATA
COM2
USB6/7
LAN2/4 LAN1/3
P1-DIMMA1
COM1
USB4/5
KB/MOUSE
Back Panel Connectors
3
2
1
4
5
