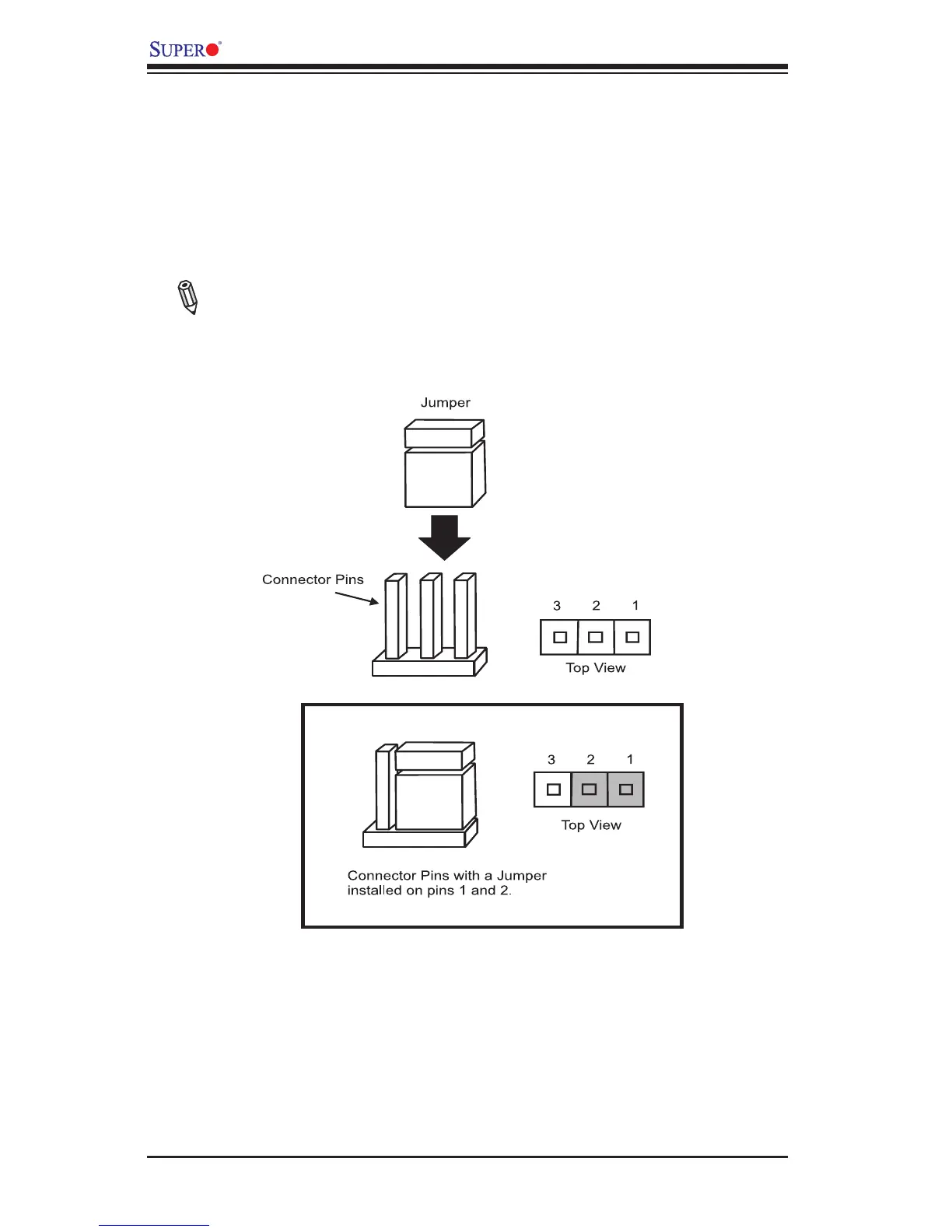

2-22
X9SPV Motherboard Series User's Manual
2-6
Jumper
Settings
Explanation
of
Jumpers
T
o
modify
the
operation
of
the
motherboard,
jumpers
can
be
used
to
choose
between
optional
settings.
Jumpers
create
shorts
between
two
pins
to
change
the
function
of
the
connector
.
Pin
1
is
identied
with
a
square
solder
pad
on
the
printed
circuit
board.
Note:
On
two pin
jumpers, "Closed" means
the jumper is
on and
"Open" means
the
jumper
is
of
f
the
pins.
