Before you install the sensor, make sure that all components listed
below are included in your package.
Qty Description Item No.
1 S430 sensor S695 4300 or S695 4302
1 Sealing ring NA
1 Alignment key NA
2 Depending on orders:
M12 plug or M12 cable
Plug: C219 0059
Cable: A553 0104/A553 0105/A553 0146
1 Instruction manual NA
1 Calibration certificate NA

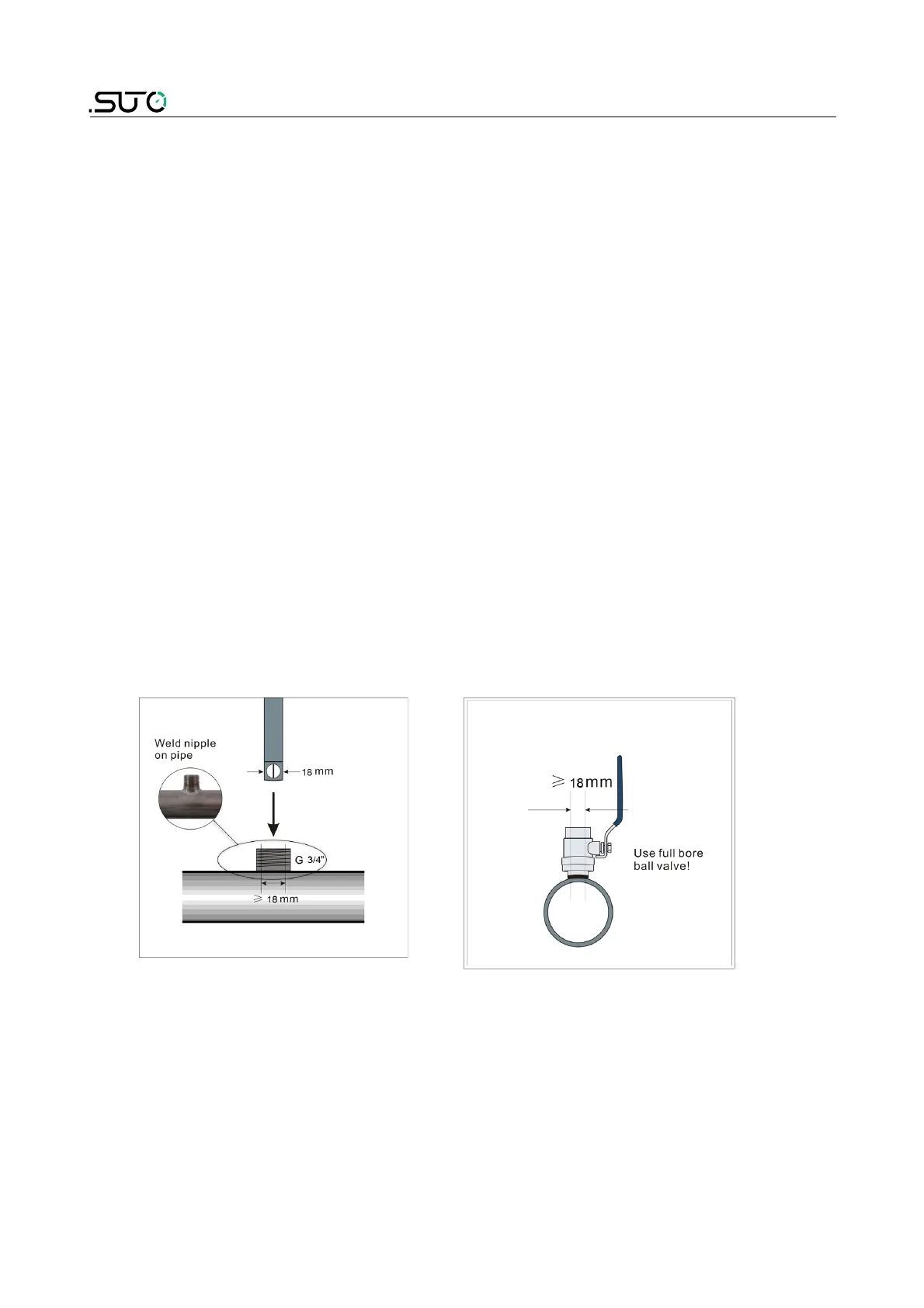

8.1 Installation requirements
To install the sensor, a ball valve and a nozzle are needed with the
following the requirements:
• The inner thread must be G 3/4”.
• The diameter of the nozzle must be ≥ 18 mm. Otherwise the shaft
can not be inserted in.
16 S430
