SUTO S430 - Center Installation

8 Installation

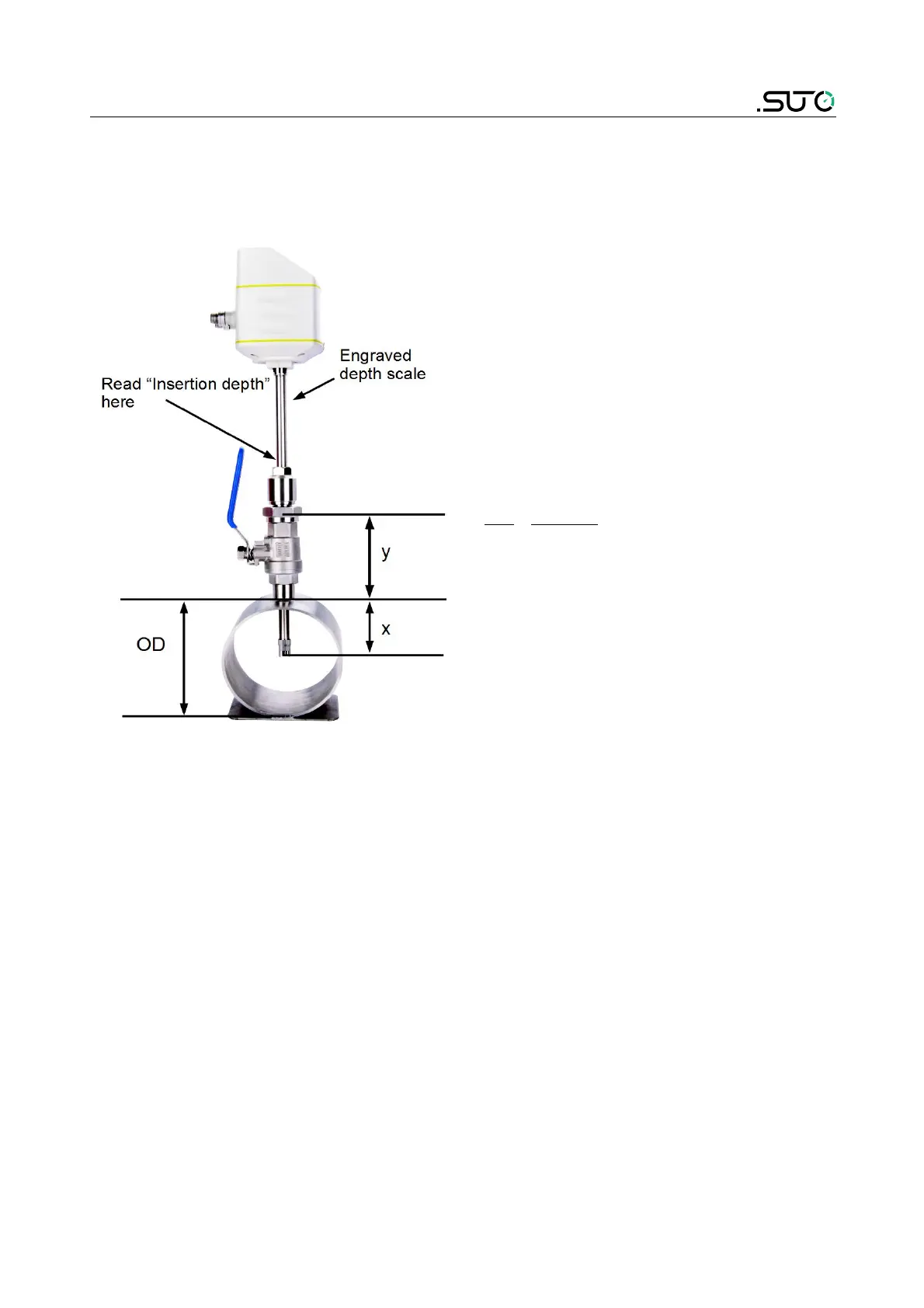

8.3.1 Center installation
Center installation is the default and recommended installation type.
Insertion depth= x+ y+100
x is the wall thickness of pipe
y = Height of the ball valve
Calculation example:
A 2”-diameter pipe and an 87 mm-
height ball valve:
OD=60.3 mm
OD
2
=
60.3 mm
2
=30.15 mm
Height of Valve=87 mm ;
Insertion depth
= 30.15 mm +87 mm=117.15 mm
S430 21
