SUTO S430 - Insertion Angles

8 Installation
• Shut-off valve • Filter or similar (unknown
objects)

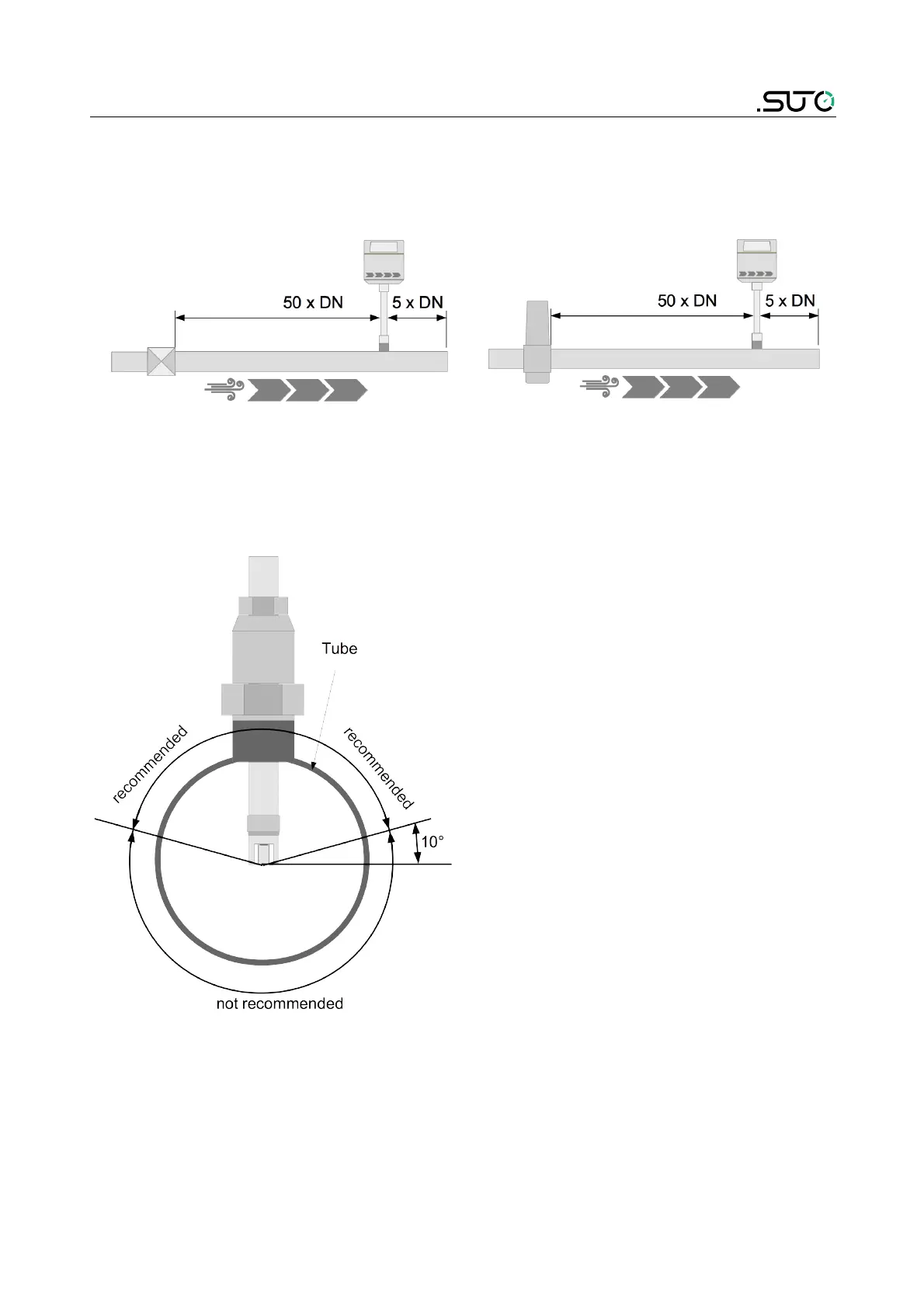

8.2.2 Insertion angles
Insertion into a horizontal pipe
As shown in the left figure, the
angle to the horizontal level must
be >10°. A horizontal installation
is NOT permitted.
Please install the sensor only in
the recommended area.
S430 19
