10 Sensor signal outputs
10 Sensor signal outputs
10.1 Analog output
The sensor can provide an analogue output with the range of 4...20 mA.
This output can be scaled to match a desired measuring range.
Standard is the range from 0 to max.
The corresponding flow ranges to different pipe sizes can be found on
page 45. For other ranges, please contact the manufacturer.

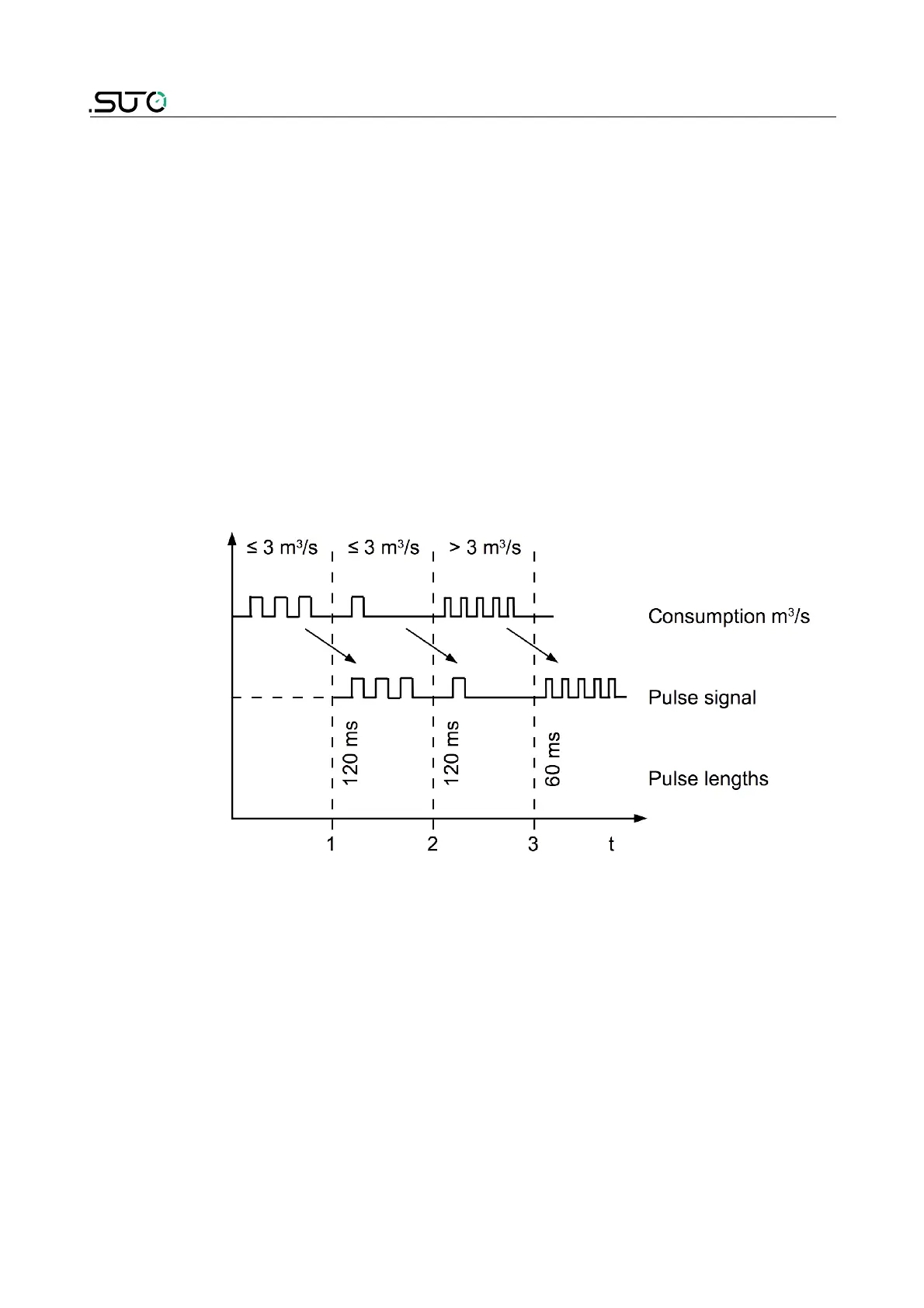

10.2 Pulse output
The sensor sends out one pulse per a consumption unit by default. This
pulse output can be connected to an external pulse counter to count the
total consumption. The number of m
3
per second are accumulated and
indicated after one second. Pulse length depends on consumption rate.
38 S430
