9 Configuration
Home screen and icons

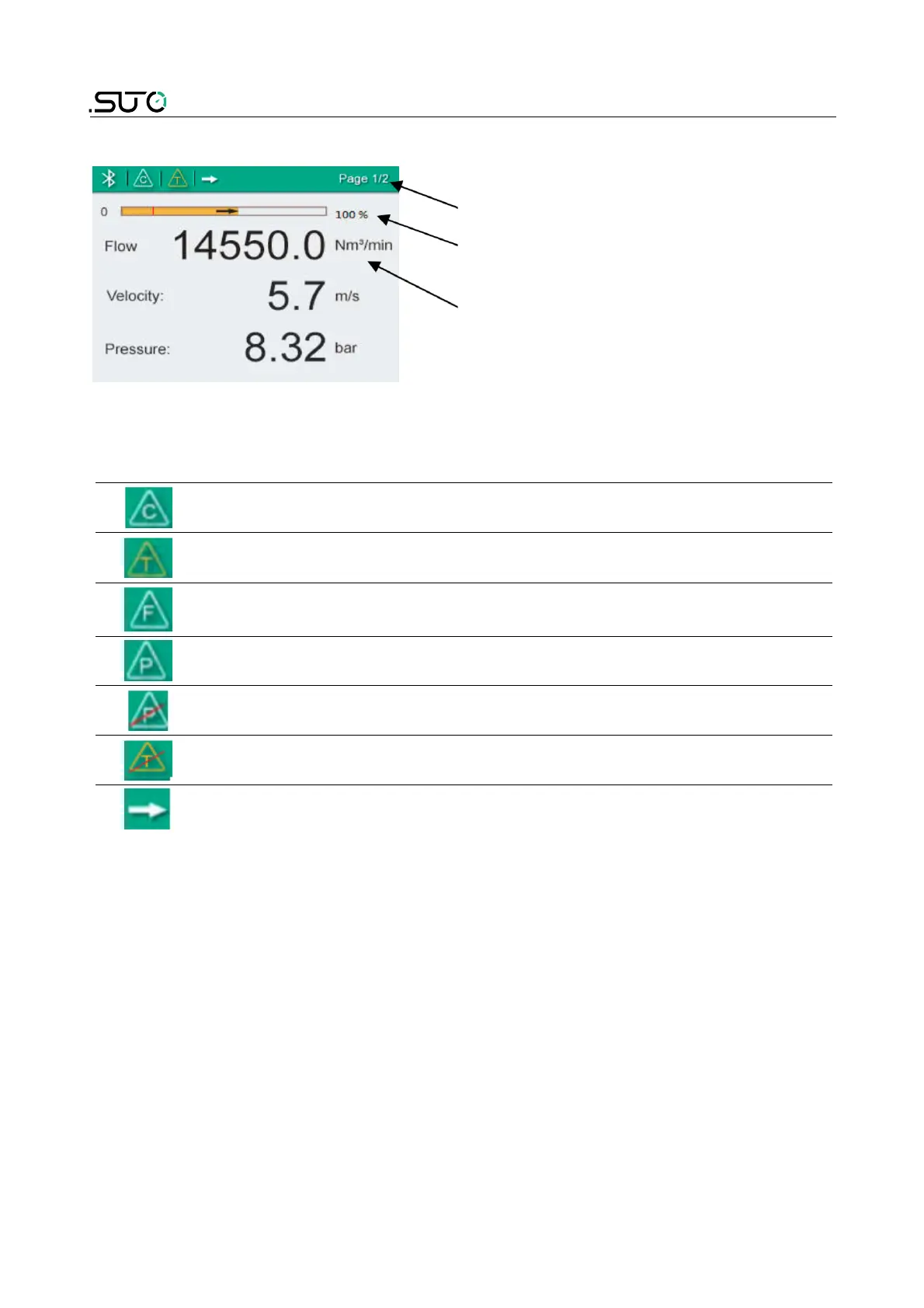

Home screen:
• Status bar
• Moving bar to indicate flow and
cut-off value
• Measuring values
Icons shown in the status bar indicates the status or warnings for the
sensor in service. The following table provides descriptions for these
icons.
Calibration expired
Temperature over operating range
Flows over measuring range
Pressure over operating range
Pressure sensor damaged
Temperature sensor damaged
Flow direction
