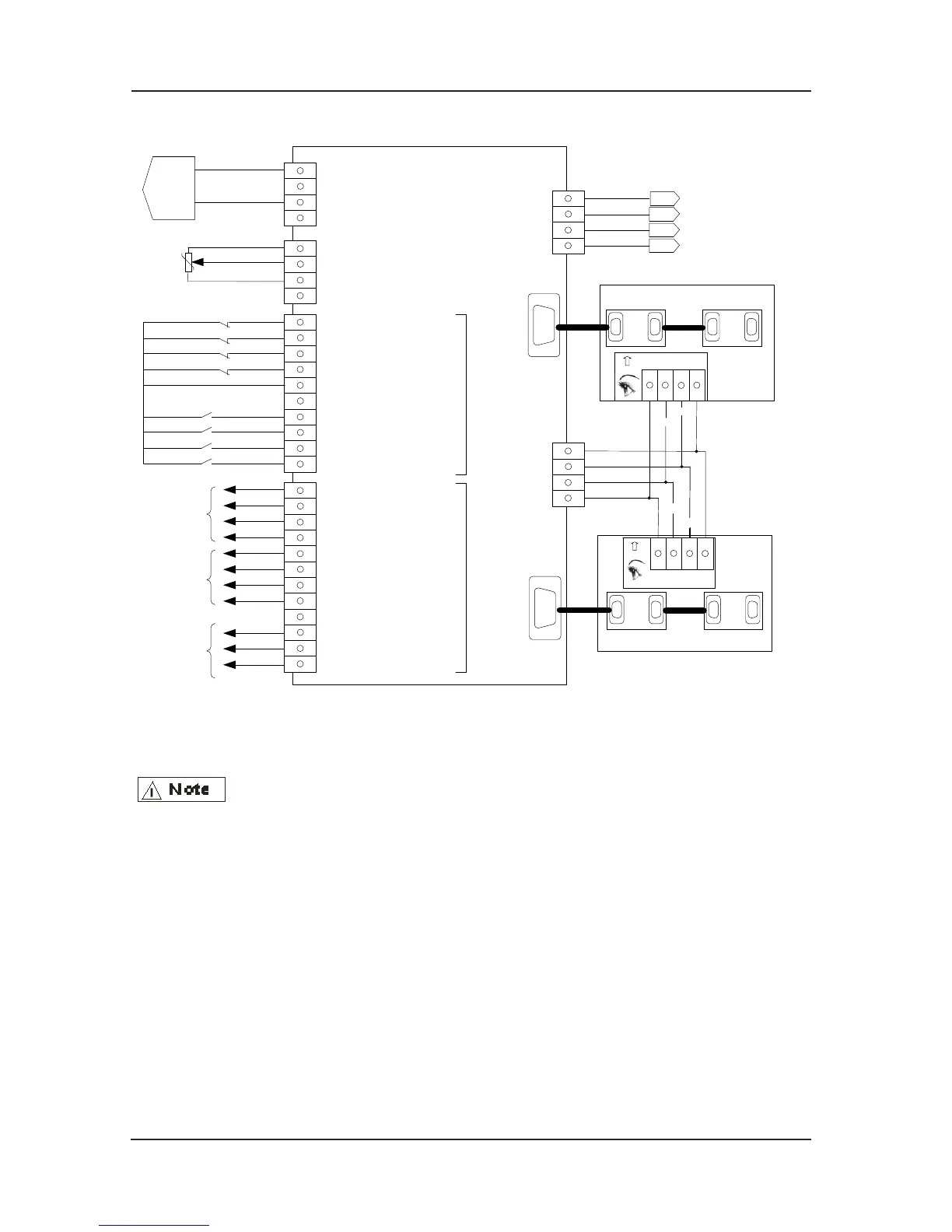

Fig 7-3 Car top board commendatory wiring
Adopt the connecting mode of upward drawing. The input and output terminal setting over load
of the F5 group is N.O. type, and F5-25 setting parameter is 64.
Add 3 to the default value if the light curtain1 and light curtain 2 are N.O., otherwise it 1)
won’t change.
Add 12 to the former step if the open door limit 1 and open door limit 2 are N.O. , 2)
otherwise it won’t change.
If the wires of close door limit 1 and close door limit 2 have been connected and are
N.O., add 48 to the last step, otherwise it won’t change.
If the full load is N.C., minus 6
4 to the last step, otherwise it won’t change.
If the over load switch is N.O., add 128 to the last step, otherwise it won’t change.
7.3 NICE3000 Integrated controller without weighing application notes
Matching NICE3000 can adapter ERN1387 (SIN / COS type) rotary encoder by Matching
MCTC-PG-C or MCTC-PG-E，For permanent magnet synchronous motor control.The elevator
can achieve Pre-torque compensa
tion function automatically without weighing
