3.3 Direction for use of HCB
HCB is one of important interfaces that are used to connect NICE3000 controller to users. HCB
can accept user’s call-up and show lift’s current oor, running direction and so on. At the
same time HCB can be used for car cage displaying panel (the detail is shown in section 9.3.3).
HCB is diversified. In order to meet all kinds of needs, it is classified into several differ
ent forms,
whose types are: MCTC-HCB-B no display output hall call; MCTC-HCB-F vertical dot-matrix
hall call; MCTC-HCB-H and MCTC-HCB-J. horizontal dot-matrix hall call. We will only introduce
the using method and attention items of MCTC-HCB-H, MCTC-HCB-F, and MCTC-HCB-J.
3.3.1 MCTC-HCB-B
The hall call board HCB is one of the main interfaces between the NICE 3000 controller and
users
in order to meet
the needs of different customers and enrich the product range, we develop the
non-display hall call board – MCTC-HCB-B
3.3.1.1External view

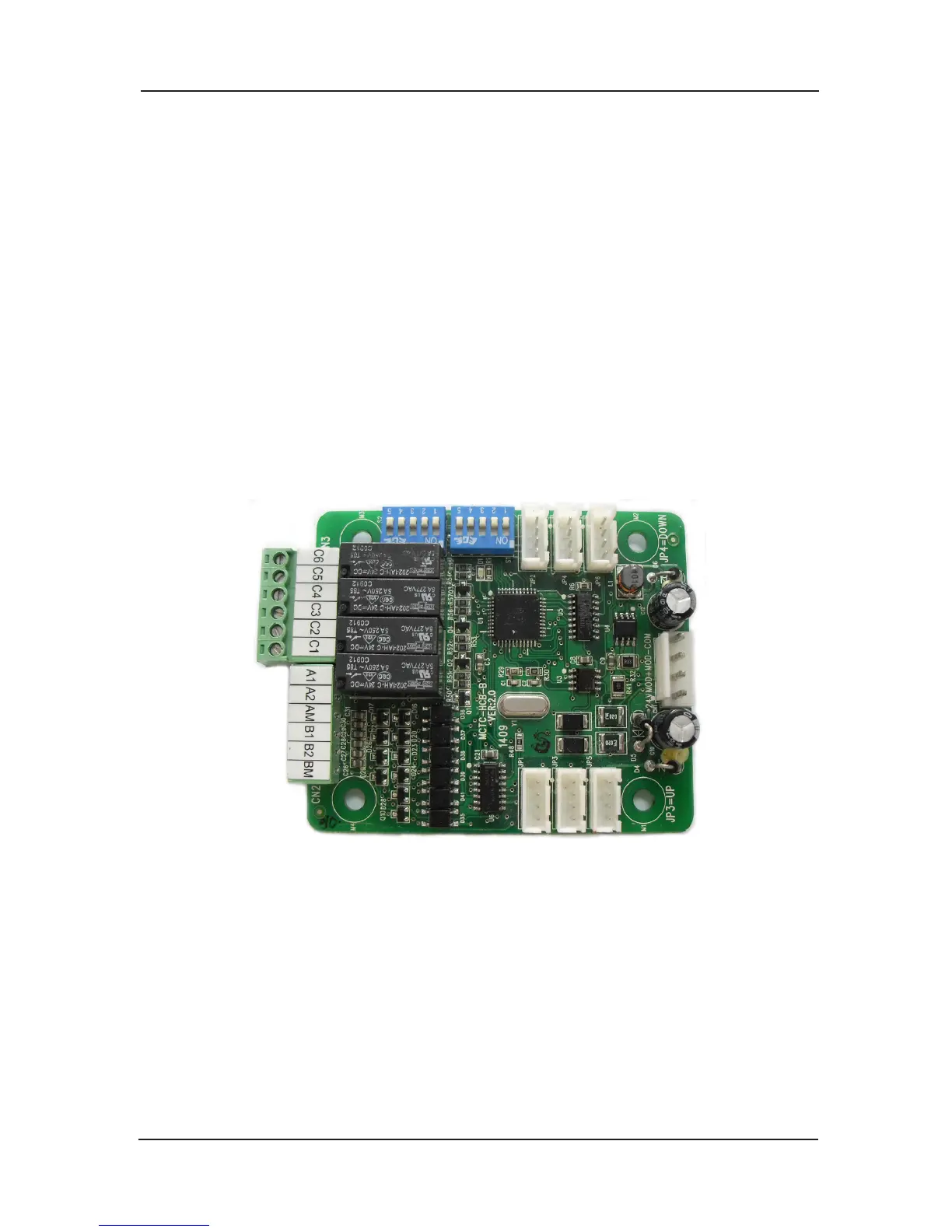

Fig 3-7 External view of MCTC-HCB-B
