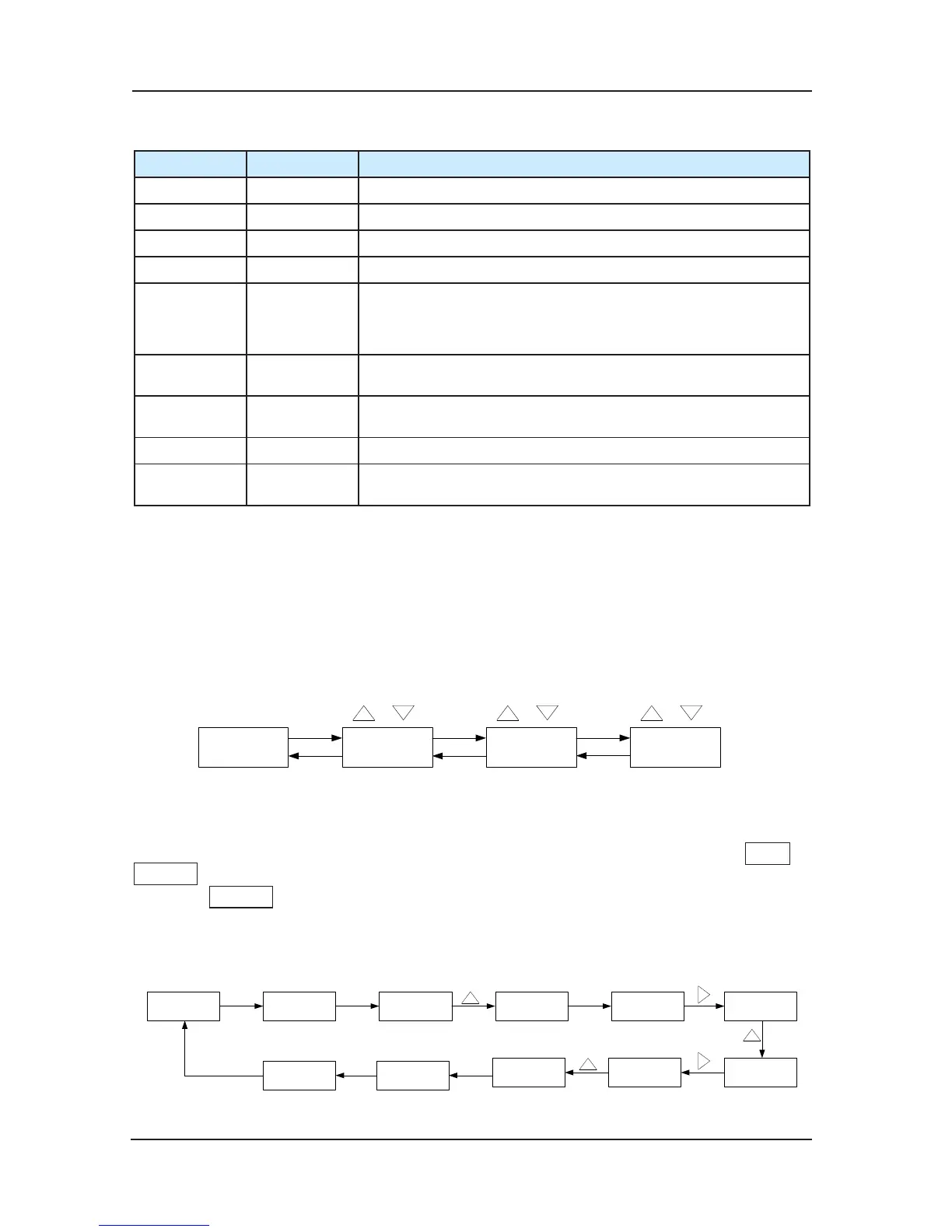

Instruction of buttons on the operation panel keyboard:4)
key name function
PRG Program key Enter or exit the primary menu and delete quick menu
ENTER Confirm Enter the menu level by level and confirm setting parameter
∧ Up Increase of date and function code
∨ Down Decrease of date and function code
>> Shift
It can select the displaying parameters circularly on the stop
displaying state and the running displaying state. It can also
select the modification bit of the pa
rameters when modifying the
parameters.
RUN Running
In the keypad operation mode, it is used for running and
operating the controller.
STOP/
RESET
Stop/reset
The key is for stopping the running when the controller is in the
running state, and for resetting the faulty status.
QUICK Quick key Enter or exit the quick menu
MF.K
Multi-function
selection
Display and remove of error message
3.4.3 Viewing and Operation Instruction of Function Code
3-level menu operational procedures:1)
NICE3000 adopt 3-level menu to conduct the parameter setting. It’s convenient to query and
modify function code and parameter.
3-level menu include: function parameter group (first level) →function code (second level)
→function code setting (third level). Operation procedures are as follows (Fig 3-23):
Fig 3-23 level menu operational procedures
Instruction：When in 3rd menu, system can be backed to 2nd menu by pressing PRG or
ENTER . The difference between the two ways are as follows：it saves parameter after
pressing ENTER , then back to next function code in 2nd menu; And it does not save
parameter after pressing PRG , then keep staying at the current function code in 2nd menu.
Example: Change f
unction code F0-06 from 50.00Hz to 15.00Hz (bold means ash bit).
