Structure of the control system and the component introduction NICE3000 User Manual
62

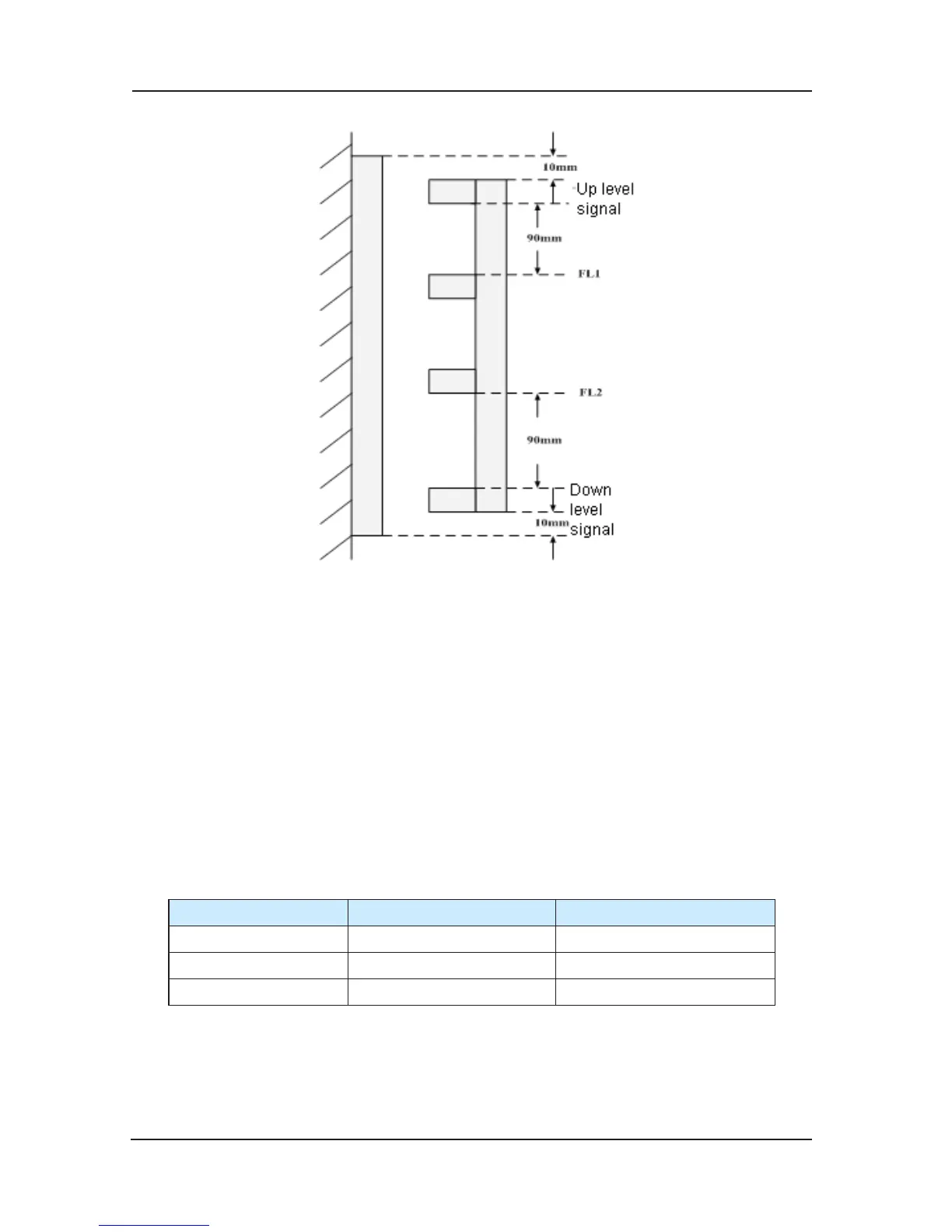

Fig 3-34 Up/Down re-leveling door area sensor installation
Parameter setting specication 6)
Different on-site applications:
4 on-site sensor signals, namely the up leveling signal, up re-leveling door area signal a)
input (FL1), down re-leveling door area signal input (FL2), down leveling.
Disposal method: the X1,X2 that the leveling signals connect to the NICEC 3000 control
system, the up re-level
ing door area signal input to FL1, the down re-leveling door area signals
input to FL2, and they are all N.O settings, if the on-site sensor is N.C. setting, please use the
middle relay to switch to N.O inputting. When the elevator up run, detect the up leveling signal,
FL1 and FL2 signals, and processed by the NICE 3000 system to realize the advanced door-
opening; same for the down running.
Relat
ive function codes setting
NICE3000 I/O Parameter setting
F5-02 X2 03
F5-08 X8 22
F5-30 Y3 03
In the application with NICE 3000 system, accordingly as the users manual, set the F5-02 as
03 door area N.O. inputting, F5-08 as 22 advanced door-open output feedback N.O. inputting,
F5-30 as 3 advanced door-open contactor outputting.
3 on-site sensor signals, namely the up leveling signal, door area signal, down leveling b)
