6-1-36 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)

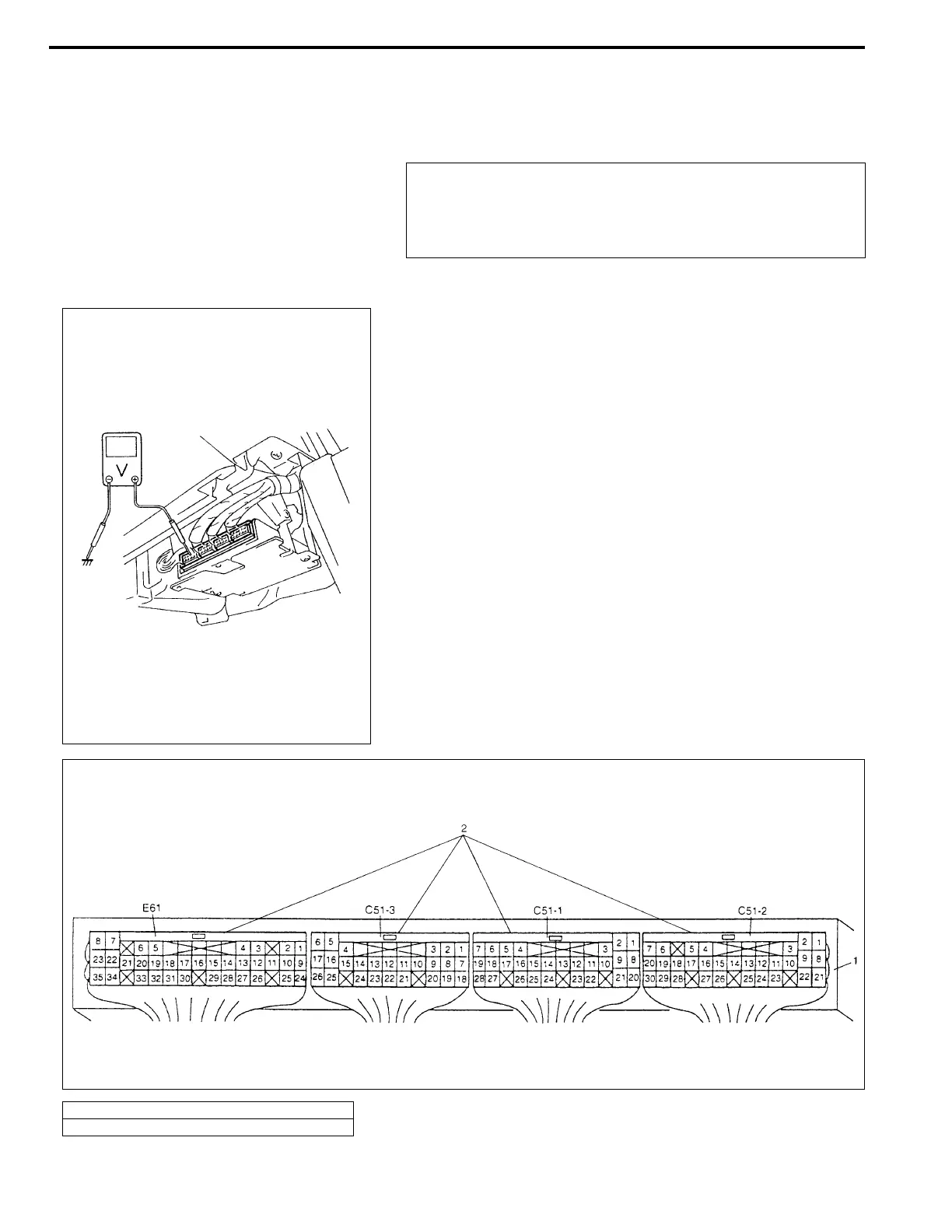

Inspection of PCM (ECM) and its Circuits
PCM (ECM) and its circuits can be checked at PCM (ECM) wiring
couplers by measuring voltage and resistance.
VOLTAGE CHECK
1) Remove PCM (ECM) cover from bracket referring to PCM
(ECM) REMOVAL.
2) Check voltage at each terminal of couplers connected.
CAUTION:
PCM/ECM cannot be checked by itself. It is strictly pro-
hibited to connect voltmeter or ohmmeter to PCM (ECM)
with couplers disconnected from it.
NOTE:
As each terminal voltage is affected by the battery volt-
age, confirm that it is 11 V or more when ignition switch
is ON.
1. PCM (ECM)
2. PCM (ECM) connector (Viewed from harness side)
To Next Page
