7B1-50 AUTOMATIC TRANSMISSION (4 A/T)
4) Blow air into fluid hole in O/D case (2) and remove brake pis-
ton (1).
5) Remove brake piston inner ring and brake piston outer ring
from brake piston.
6) Unsnap seal ring (1).
7) Remove 2 seal rings (1).
Forward clutch
NOTE:
Be careful not to open seal ring more than necessary.

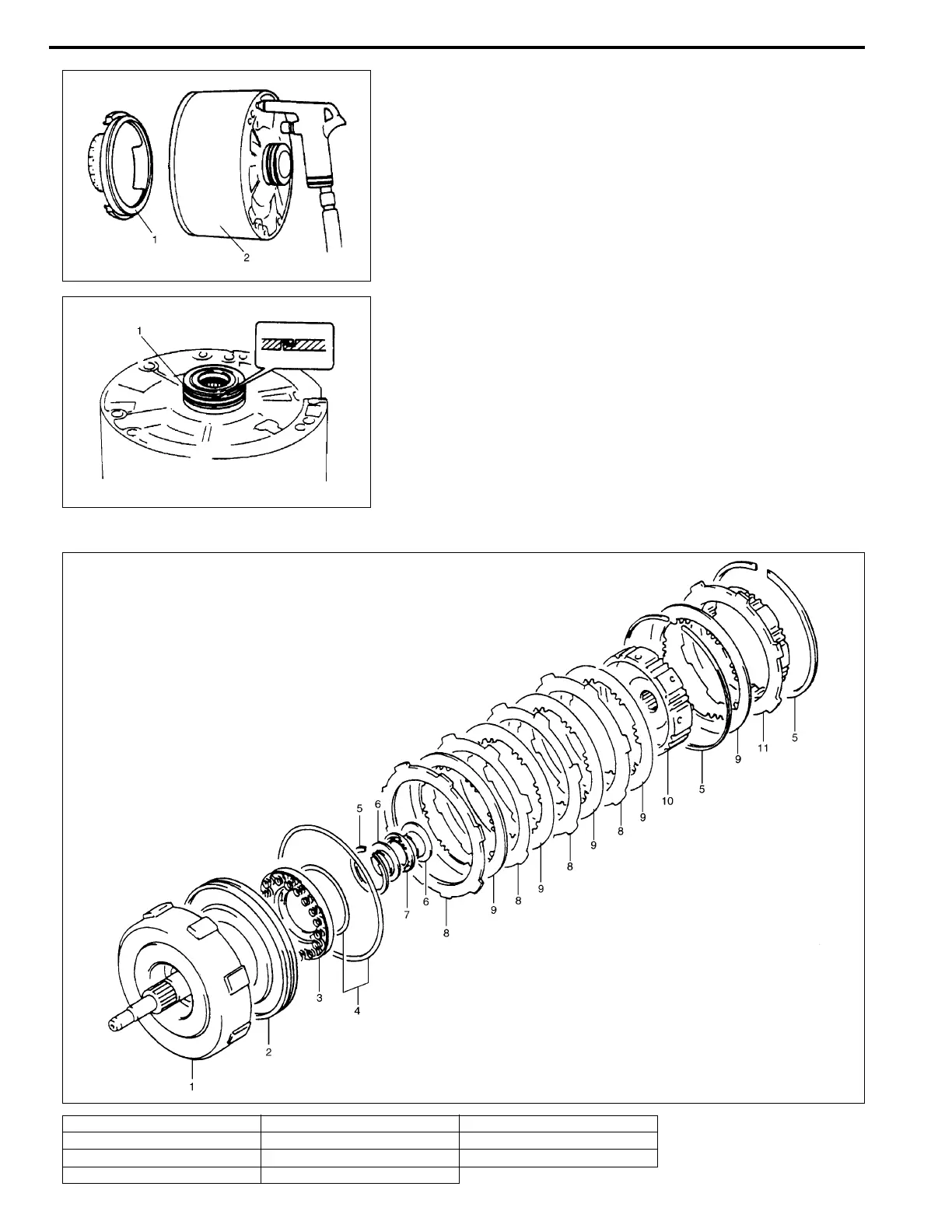

1. Input shaft 5. Retaining ring 9. Clutch disc
2. Piston 6. Bearing race 10. Froward clutch hub
3. Return spring 7. Bearing 11. Direct clutch input hub
4. O-ring 8. Clutch plate
