DIFFERENTIAL (REAR) 7F-3
On-Vehicle Service

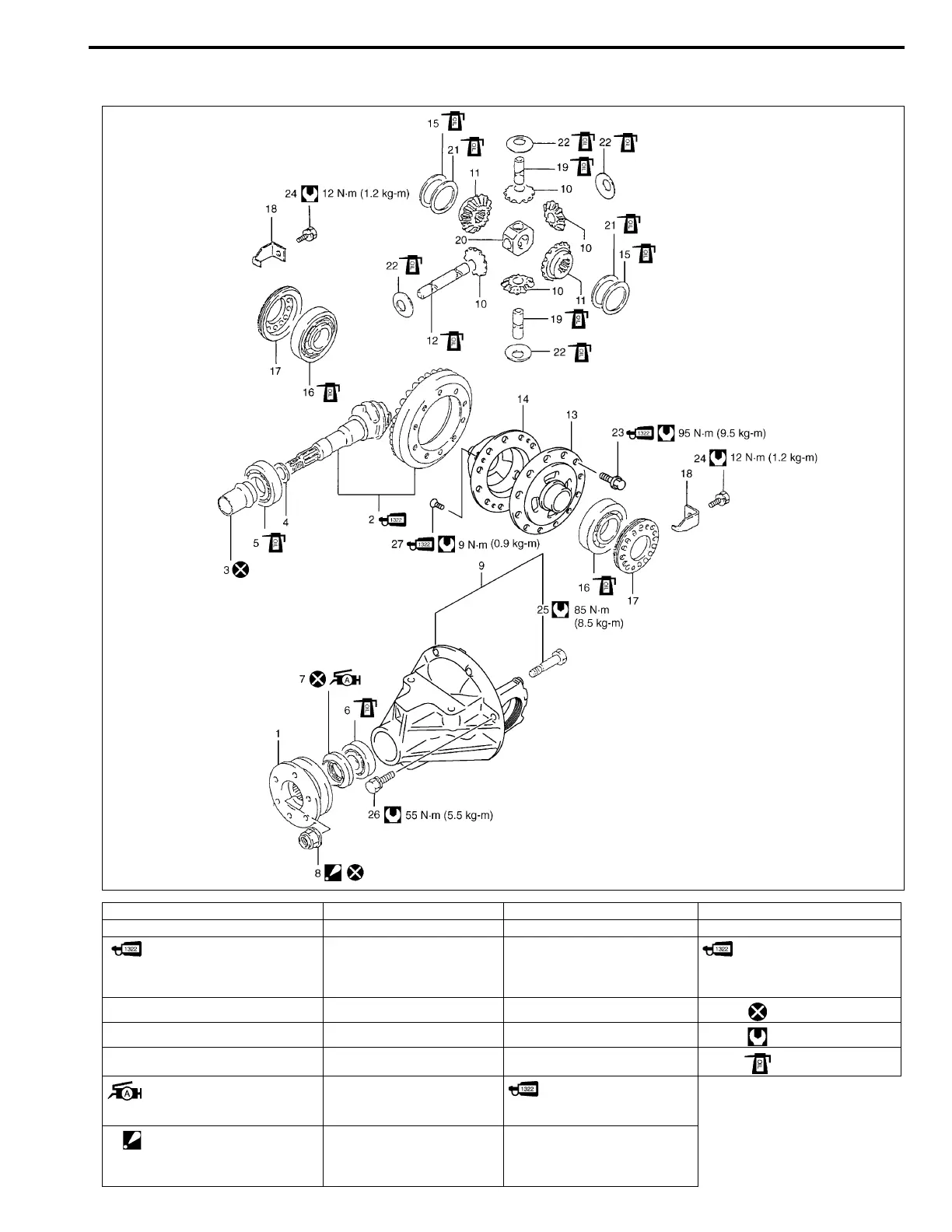

1. Universal joint flange 9. Differential carrier assembly 17. Bearing adjuster 25. Bolt
2. Hypoid gear set 10. Differential pinion 18. Lock plate 26. Bolt
3. Bevel pinion spacer
Apply thread lock cement
99000-32110 referring to
“DIFFERENTIAL CASE” in
this section.
11. Differential gear 19. Pinion shaft No.2 27. Differential case screw :
Apply thread lock
cement 99000-32110 to
thread part of bolt.
4. Shim 12. Pinion shaft No.1 20. Pinion joint Do not reuse.
5. Rear bearing 13. Differential left case 21. Spring washer Tightening torque
6. Front bearing 14. Differential right case 22. Washer Apply differential oil.
7. Oil seal :
Apply grease 99000-25010
to oil seal lip.
15. Thrust washer 23. Bevel gear bolt :
Apply thread lock
cement 99000-32110
to thread part of bolt.
8. Flange nut :
After tightening nut so as
rotation torque of bevel pin-
ion shaft to be in specified
value, caulk nut securely.
16. Differential side bearing 24. Bolt
To Next Page
