7E-8 DIFFERENTIAL (FRONT)

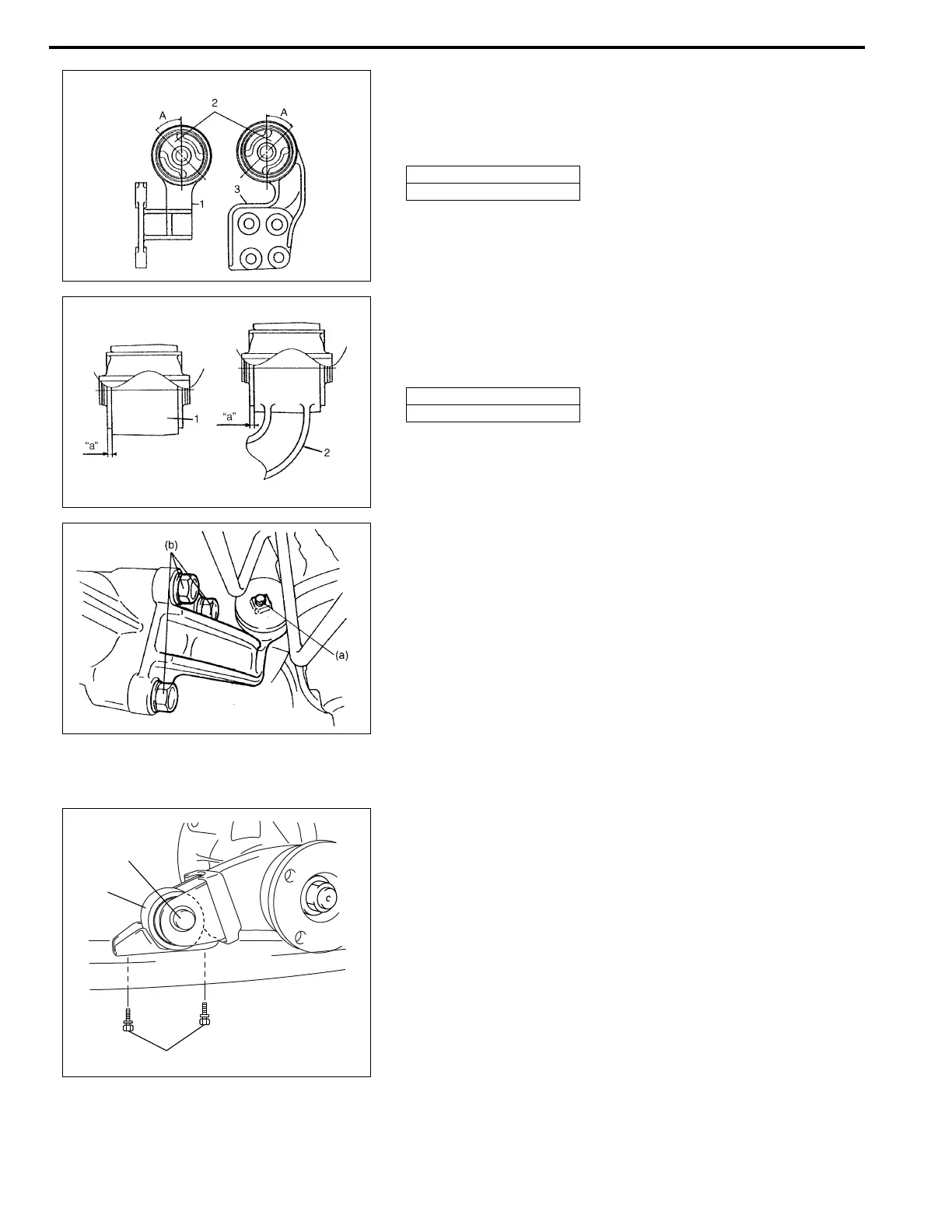

6) Position slit in each bush (2) as shown when press-fitting it.
Bush instillation position (angle “A”) :
45
°
(slit alignment)
7) Position each bush to bracket as shown in the figure
Bush installation position (length “a”) :
3.0 mm (0.12 in.)
8) Tighten differential front mounting and bracket bolt to speci-
fied torque for reinstallation.
Tightening torque
Front mounting bolt (a) :
85 N·m (8.5 kg-m, 61.5 lb-ft)
Front mounting bracket bolt (b) :
50 N·m (5.0 kg-m, 36.5 lb-ft)
Rear Mounting for Front Differential Carrier
REMOVAL AND INSTALLATION
1) Lift up vehicle and remove rear mounting bracket (3) by
removing rear mounting bolt (1) and rear mounting bracket
bolts (2).
2) Check mounting rubber for damage or deterioration and
replace as necessary.
3) Tighten rear mounting bolts (1) and rear mounting bracket
bolts (2) to specified torque for reinstallation.
Tightening torque
Rear mounting bolt (a) :
85 N·m (8.5 kg-m, 61.5 lb-ft)
Rear mounting bracket bolts (b) :
50 N·m (5.0 kg-m, 36.5 lb-ft)
1. Front mounting bracket L
3. Front mounting bracket R
1. Front mounting bracket R
2. Front mounting bracket L
1, (a)
2, (b)
3
