10B-36 AIR BAG SYSTEM
DTC B1035 – RH Forward Sensor Circuit Open or Short to Ground
DTC B1036 – RH Forward Sensor Circuit Short Between Two Wires or Short to
Power Circuit
DTC B1037 – LH Forward Sensor Circuit Open or Short to Ground
DTC B1038 – LH Forward Sensor Circuit Short Between Two Wires or Short to
Power Circuit

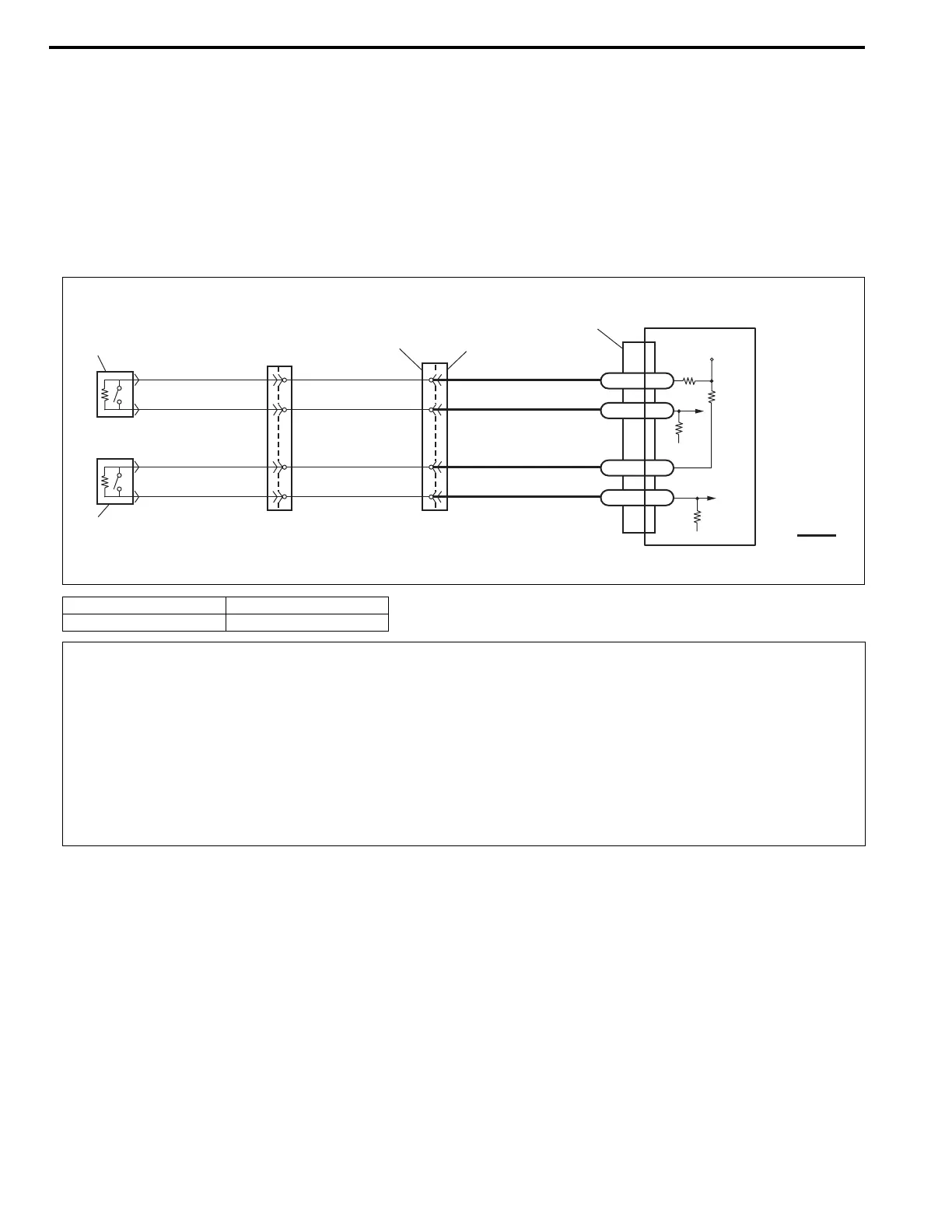

WIRING DIAGRAM
DTC WILL SET WHEN
DTC B1035 and B0137 :
The voltage measured at forward sensor circuit (terminal Q01-18, Q01-14) is below a specified value for speci-
fied time.
DTC B1036 and B0138 :
The voltage measured at forward sensor circuit (terminal Q01-18, Q01-14) is above a specified value for speci-
fied time.
TABLE TEST DESCRIPTION
DTC B1035 and B1037 :
STEP 1 : Check whether malfunction is in forward sensor.
STEP 2 : Check if forward sensor circuit is open.
STEP 3 : Check if forward sensor circuit is shorted to ground.
[A] : Air bag harness 2. RH Forward sensor
1. LH Forward sensor 3. SDM
5V
ORN/GRN
ORN/BLU
YEL/GRN
YEL/BLU
ORN/GRN
ORN/BLU
YEL/GRN
YEL/BLU
ORN/GRN
ORN/BLU
YEL/GRN
YEL/BLU
“G27”
2
1
“Q02”
“Q01”
Q01-19
SL+
Q01-18
SL-
Q01-13
SR+
Q01-14
SR-
[A]
3
CAUTION:
• Be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK before starting diagnosis according to
flow table.
• When measurement of resistance or voltage is required in this table, use a tester along with a cor-
rect terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, refer to INTERMITTENT AND POOR CONNEC-
TIONS in this section.
• If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace
the wire harness, connector and terminal as an assembly.
