CRUISE CONTROL SYSTEM 8E-3
Cruise Control System
The cruise control system is a device which maintains a preset vehicle speed while driving at a high speed, e.g.,
on a highway. It allows the driver to drive his vehicle at a constant speed of 40 km/h (25 mile/h) or higher without
depressing the accelerator pedal (constant cruising). The system also has such functions as to change the vehi-
cle speed without operating the accelerator pedal (but using SET COAST and ACCEL RESUME switches), can-
cel cruise control (CANCEL switch) and resume the speed in memory automatically after cruise control is
cancelled (ACCEL RESUME switch). The system mainly consists of a vehicle speed sensor, an actuator
assembly incorporated with control module, cruise main switch, SET COAST switch, ACCEL RESUME switch
and CANCEL switch, etc.
Cruise control system circuit
Refer to Section 8A.

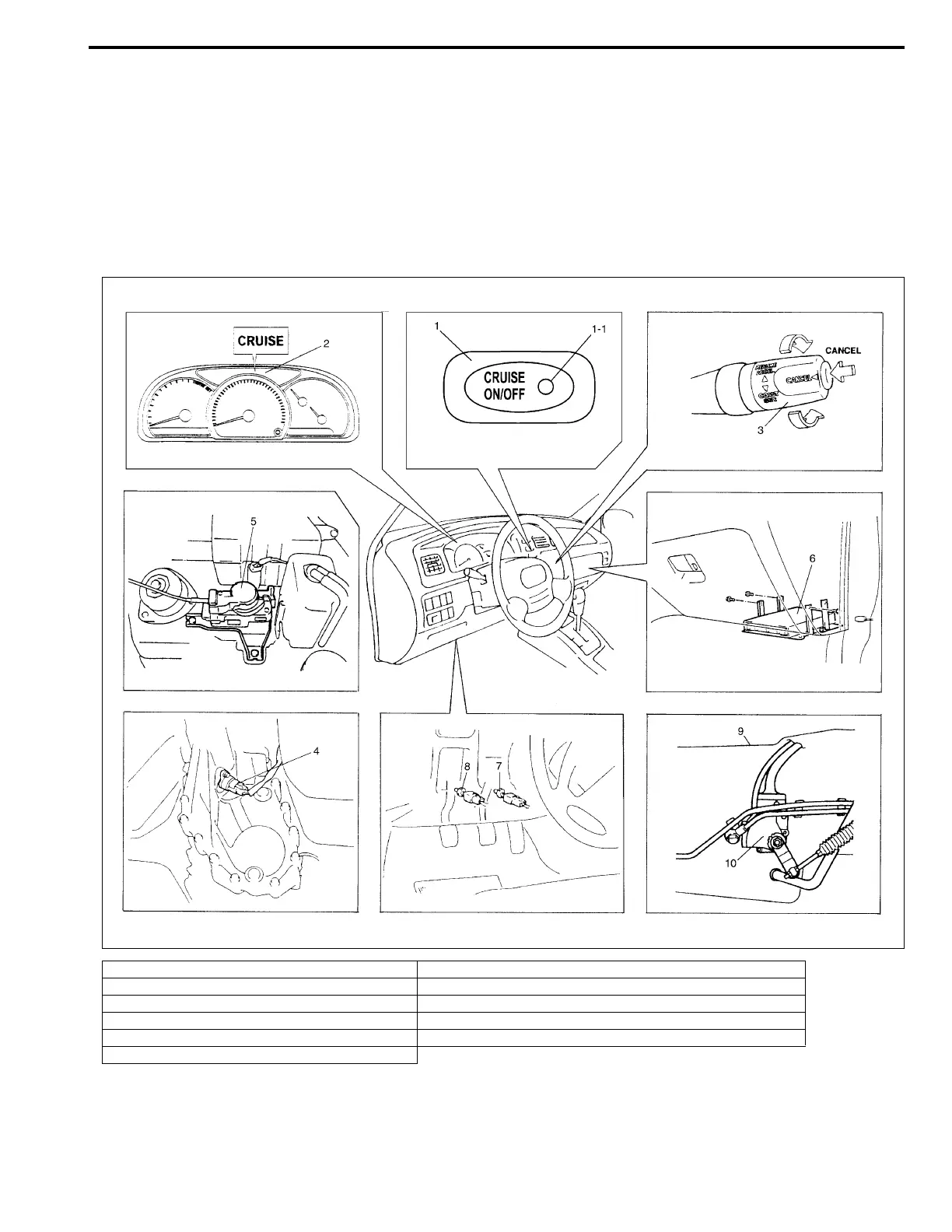

1. Cruise main switch 6. PCM / ECM
1-1 Cruise main switch indicator lamp 7. Stop lamp switch (with brake pedal position switch)
2. CRUISE Indicator light 8. Clutch pedal position switch (M/T vehicle)
3. SET COAST/ACCEL RESUME/CANCEL switch 9. Automatic transmission
4. Vehicle speed sensor 10. Transmission range switch (Park/Neutral position switch) (A/T vehicle)
5. Cruise control actuator assembly (with control module)
