9-2 BODY SERVICE
Glass, Windows and Mirror
Quarter Window
REMOVAL AND INSTALLATION
Refer to “WINDSHIELD” in this section as removal and installa-
tion procedures are basically the same. However, note the follow-
ings.

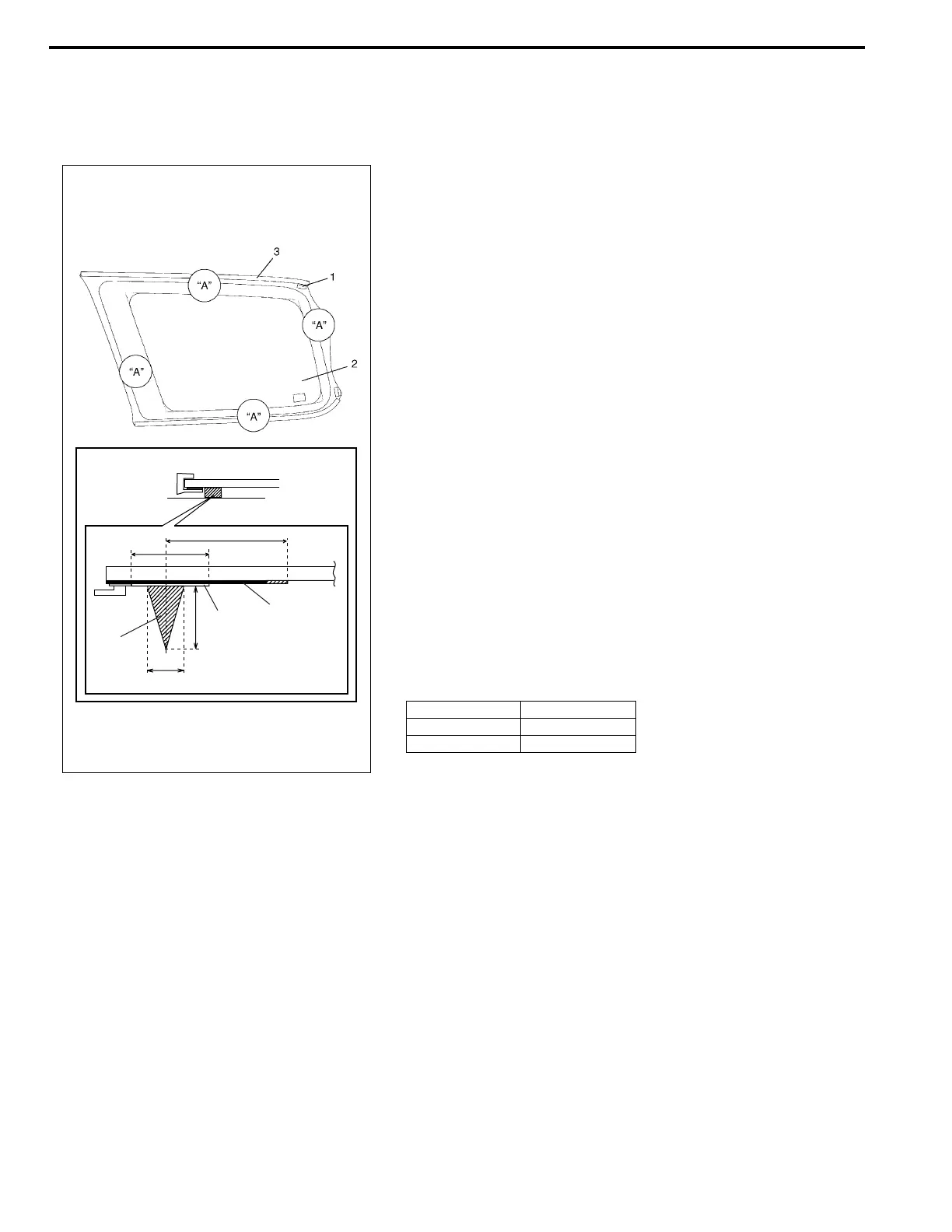

• Before applying primer to glass edge, install molding accord-
ing to installing position shown in the figure.
• Observe the following precautions when applying adhesive
along glass edge.
– Adhesive should be applied evenly especially in height.
– Be careful not to damage primer.
– Press glass against body quickly after adhesive is applied.
Adhesive amount specification (quarter window)
Height “a” : 12 mm (0.47 in.)
Width “b” : 8 mm (0.31 in.)
Width “c” : 16 mm (0.63 in.) for glass front, rear and upper
section.
Width “c” : 14 mm (0.55 in.) for glass bottom section.
Position “d” : 177 mm (6.97 in.) for left side glass front
section.
Position “d” : 75 mm (2.95 in.) for right side glass front
section.
Position “d” : 29 mm (1.15 in.) for glass rear section.
Position “d” : 39 mm (1.54 in.) for glass upper section.
Position “d” : 22 mm (0.87 in.) for glass bottom section.
1. Spacer 4. Adhesive
2. Glass 5. Primer
3. Molding 6. Ceramic print
“c”
“A”
“a”
“b”
“d”
6
5
4
To Next Page
