CRUISE CONTROL SYSTEM 8E-23
Cruise Control Actuator Assembly (with Con-
trol Module)
REMOVAL
1) Disconnect negative (–) cable at battery.

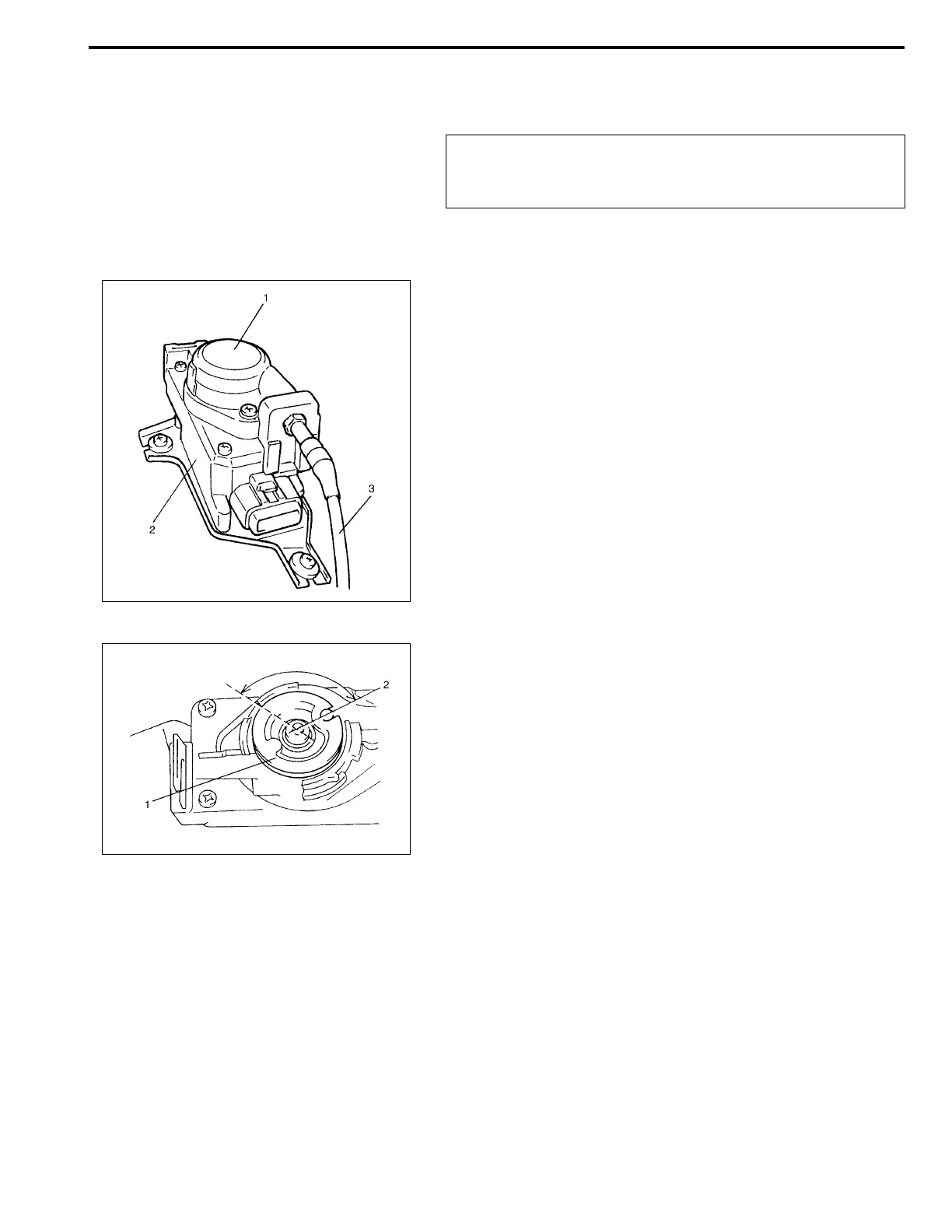

2) Disconnect connector from actuator assembly (2) (with con-
trol module).
3) Remove actuator cap (1) from actuator assembly (2).
4) Disconnect cruise cable (3) from actuator assembly (2).
5) Remove actuator assembly (2) from vehicle.
INSPECTION
Move actuator lever (1) by hand and check its operation as
described below.
1) Actuator lever (1) should not turn clockwise.
2) Actuator lever (1) should turn smoothly by about 1/3 rotation
counterclockwise and contact internal stopper.
3) When hand is taken off from actuator lever (1) at the position
in 2) above, it should return to its original position (2) by
return spring force. If actuator lever (1) does not operate as
described above, replace it.
INSTALLATION
Install actuator assembly by reversing removal procedure, noting
the following point.
• Adjust cruise cable play to specification referring to “CRUISE
CABLE PLAY INSPECTION AND ADJUSTMENT” in this
section.
CAUTION:
Never disassemble cruise control actuator assembly.
Disassembly will spoil its original function.
