8E-16 CRUISE CONTROL SYSTEM
Overdrive and TCC off Command Signal Circuit Check

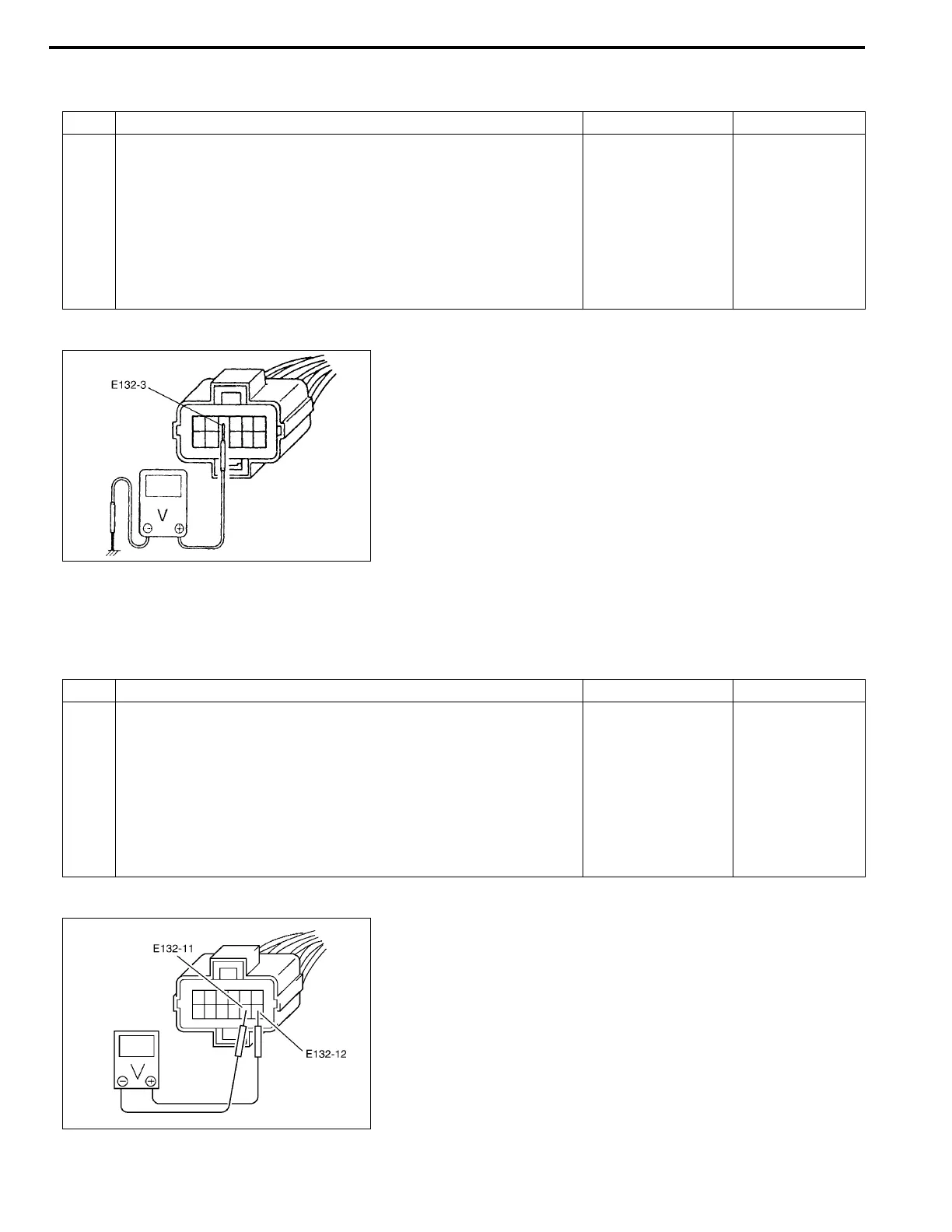

Fig. for Step 1
Cruise Control Module Power and Ground Circuits Check
Fig. for Step 1
Step Action Yes No
1 Overdrive off Command Signal Circuit Check
1) Disconnect connector from cruise control module with
ignition switch OFF.
2) Check for proper connection to cruise control module at
terminal E132-3.
3) If OK, turn ignition switch ON.
4) Check voltage between terminal E132-3 and ground.
Is it 10 –14 V?
This signal circuit is
OK.
Check “PNK/
BLU” wire for
open and short.
If OK, substitute
a known-good
PCM and
recheck.
Step Action Yes No
1 Power and Ground Circuits Check
1) Disconnect connector from cruise control module with
ignition switch OFF.
2) Check for proper connection to cruise control module at
terminals E132-12 and E132-11.
3) If OK, turn ignition switch ON.
4) Check voltage between terminals E132-12 and E132-11.
Does voltmeter indicate 10 – 14 V?
Power and ground
circuits are OK.
“BLU/BLK” or
“BLK” circuit is
open.
To Next Page
