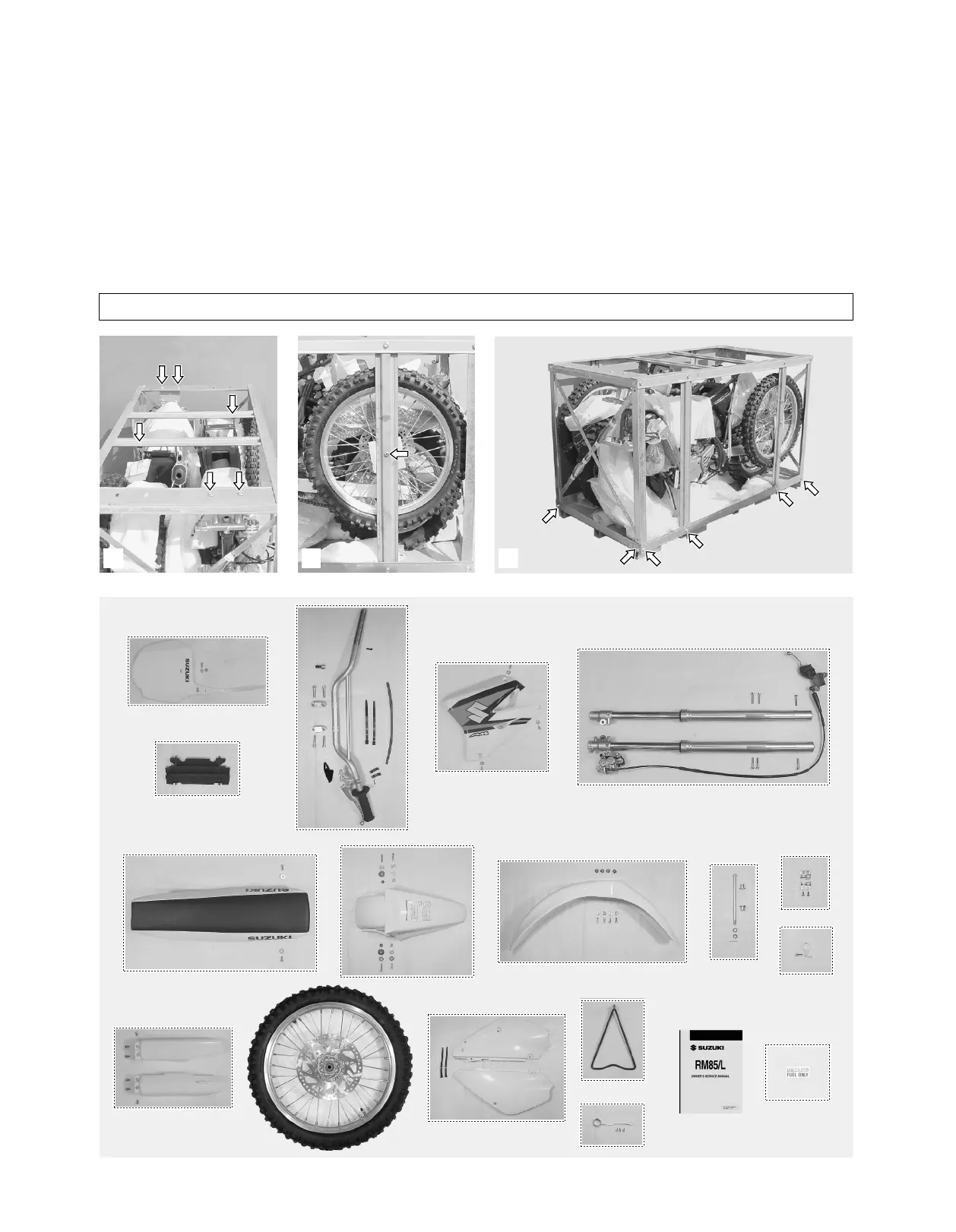

LOCATION OF PARTS
Carefully remove the various component parts packaged around the motorcycle.
Check off each of the components as shown in the photograph.
Two complete sets are required for units packed two par crate.
1. Remove the carton, then remove the bolts of the motorcycle holding bracket.
2. Remove the bolt, washer, plate and nut of the front wheel.
3. Remove the bolts from the crate, then lift the steel frame to separate it from the base of the crate.
Check all the components which have been removed from the base of the crate.
î
Keep the position of front brake master cylinder with their caps facing upward until they are installed.
1 3
2
AA
CC
DD
EE
FF
GG
HH
M
II
BB
JJ
KK
L
N
O
P
L
M
N
O
P
RR
QQ
