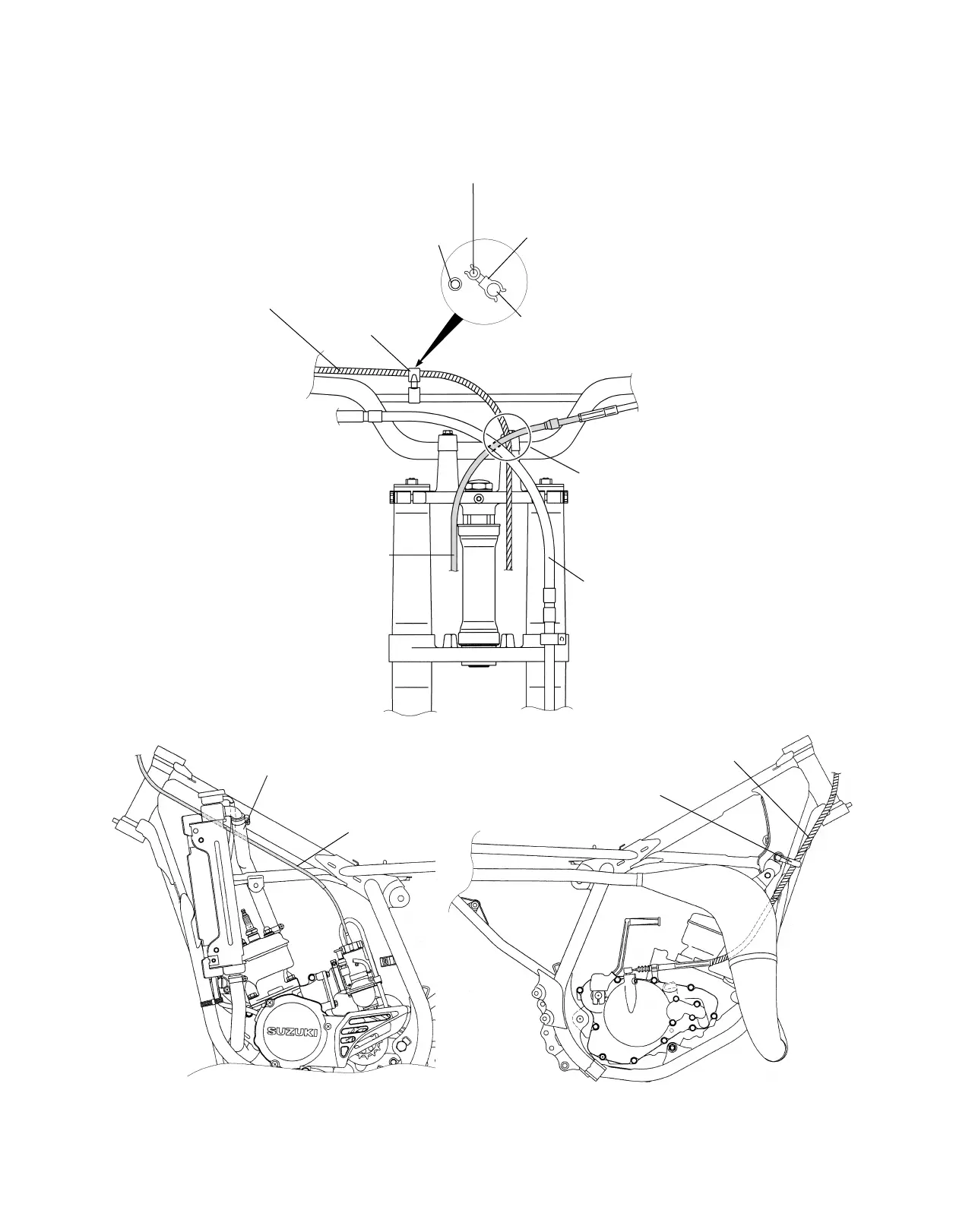

CABLE ROUTING
Radiator hose
Cross the throttle cable and clutch cable above
the number plate mounting boss.
Handlebars
Clutch cable
Clamp
Throttle cable
Clamp
Throttle cable
Brake hose
Throttle cable
Clamp
Brake hose
Clutch cable
