Suzuki RM85/LK5 User Manual

2

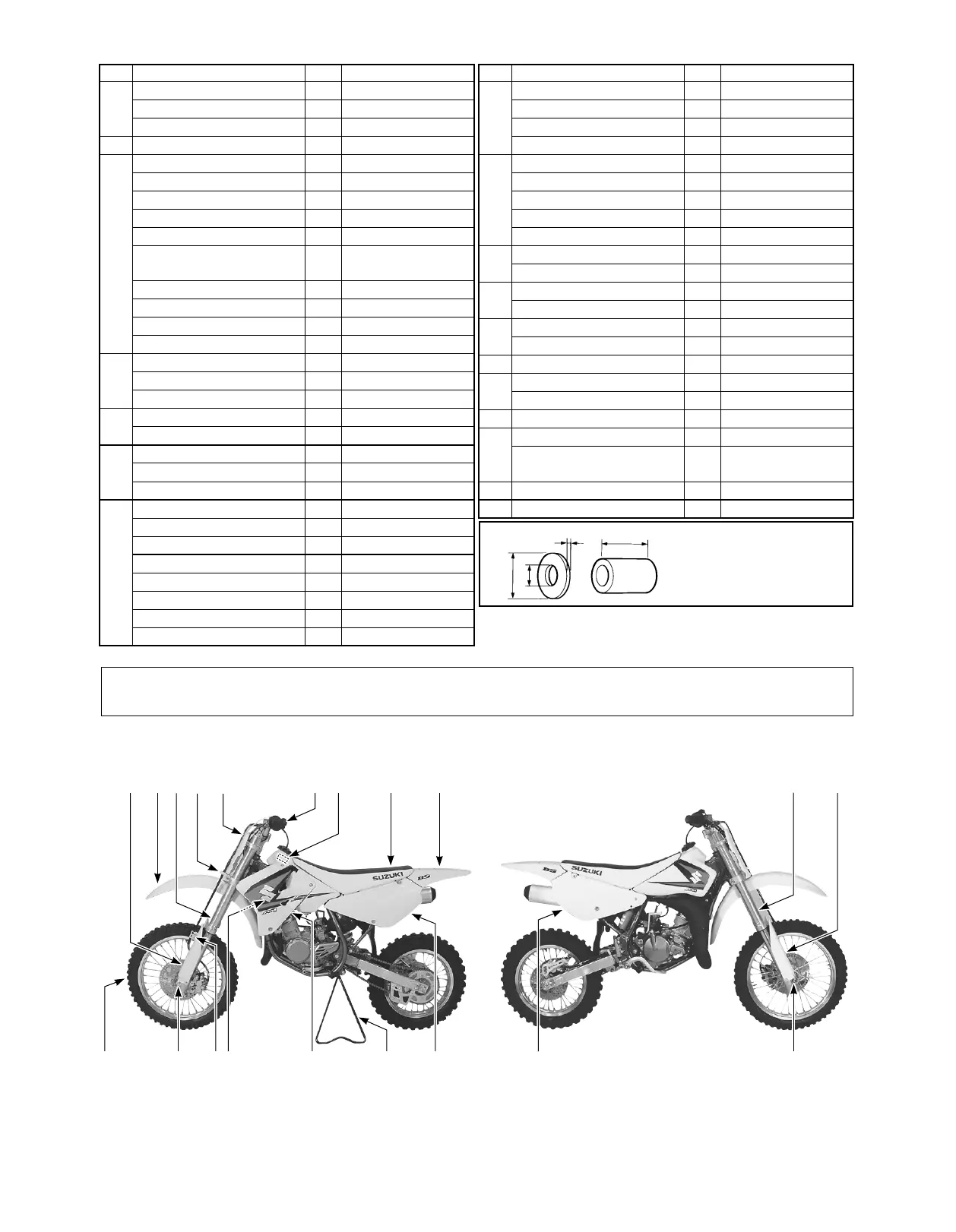

Parts listed above are installed respectively into the positions as follows.
Item Part Name Q’ty Remarks
A
Number plate 1
Flange bolt 1 6 × 20 mm
Washer 1 OD:14.0 ID:6.5
B Radiator louver 1
C
Handlebars assembly 1
Clamp 2
Flange bolt 4 8 × 35 mm
Clutch lever cover 1
Fuel tank vent hose 1
Screw 1
5 × 16 mm
For throttle assembly
Clamp 1 For throttle cable
Strap 2 L:120
Engine stop switch holder 2 Upper and lower
Screw (with lock washer) 1 3 × 14 mm
D
Radiator cover 1
Flange bolt 3 6 × 12 mm
Stepped washer 3 OD:16.0 ID:6.5 T:3.5
E
Front fork assembly 2 Right and Left
Flange bolt 6 8 × 40 mm
F
Seat assembly 1
Flange bolt 2 6 × 16 mm
Washer 2 OD:20.0 ID:6.5 T:1.6
G
Rear fender 1
Washer 2 OD:26.0 ID:6.5
Flange bolt 3 6 × 30 mm
Washer 4 OD:20.0 ID:6.5 T:1.2
Self-lock nut 2 6 mm
Flange bolt 1 6 × 20 mm
Washer 2 OD:18.0 ID:6.5 T:1.6
Flange self-lock nut 2 6 mm (Black)
Item Part Name Q’ty Remarks
H
Front fender 1
Flange bolt 4 6 × 20 mm
Stepped washer 4 OD:16.0 ID:6.5 T:3.5
Stepped washer 4 OD:17.0 ID:6.5 T:7.0
I
Front axle 1
Front wheel spacer 2
Washer 1 OD:20.0 ID:12.5
Axle nut 1 12 mm
Cotter pin 1 L:27.0
J
Front brake hose clip 2 Inner and Outer
Flange bolt 2 6 × 16 mm
K
Front brake hose guide 1
Flange bolt 1 6 × 20 mm
L
Front fork protector 2 Right and Left
Flange bolt 6 6 × 10 mm
M Front wheel assembly 1
N
Frame cover 2 Right and Left
Strap 2 L:140
OStand 1
P
Main jet 3 Exchanging parts
Spark plug and spoke
nipple wrench
1
Q Owner’s manual 1
R Fuel label 1 For limited market
OD : Outside diameter (mm)
ID : Inside diameter (mm)
L : Length (mm)
T : Thickness (mm)
T
L
OD
ID
NOTE:
The parts shown as Item R in the above table are supplied for limited markets.
N
EL
I
A C
ID
R
FGKEHL
BJMO
N
